Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Information Bus >> Controller Area Network (A/T)

Controller Area Network (A/T)

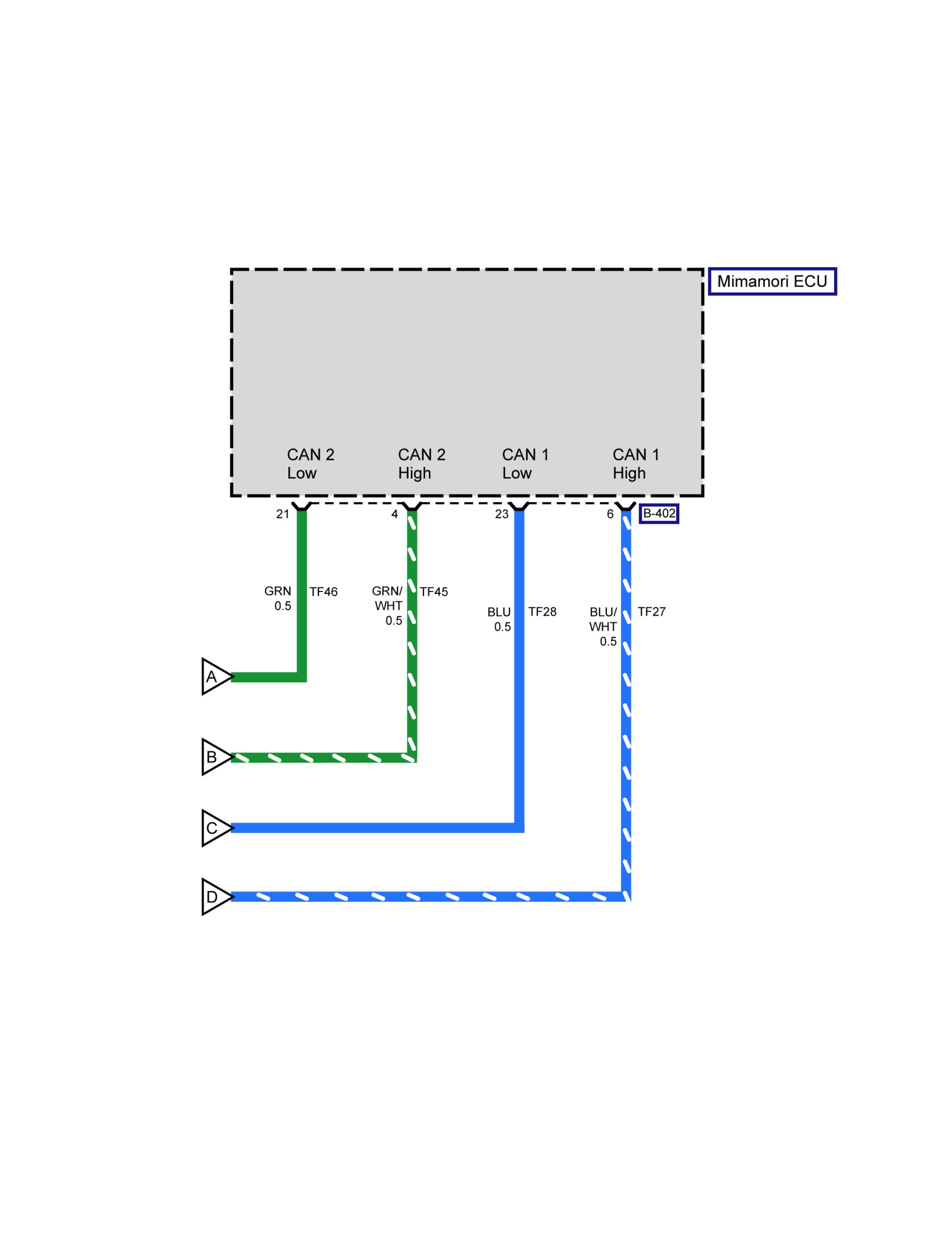

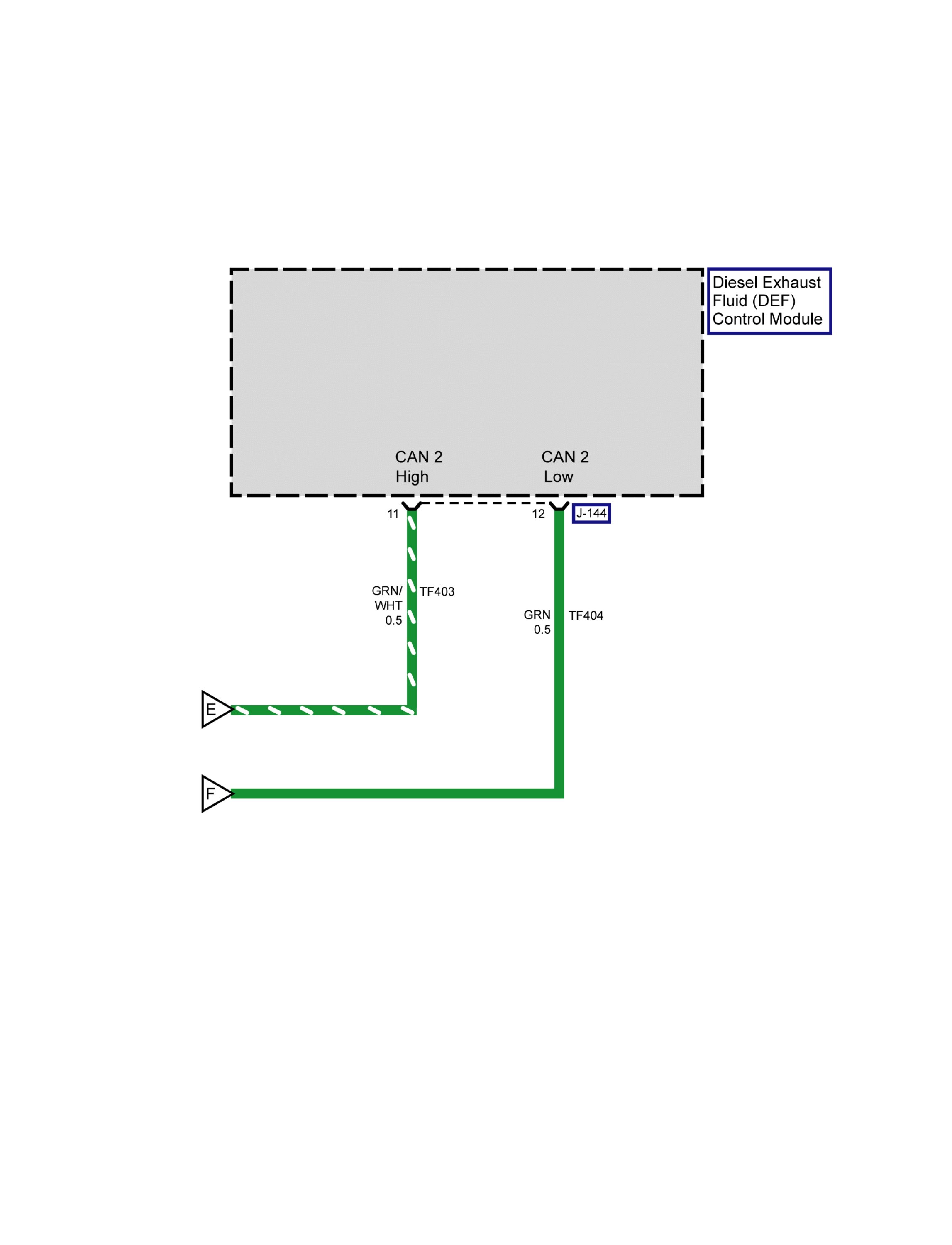

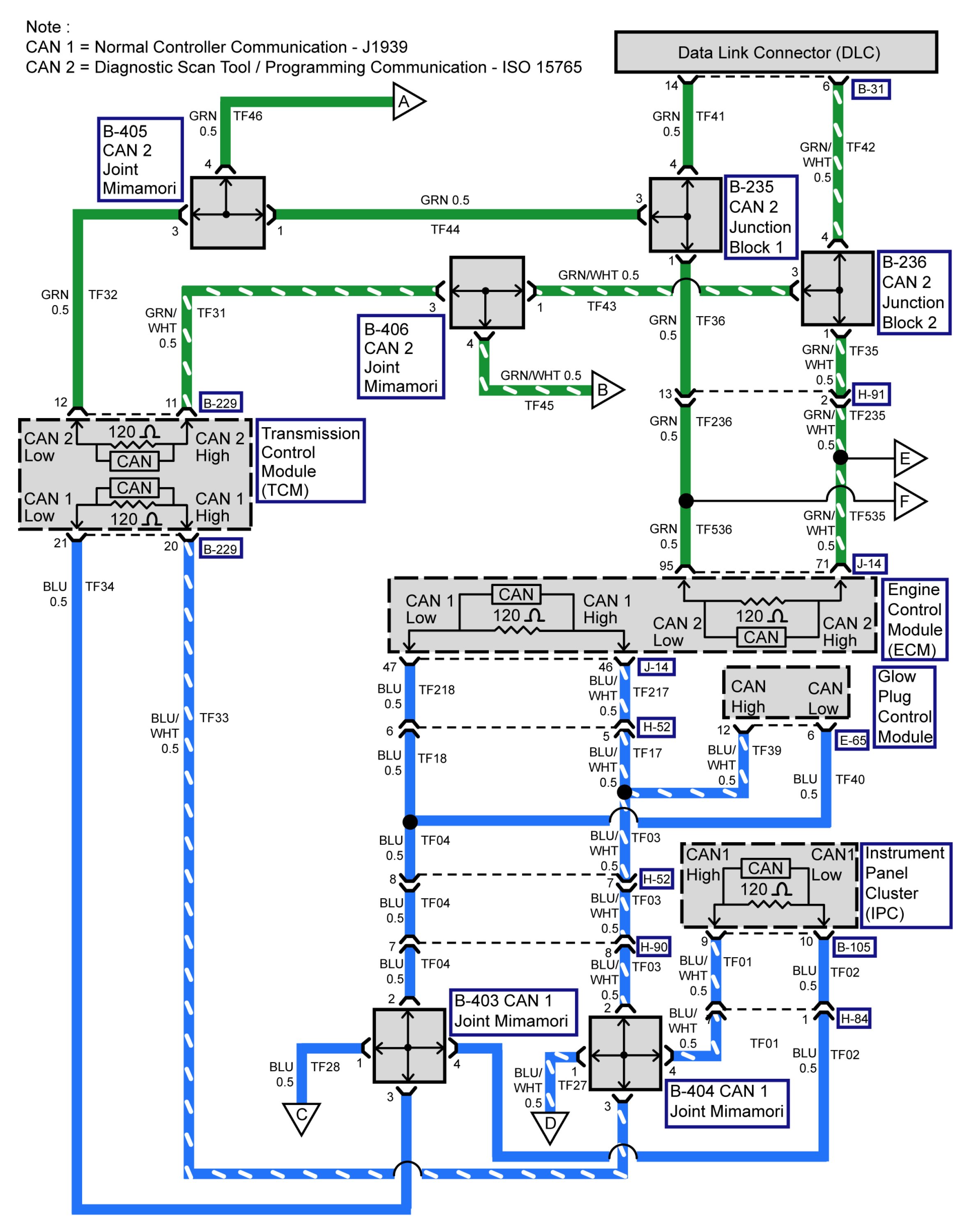

Controller Area Network (A/T) 3.0L 1 of 3
