Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Controls >> Fuel Injectors 1 and 4

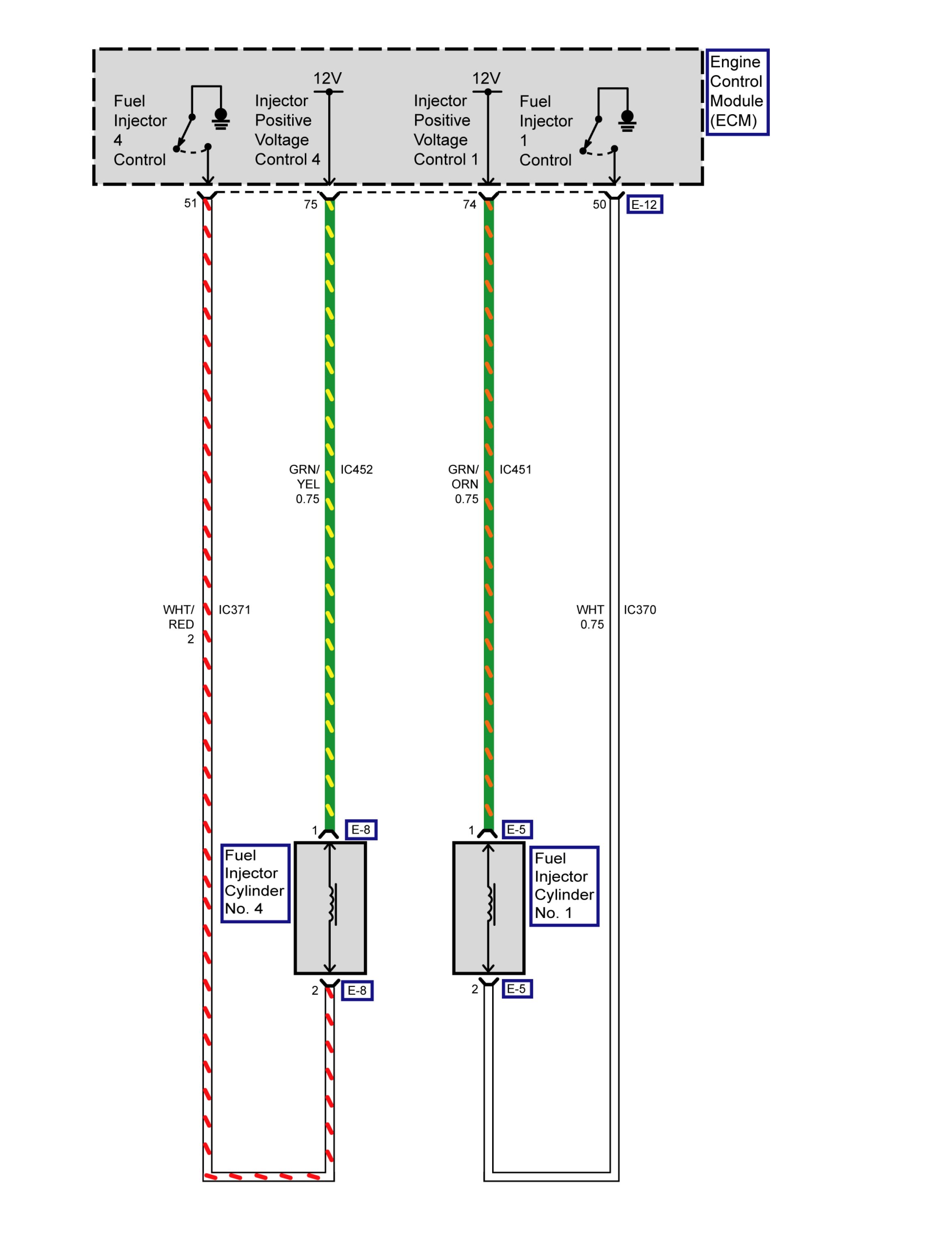

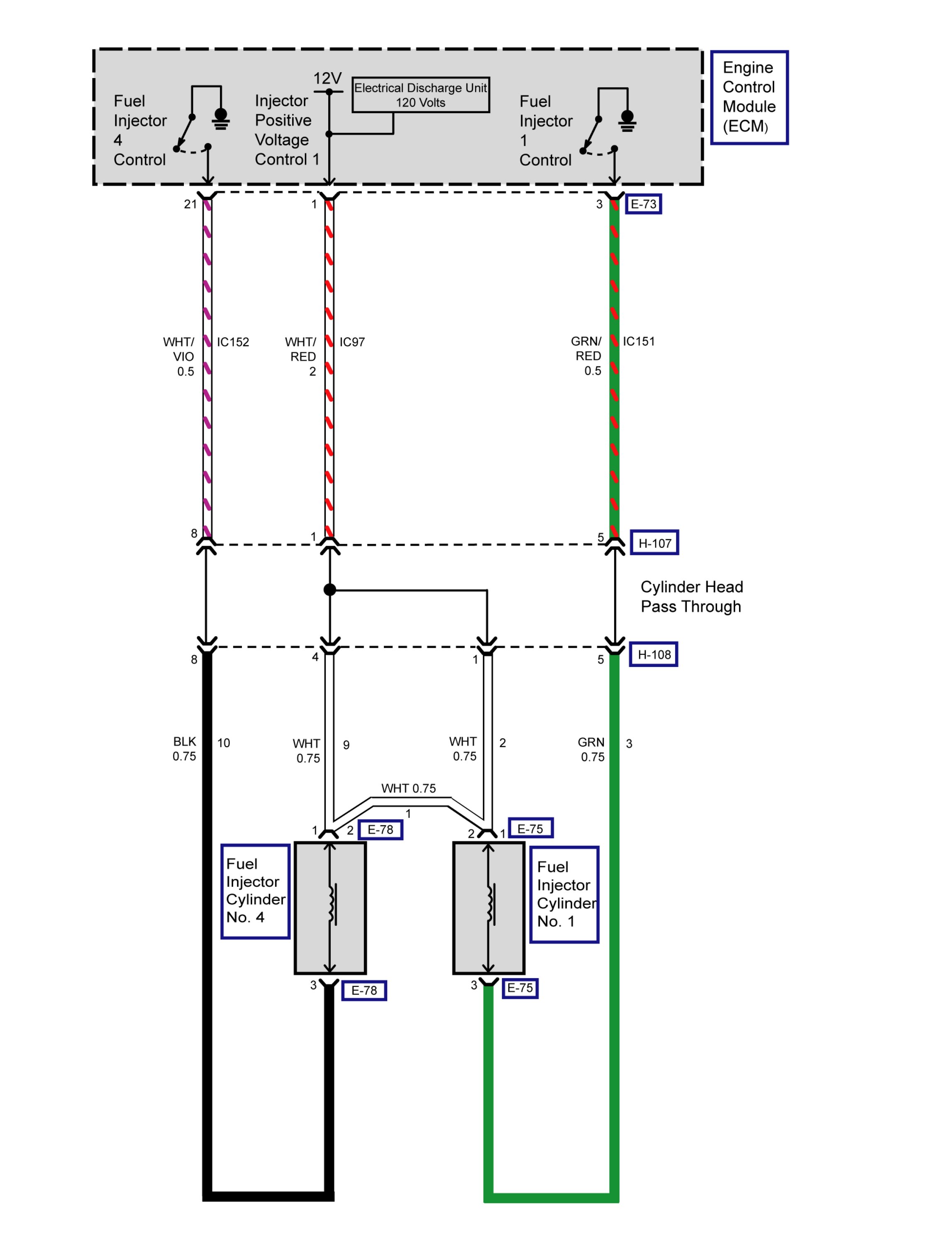

Fuel Injectors 1 and 4

Fuel Injectors 1 and 4
