Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Take-Off
>>
Power Take-Off System
>>

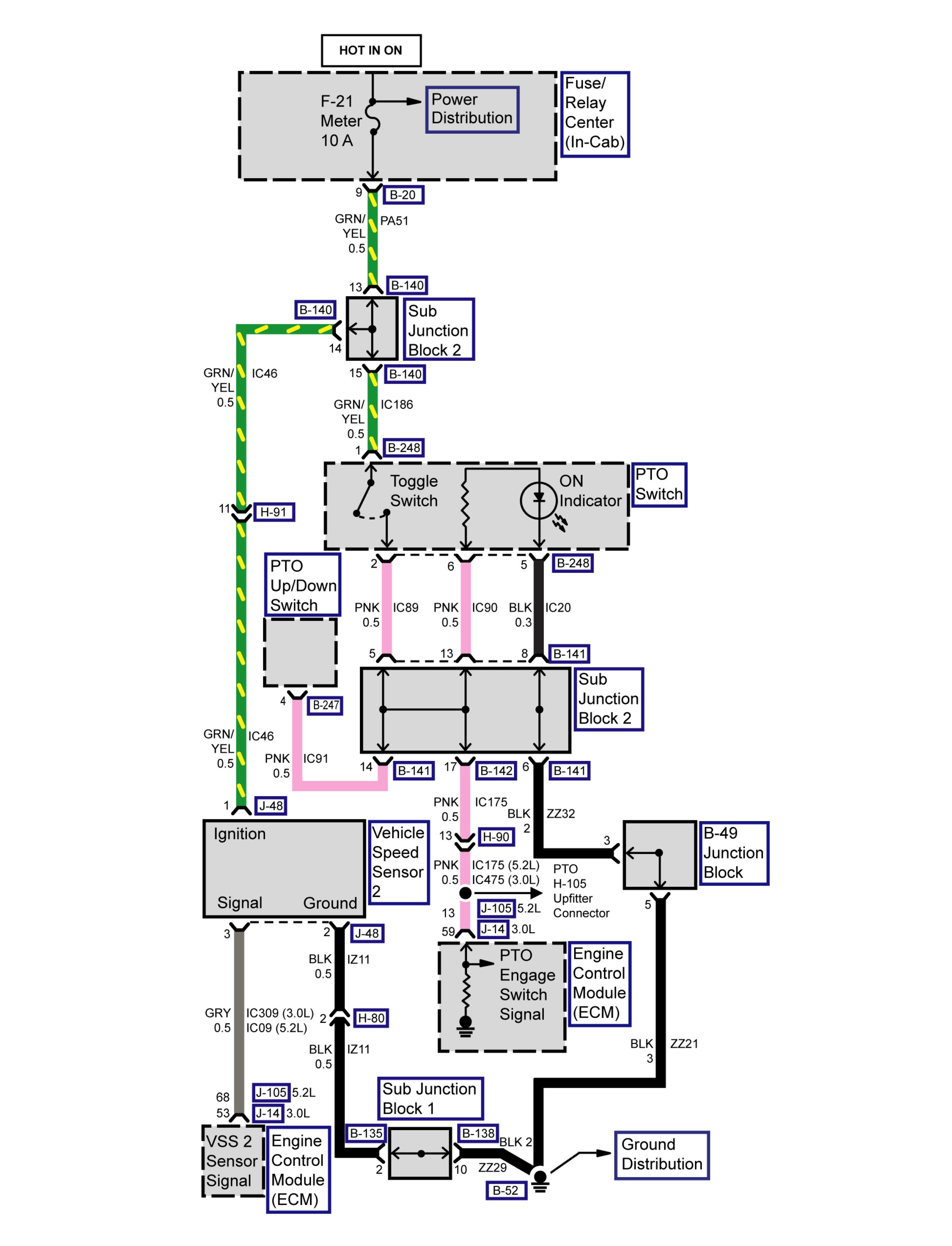

Power Take-Off Switch and Vehicle Speed Sensor 2 (A/T)
Power Take-Off Switch and Vehicle Speed Sensor 2 (A/T)
Power Take-Off Switch and Vehicle Speed Sensor 2 (A/T)
