Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Take-Off >> Power Take-Off Controls >> Resume, PTO Diasble and Set Switch

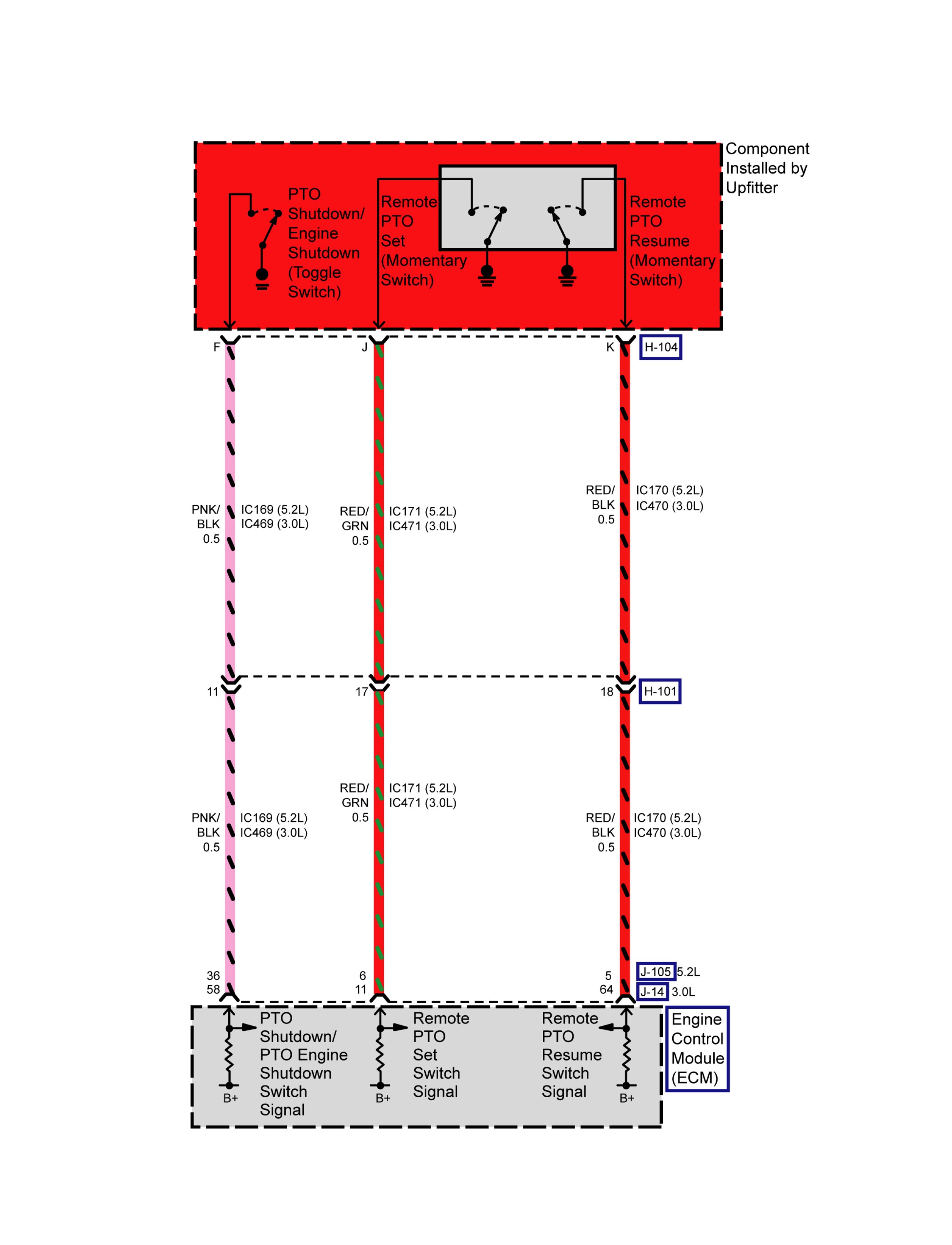

Resume, PTO Diasble and Set Switch

Resume, PTO Diasble and Set Switch
