Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Indicators >> Malfunction Indicator Lamp and Glow Plug

Malfunction Indicator Lamp and Glow Plug

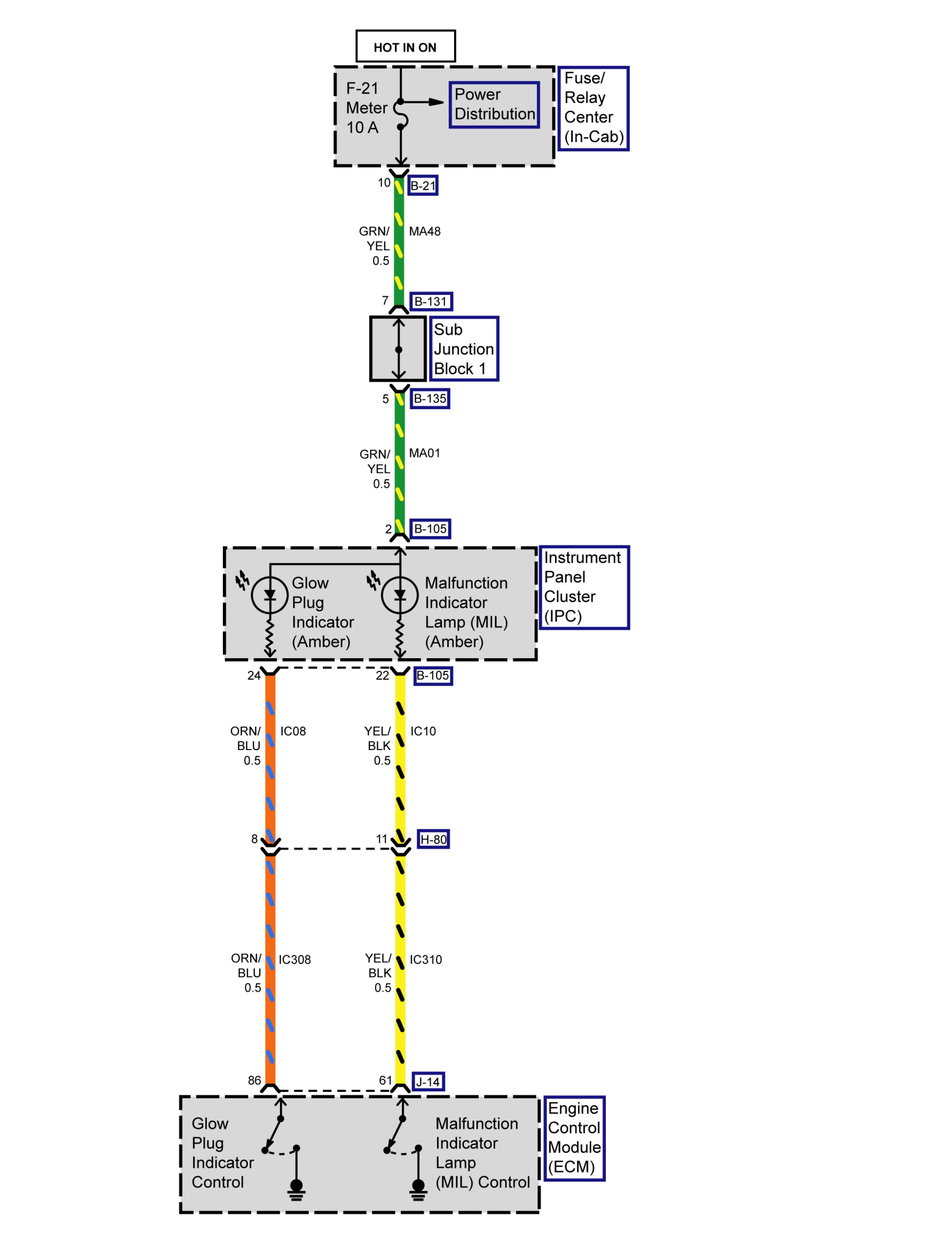

Malfunction Indicator Lamp and Glow Plug (3.0L)
