Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Indicators >> Check Transmission and Transmission Fluid Overtemperature

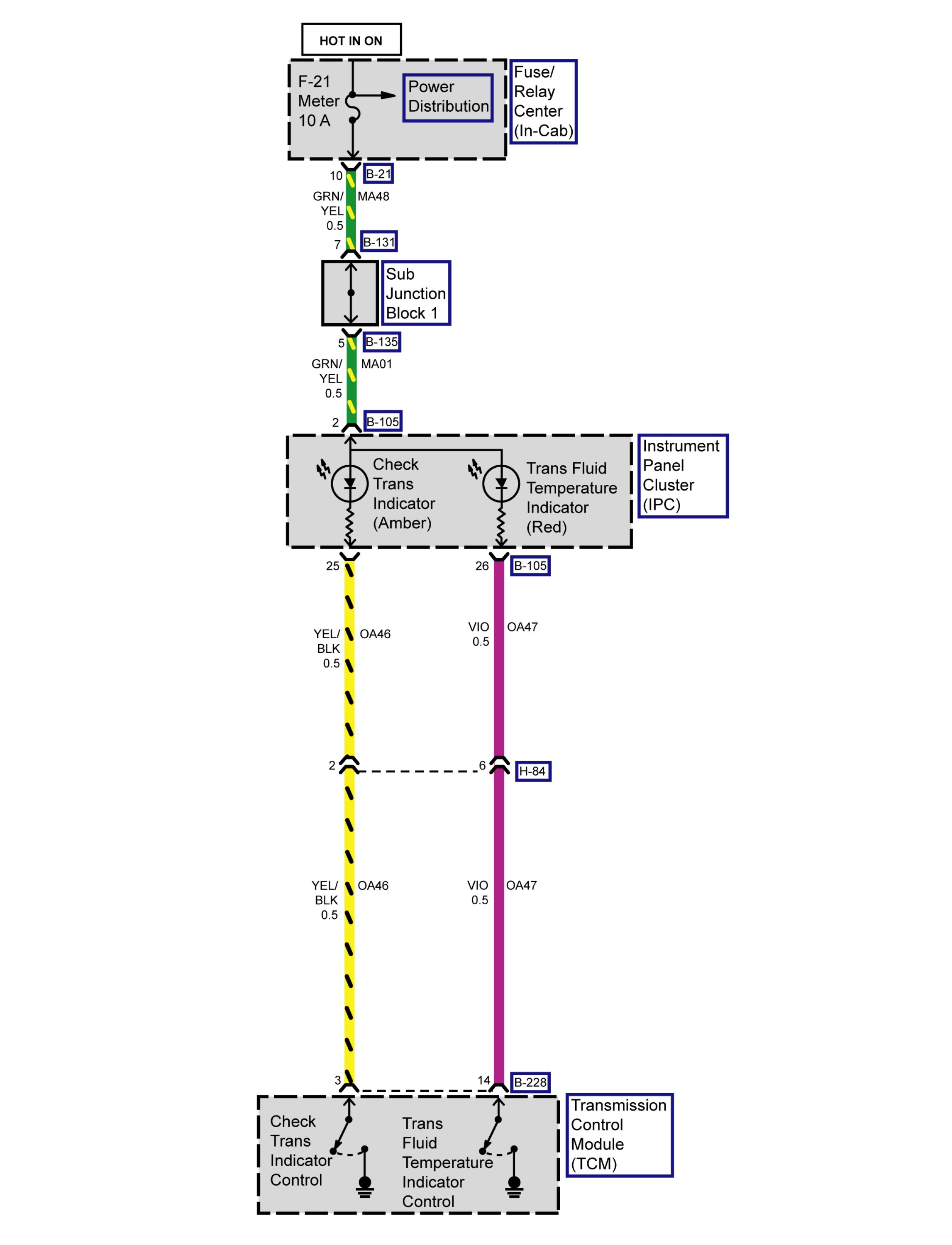

Check Transmission and Transmission Fluid Overtemperature

Check Transmission and Transmission Fluid Overtemperature
