Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>

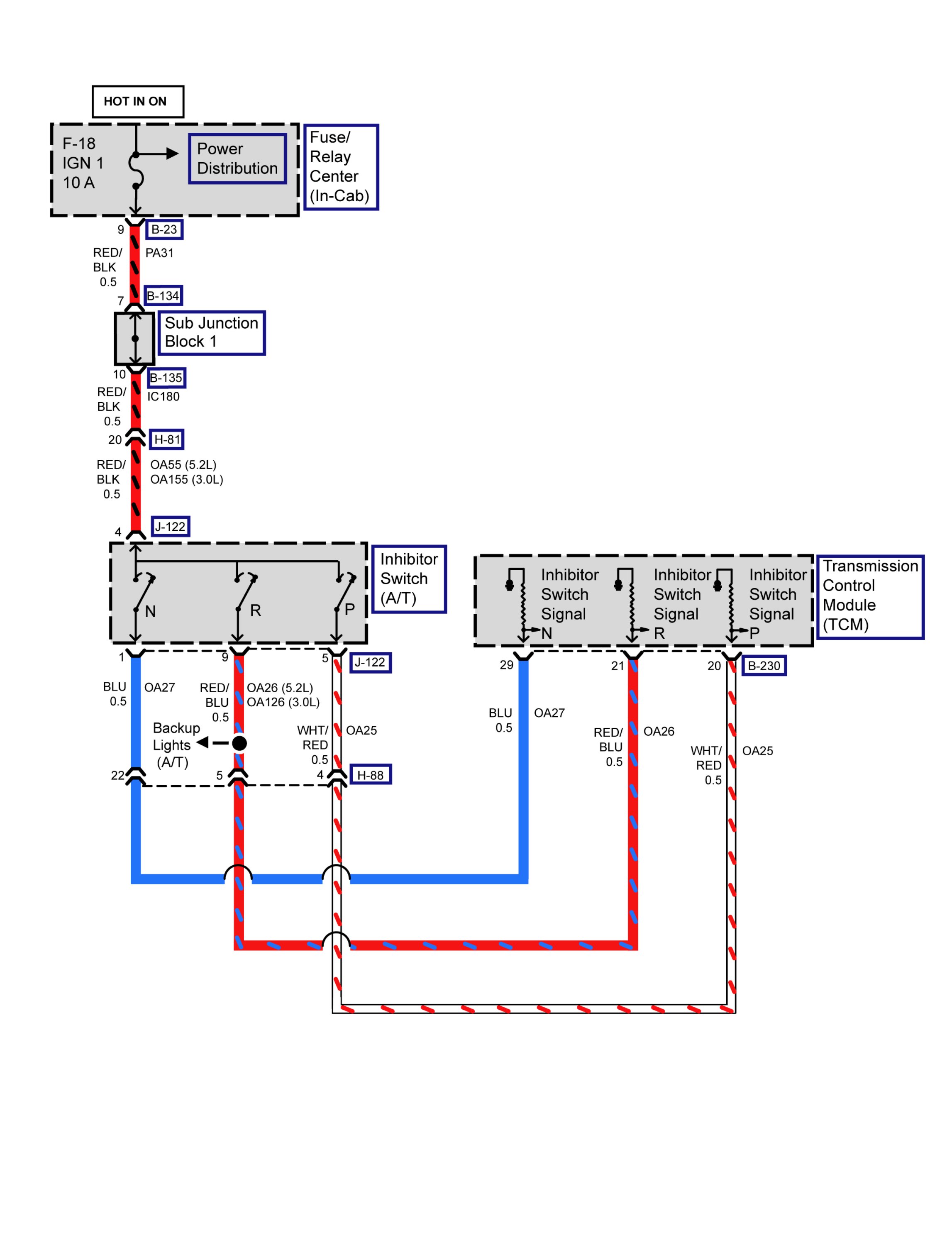

Park, Reverse, and Neutral Inhibitor Switch Signal
Park, Reverse, and Neutral Inhibitor Switch Signal
Park, Reverse, and Neutral Inhibitor Switch Signal
