X-26

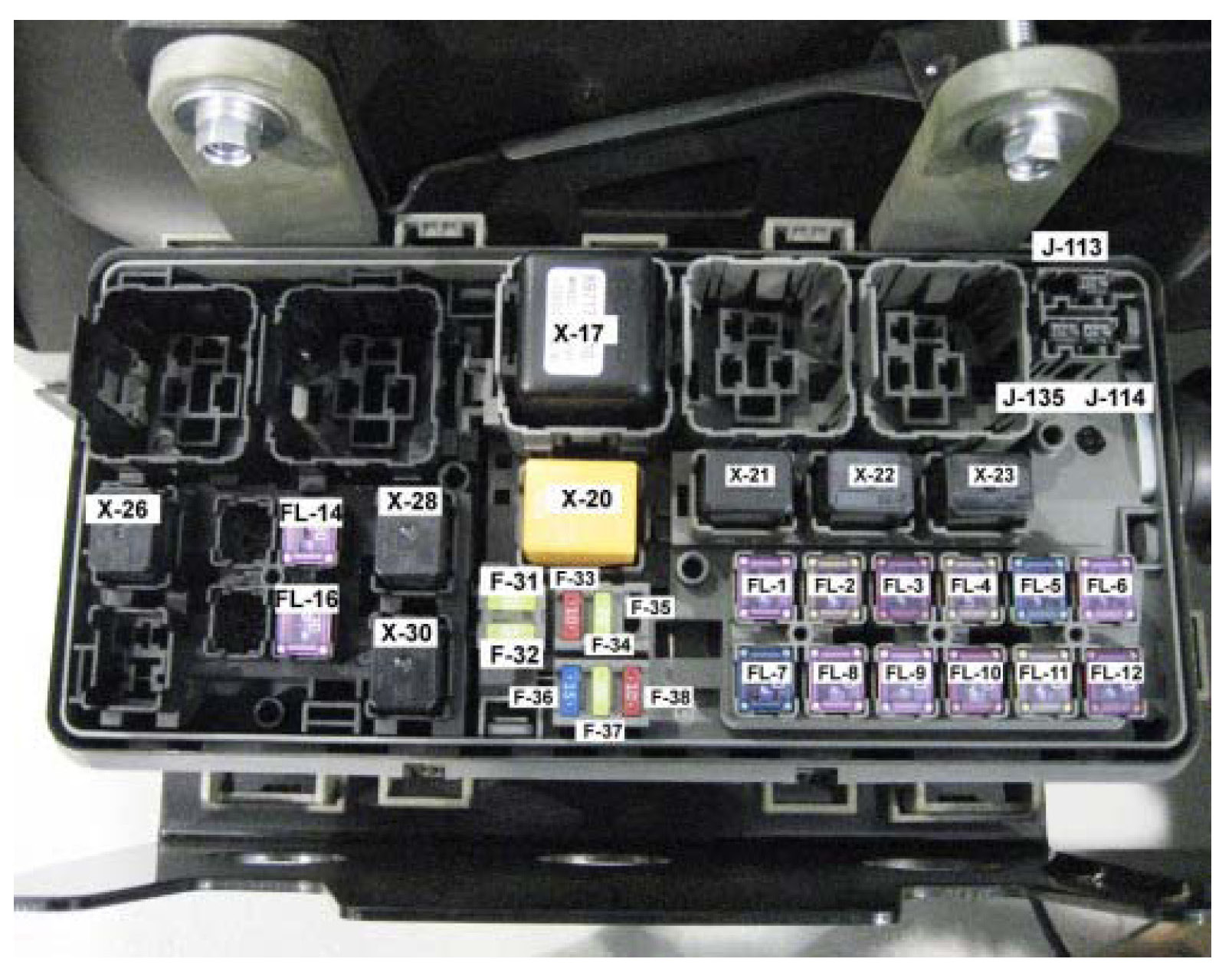

X-26 Marker Light Relay

Left Outer Frame Rail, In the Fuse/Relay Center

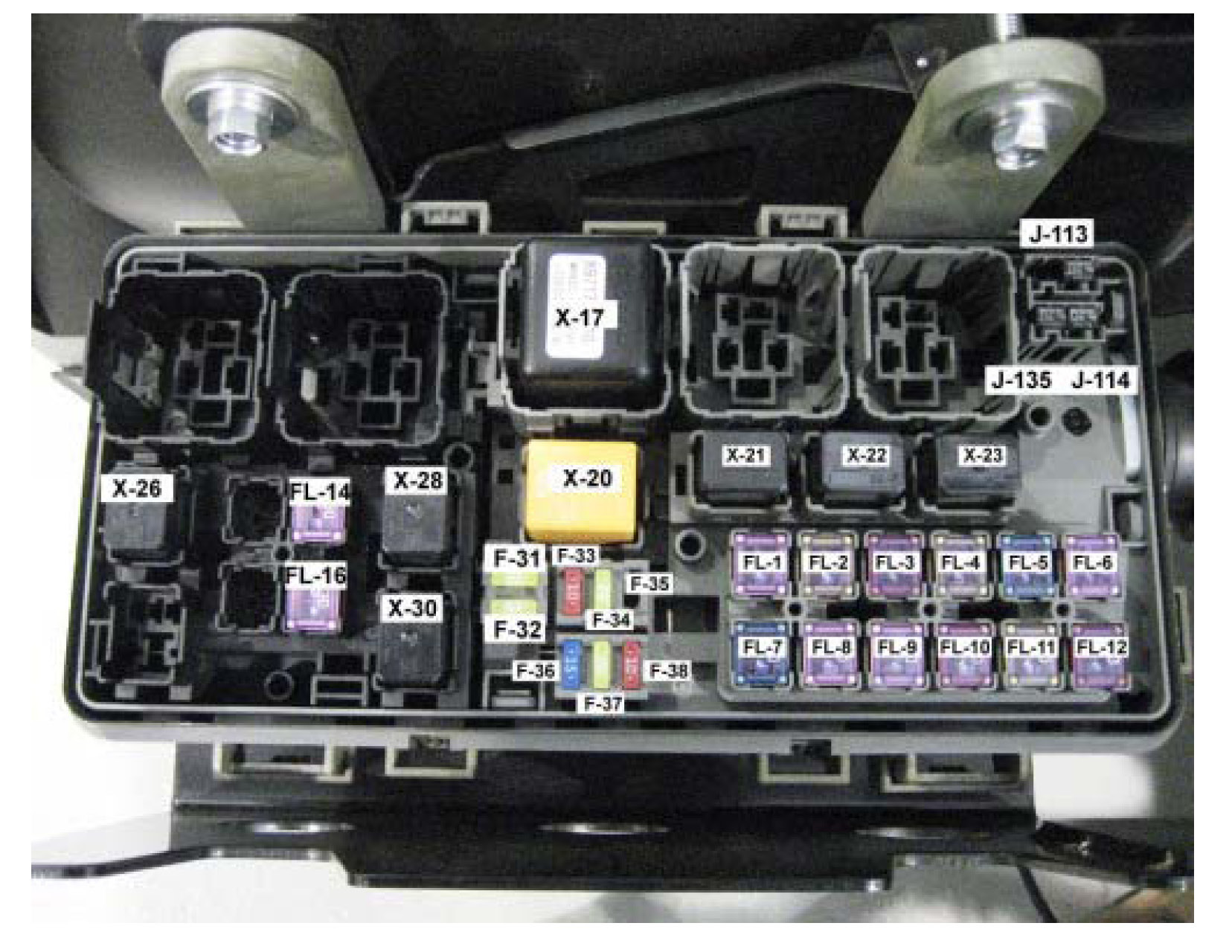

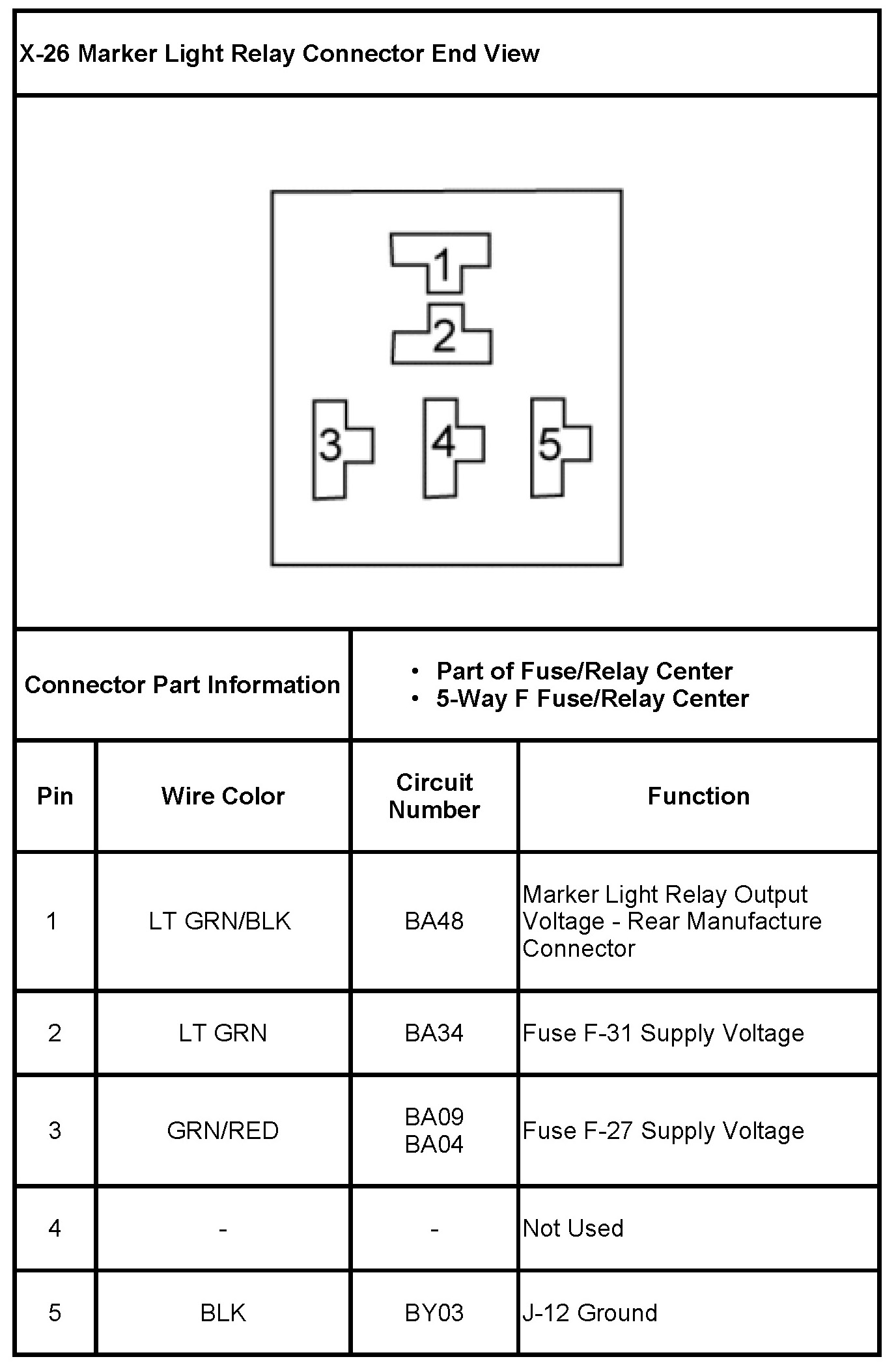

Marker Light Relay (X-26)

Left Outer Frame Rail, In the Fuse/Relay Center
