X-23
X-23

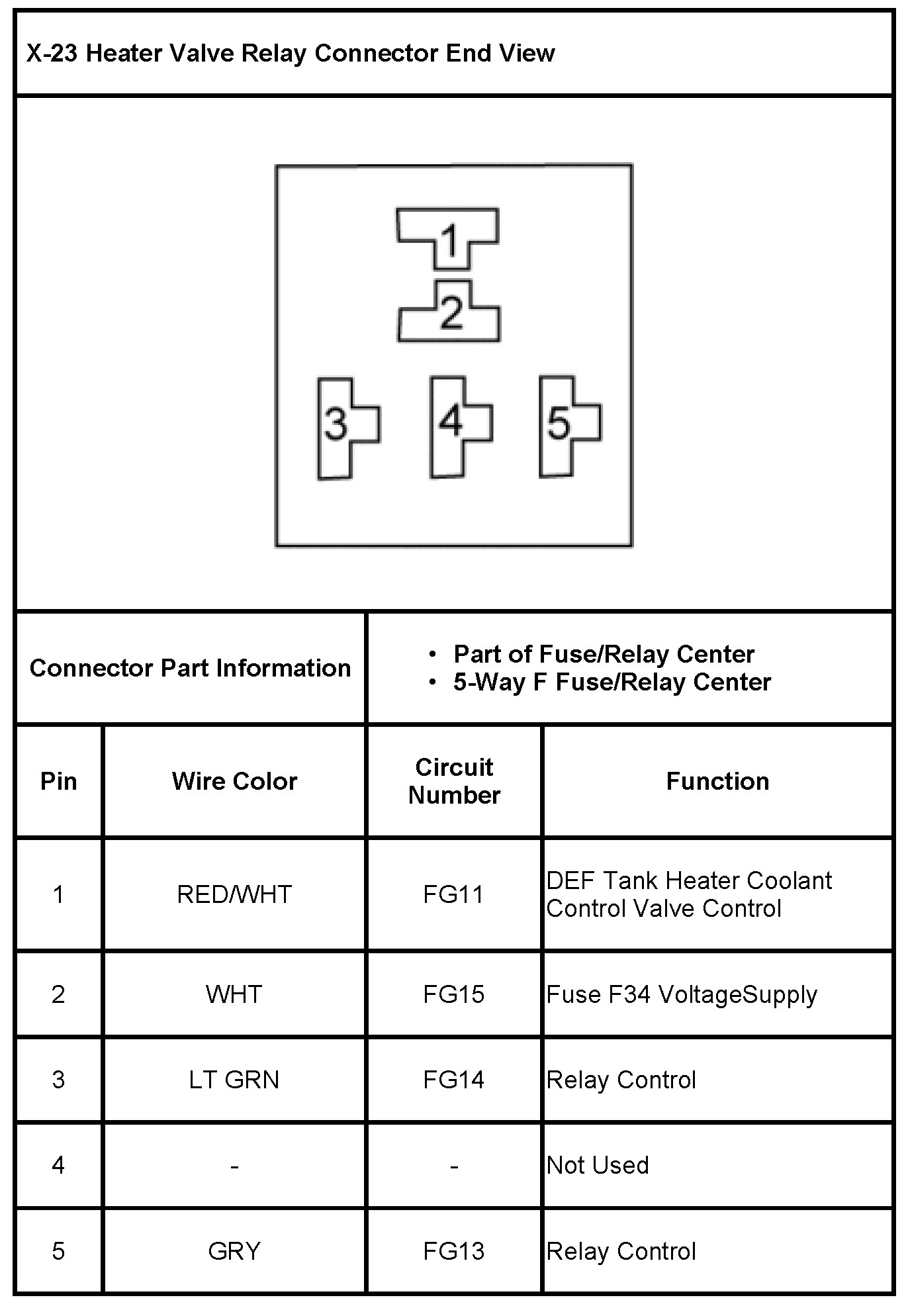

X-23 Heater Valve Relay (SCR)
Heater Valve Relay (SCR) (X-23)

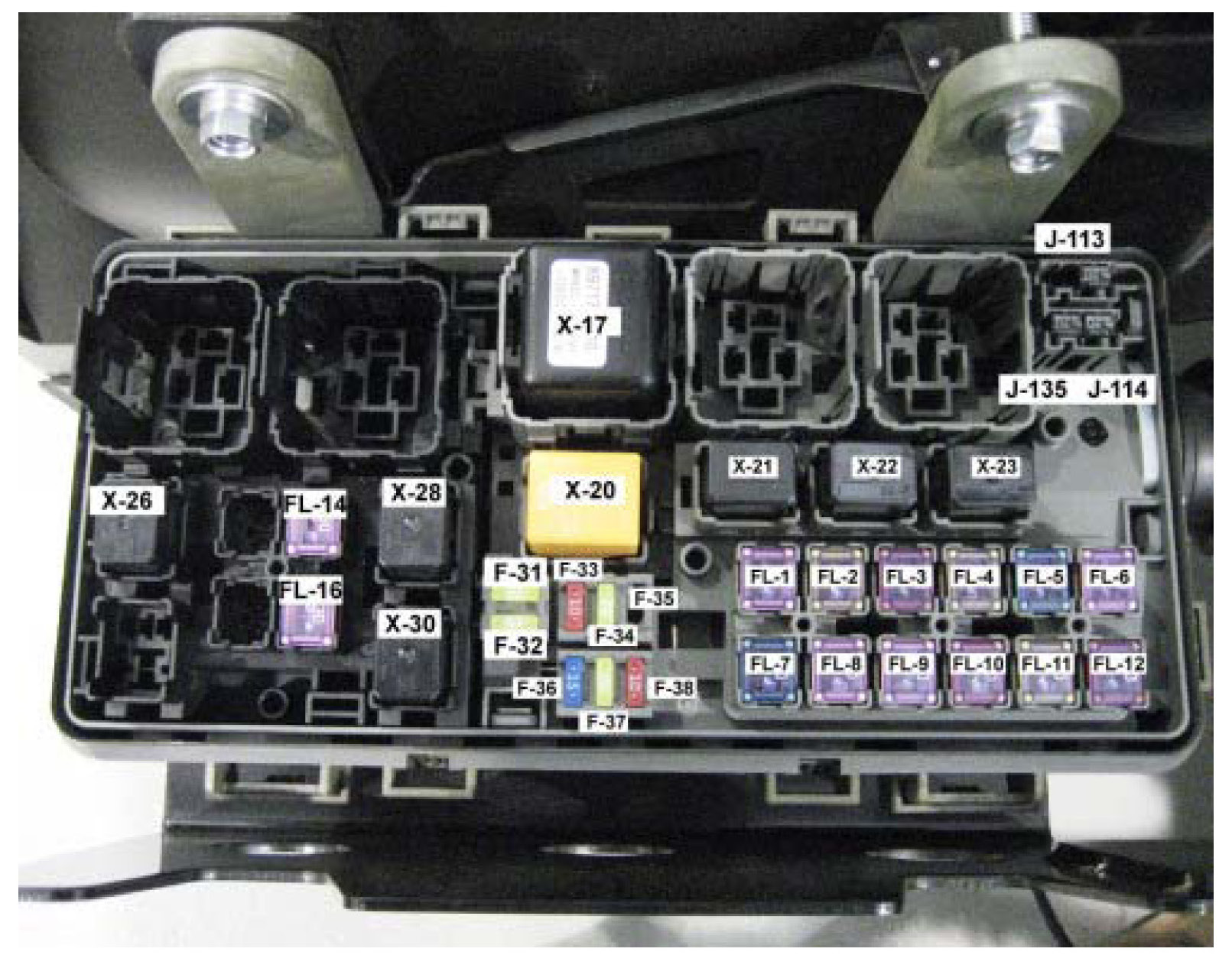

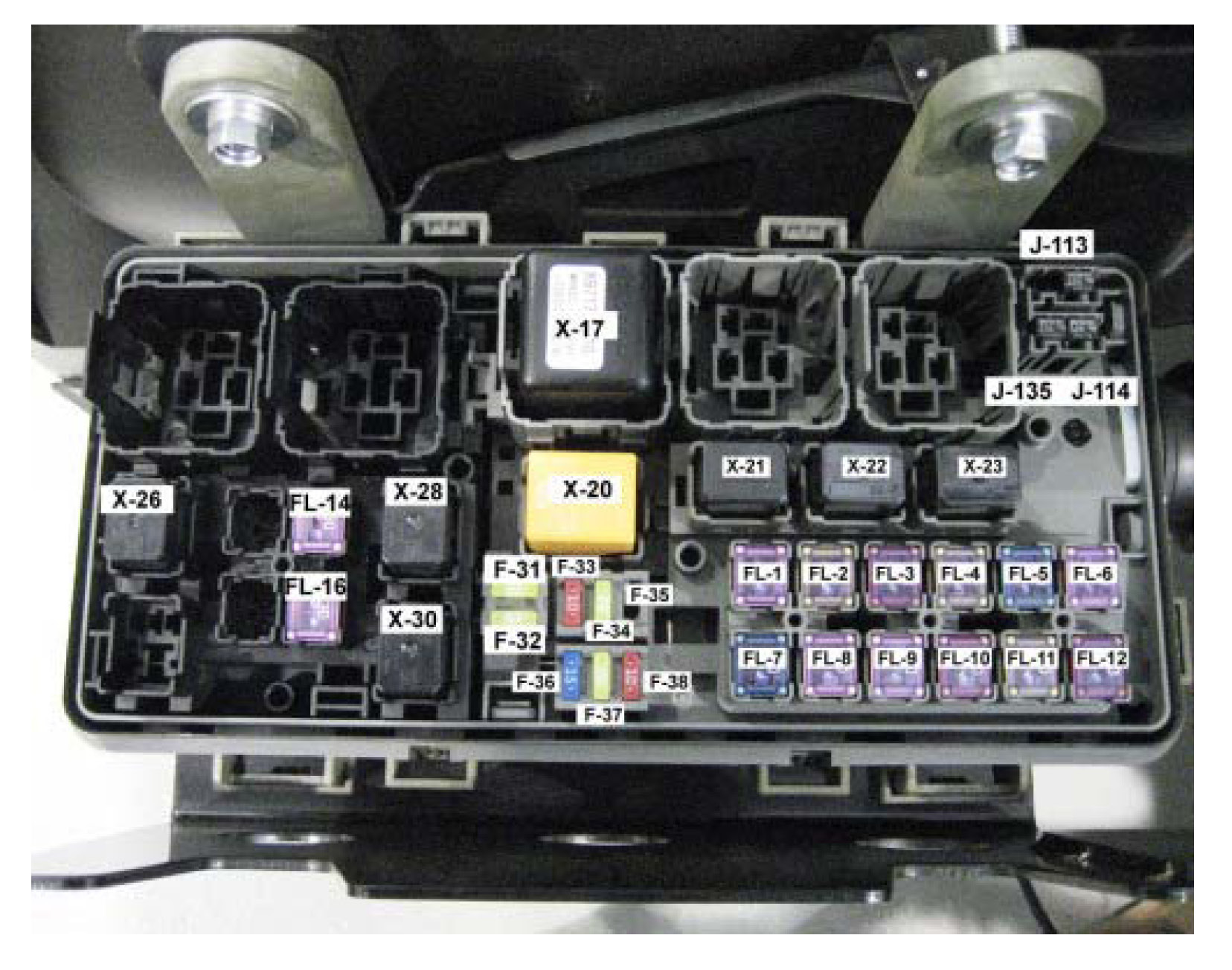

Left Outer Frame Rail, in the Fuse/Relay Center
