X-21

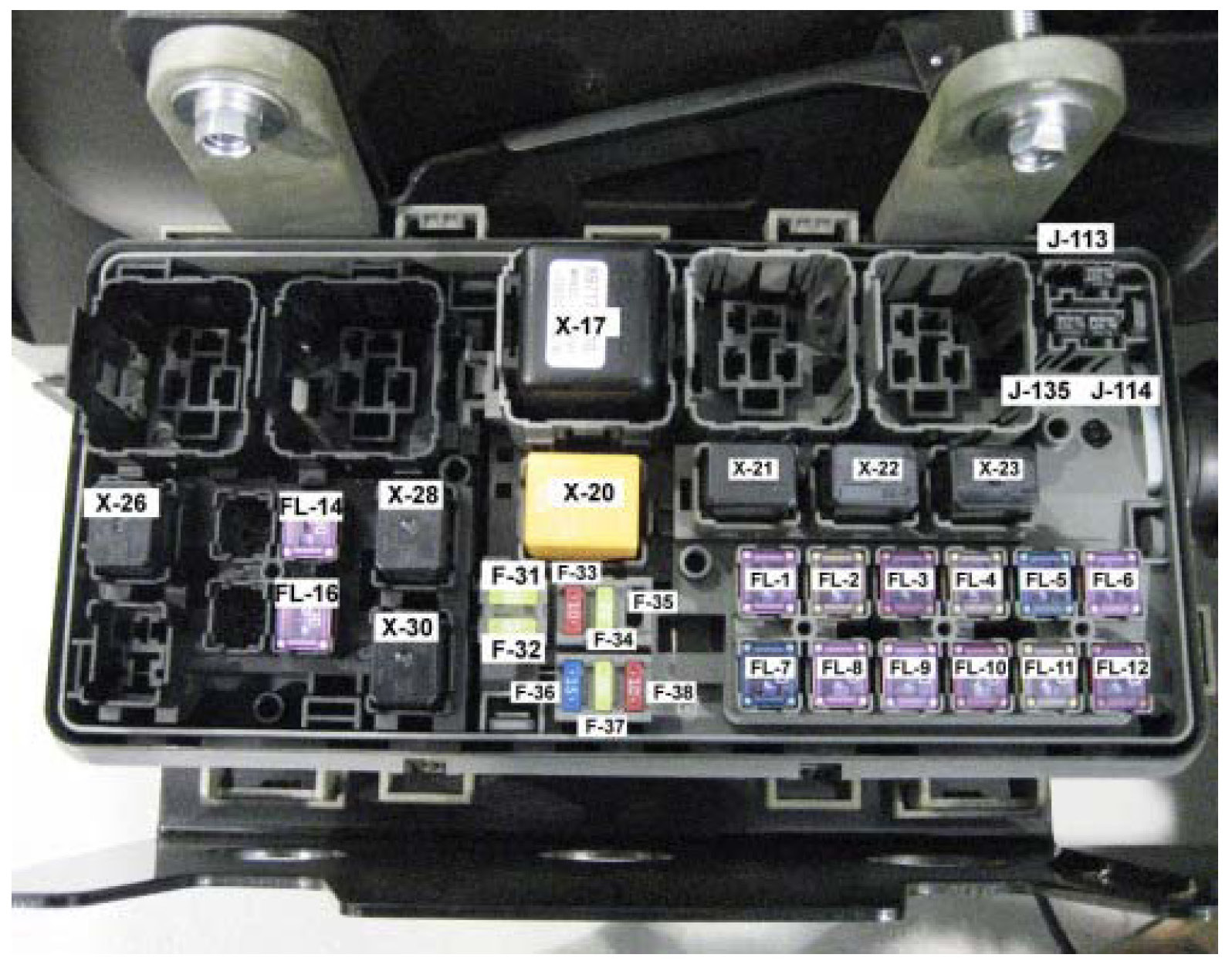

X-21 Condenser Fan Relay







Left Outer Frame Rail, In the Fuse/Relay Center

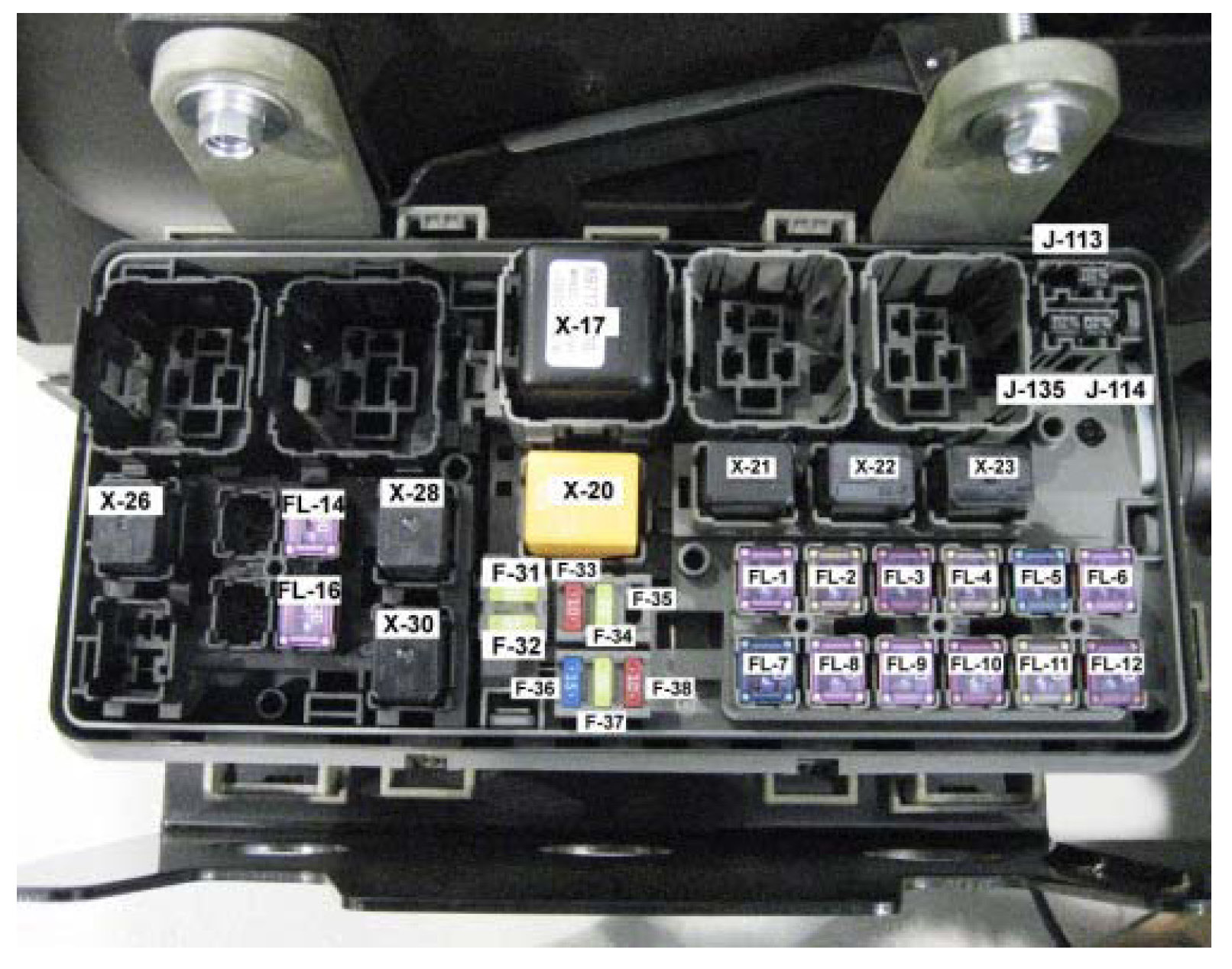

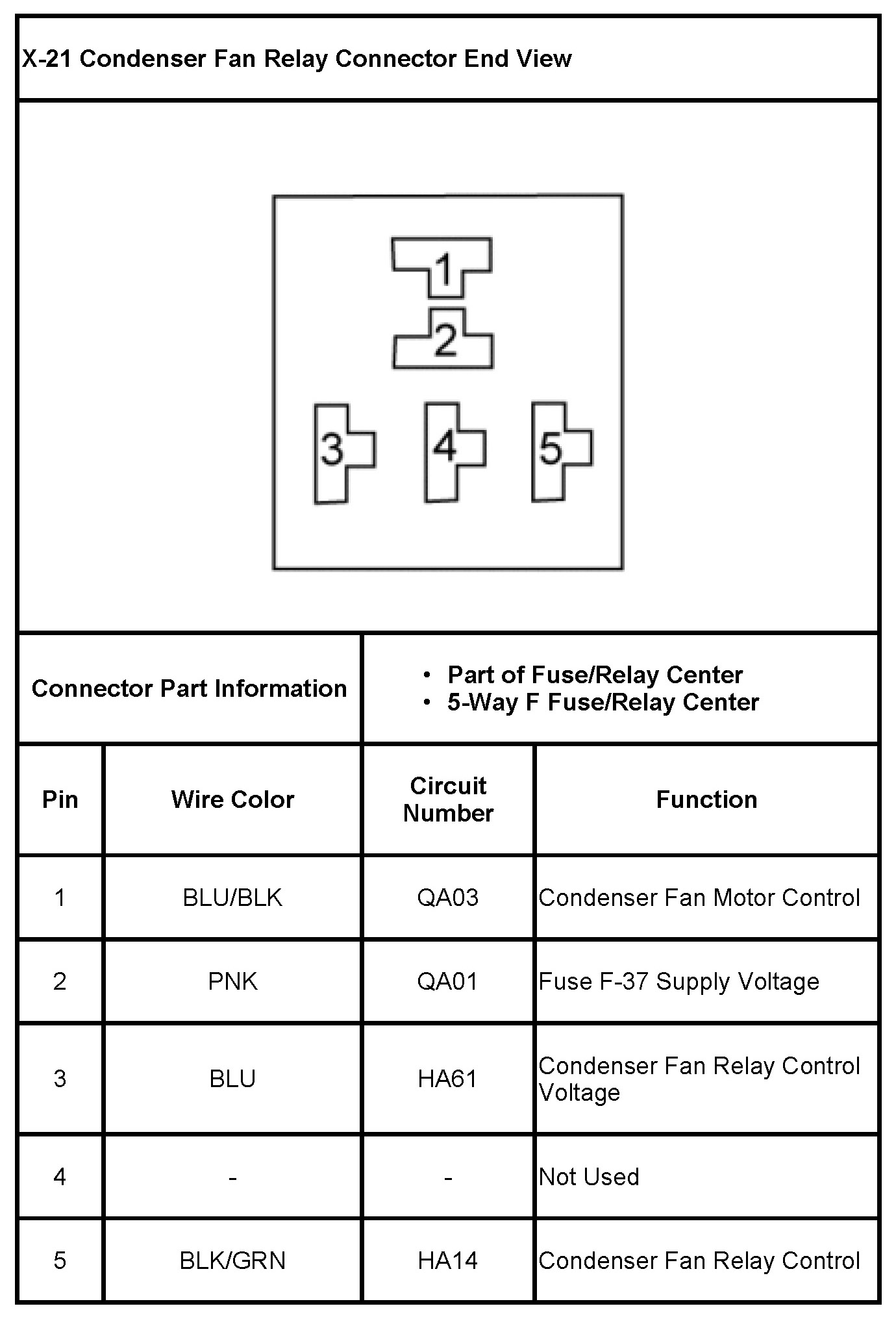

Condenser Fan Relay (X-21)

Left Outer Frame Rail, In the Fuse/Relay Center
