Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Diagrams >> Connectors >> J-71

J-71

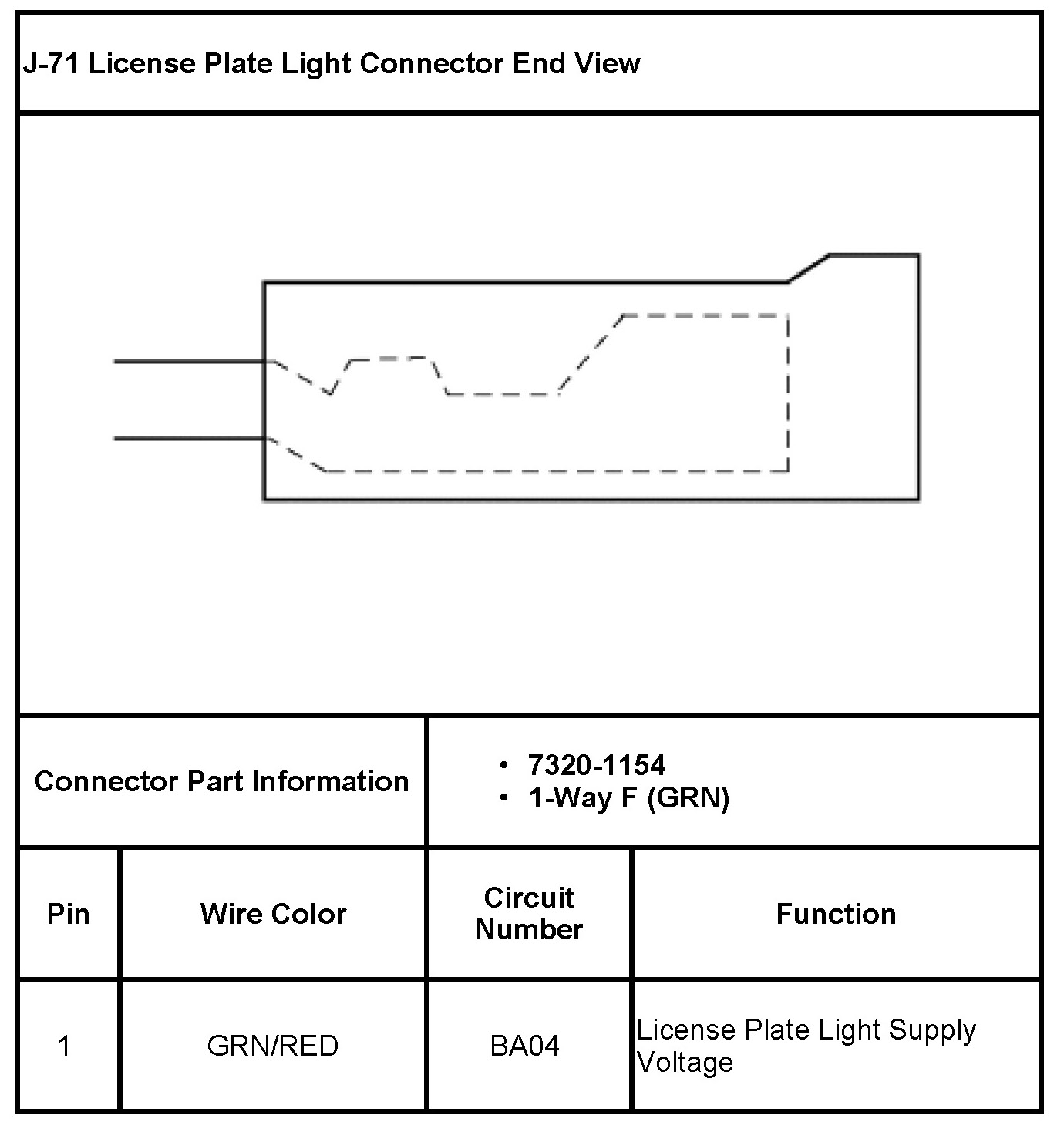

J-71 License Plate Light

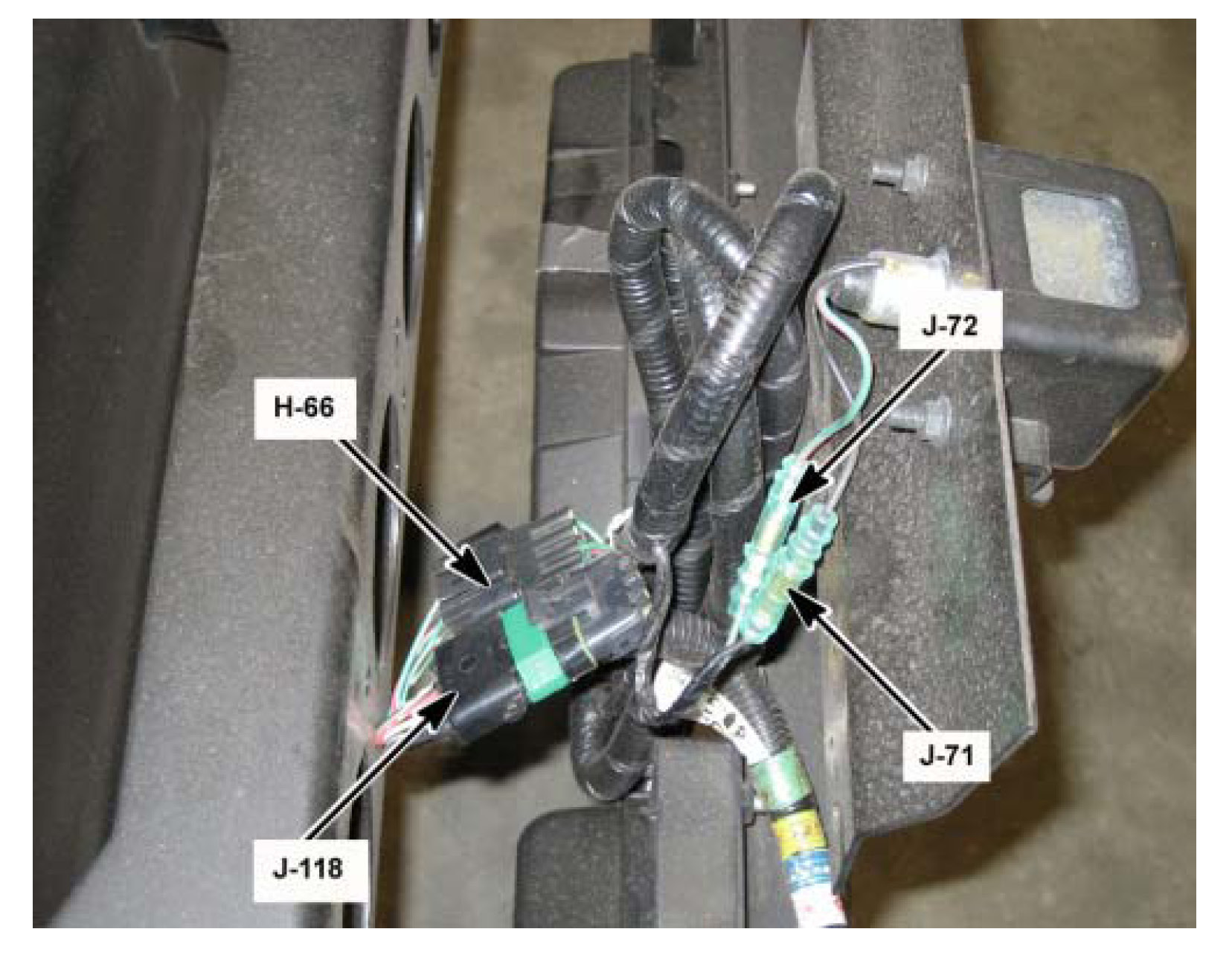

Center Rear of the Last Crossmember
