J-149
J-149

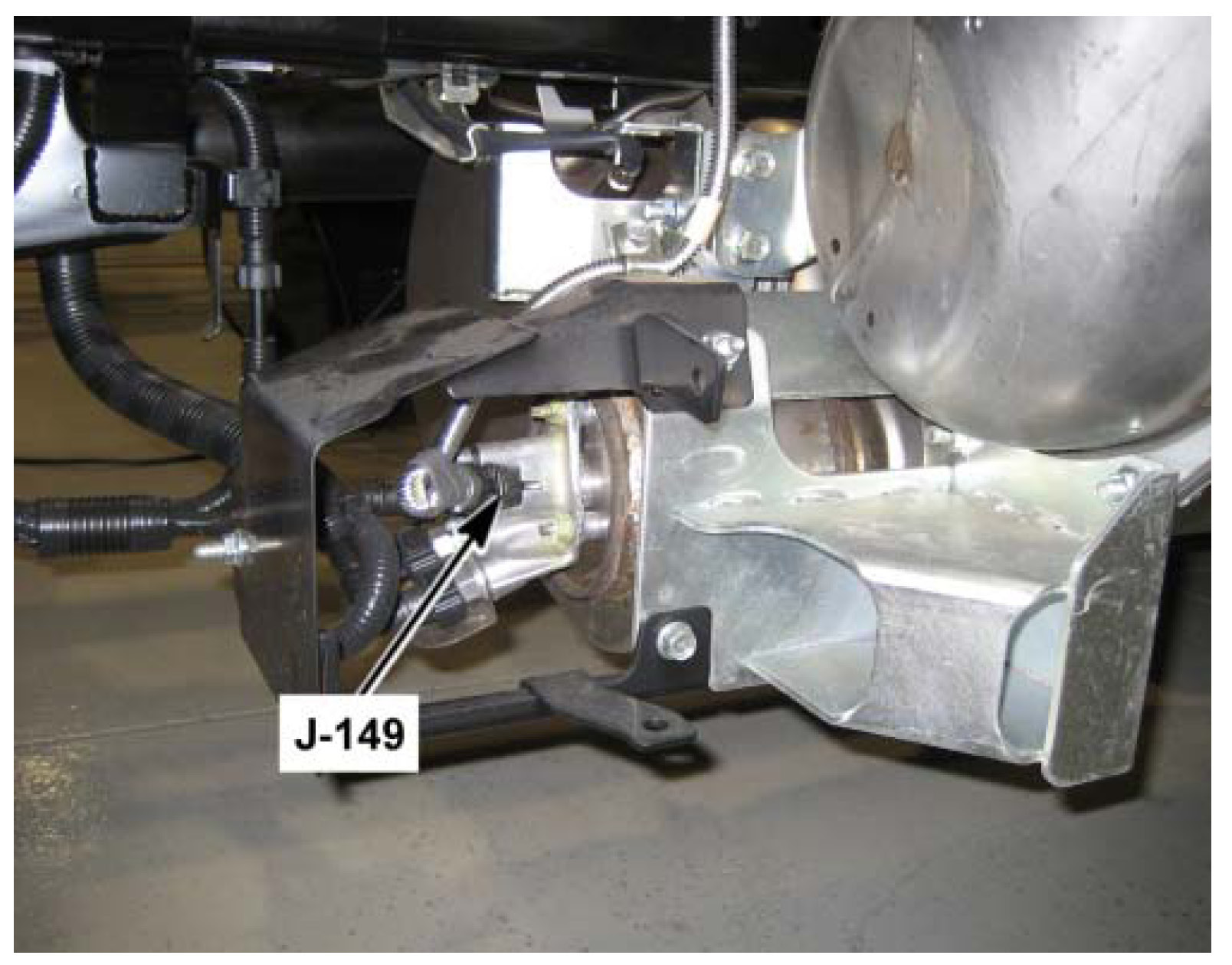

J-149 Diesel Exhaust Fluid (DEF) Injector
Right Outer Frame Rail, Behind the SCR Catalyst

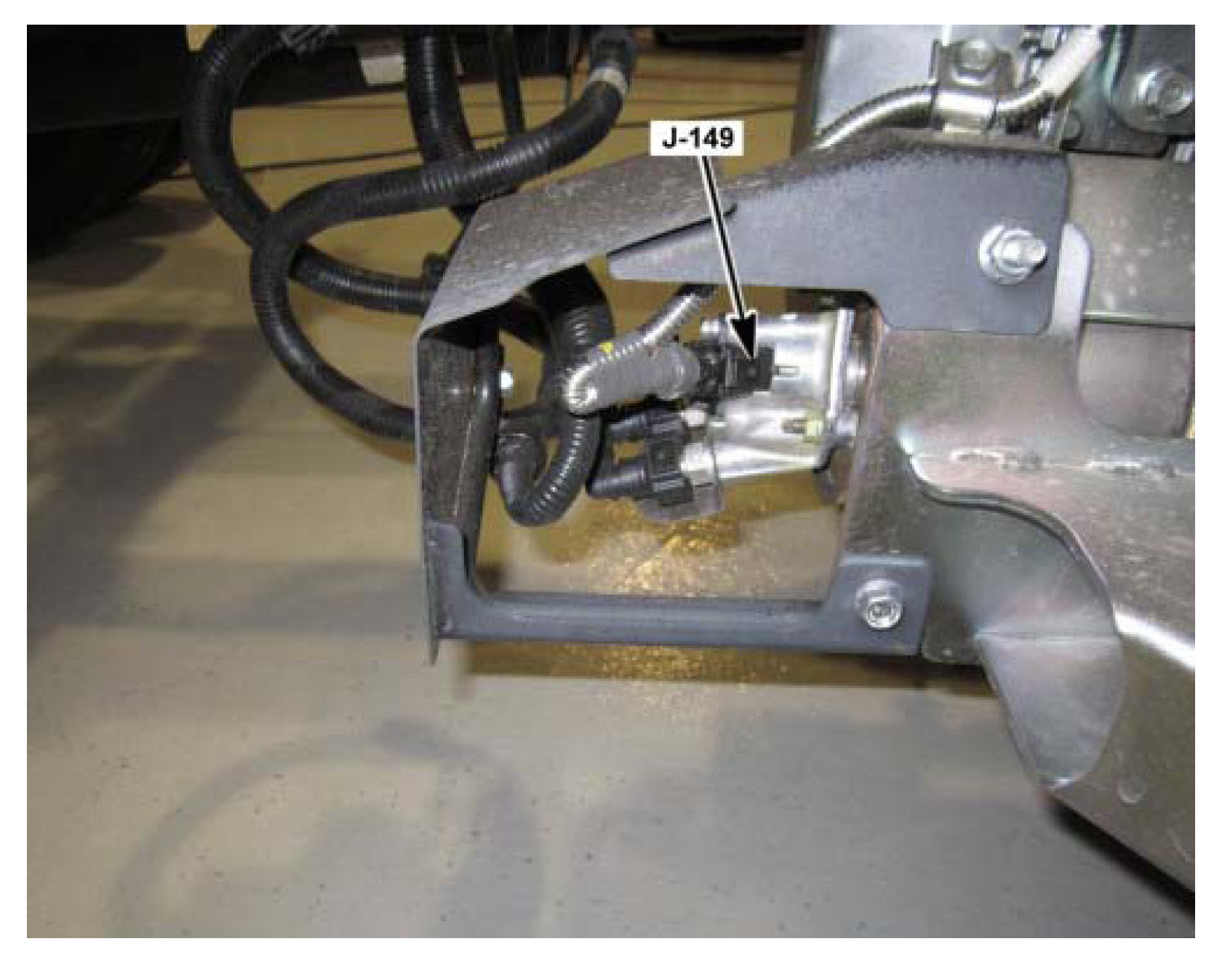

Diesel Exhaust Fluid (DEF) Injector (J-149)
Right Outer Side of the Frame, On the Back of the SCR Assembly
