Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
J-147
J-147

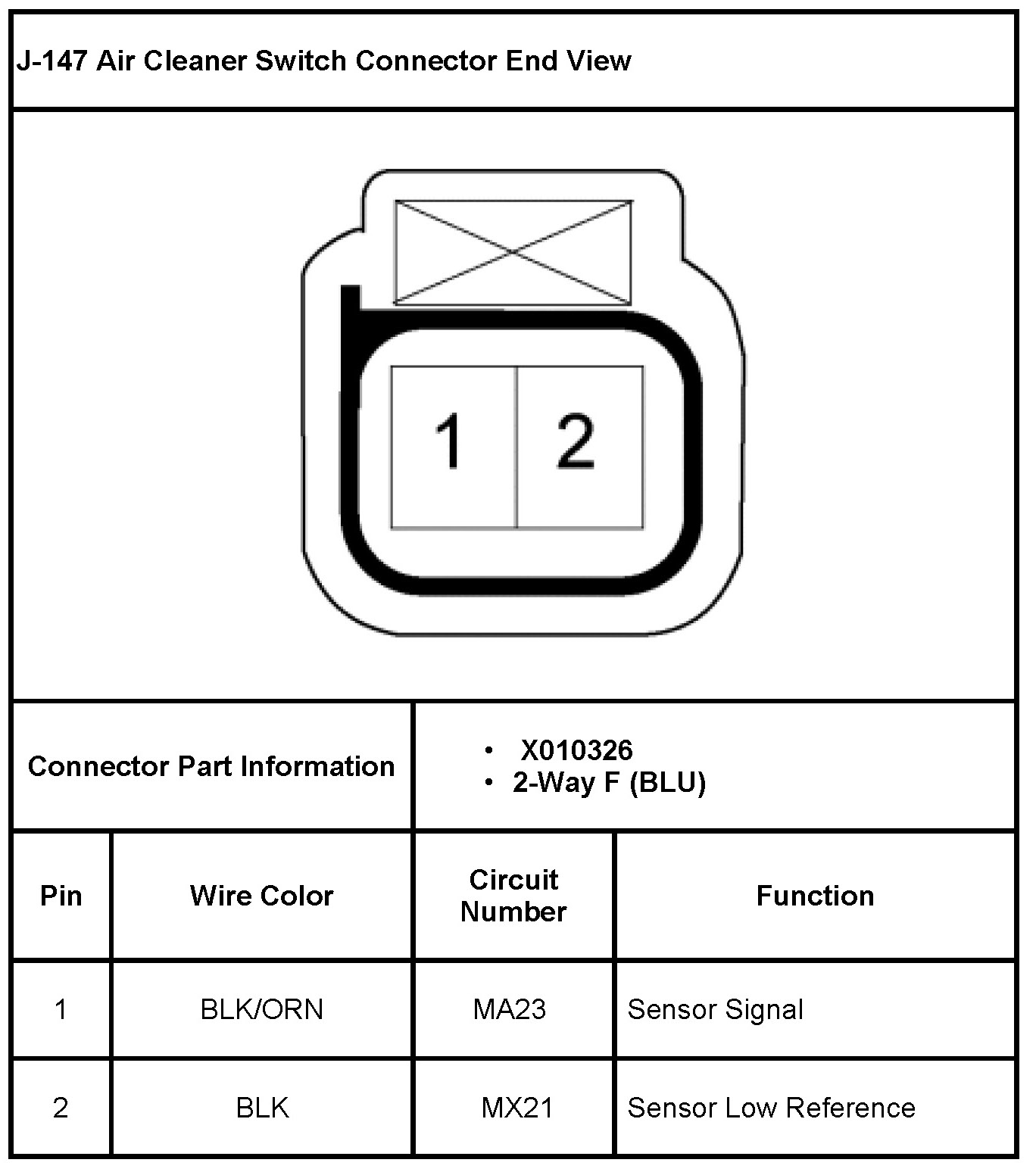

J-147 Air Cleaner Switch
By the Right Outer Frame Rail, Next To The Air Cleaner, On the Air Intake Elbow
