Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
J-123
J-123

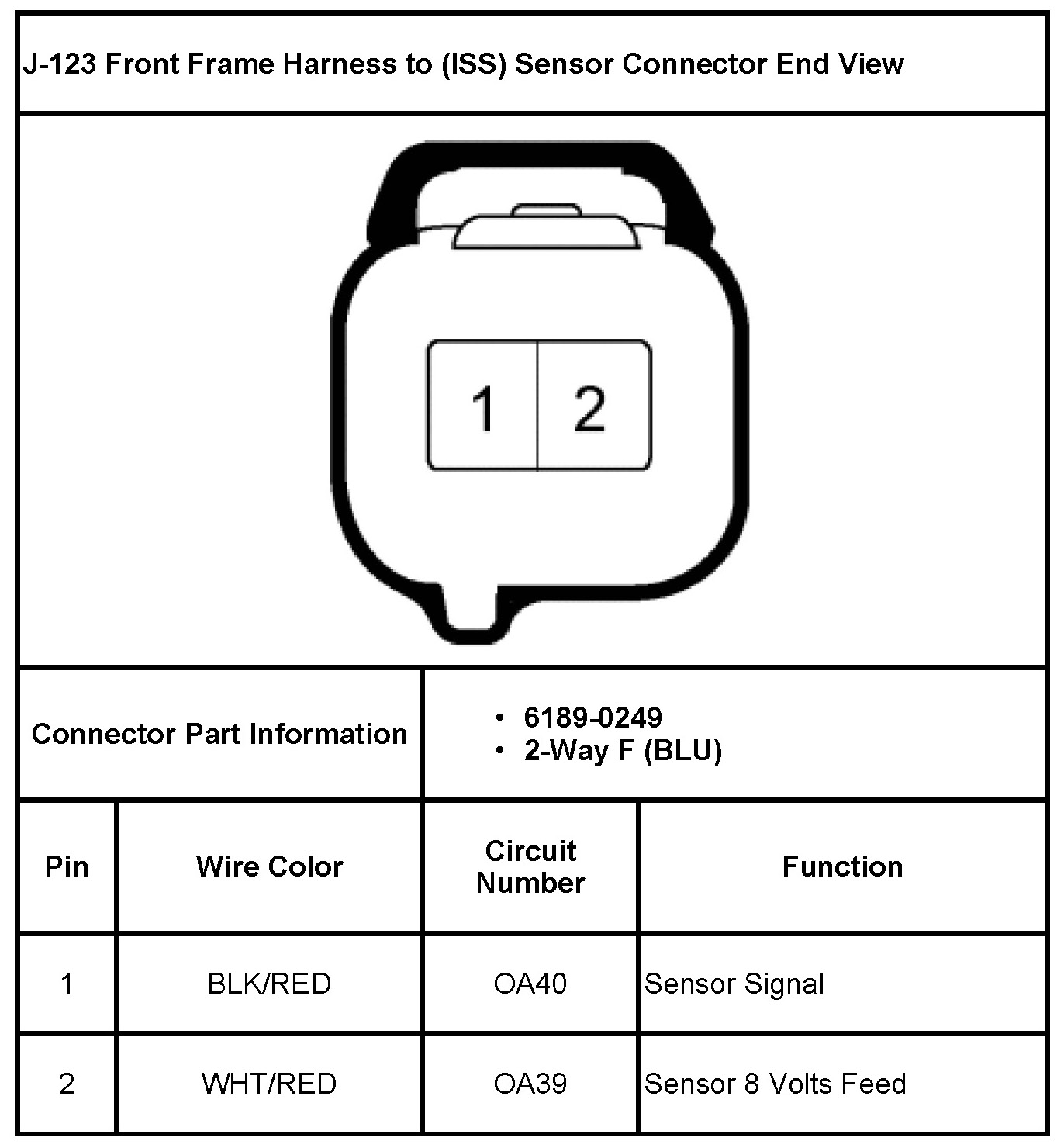

J-123 Front Frame Harness To (ISS) Sensor

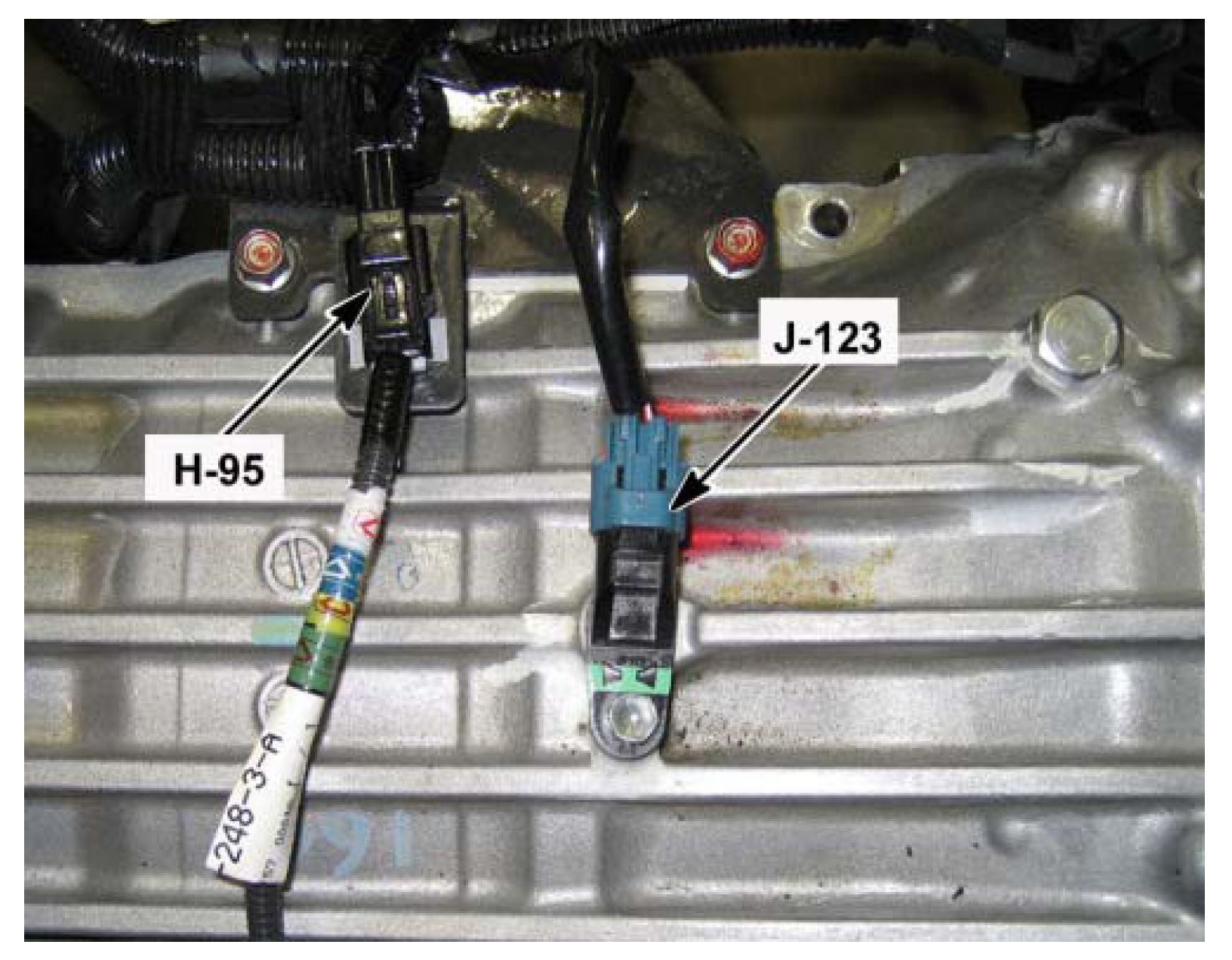

Top Side of the Transmission
