Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
H-66
H-66

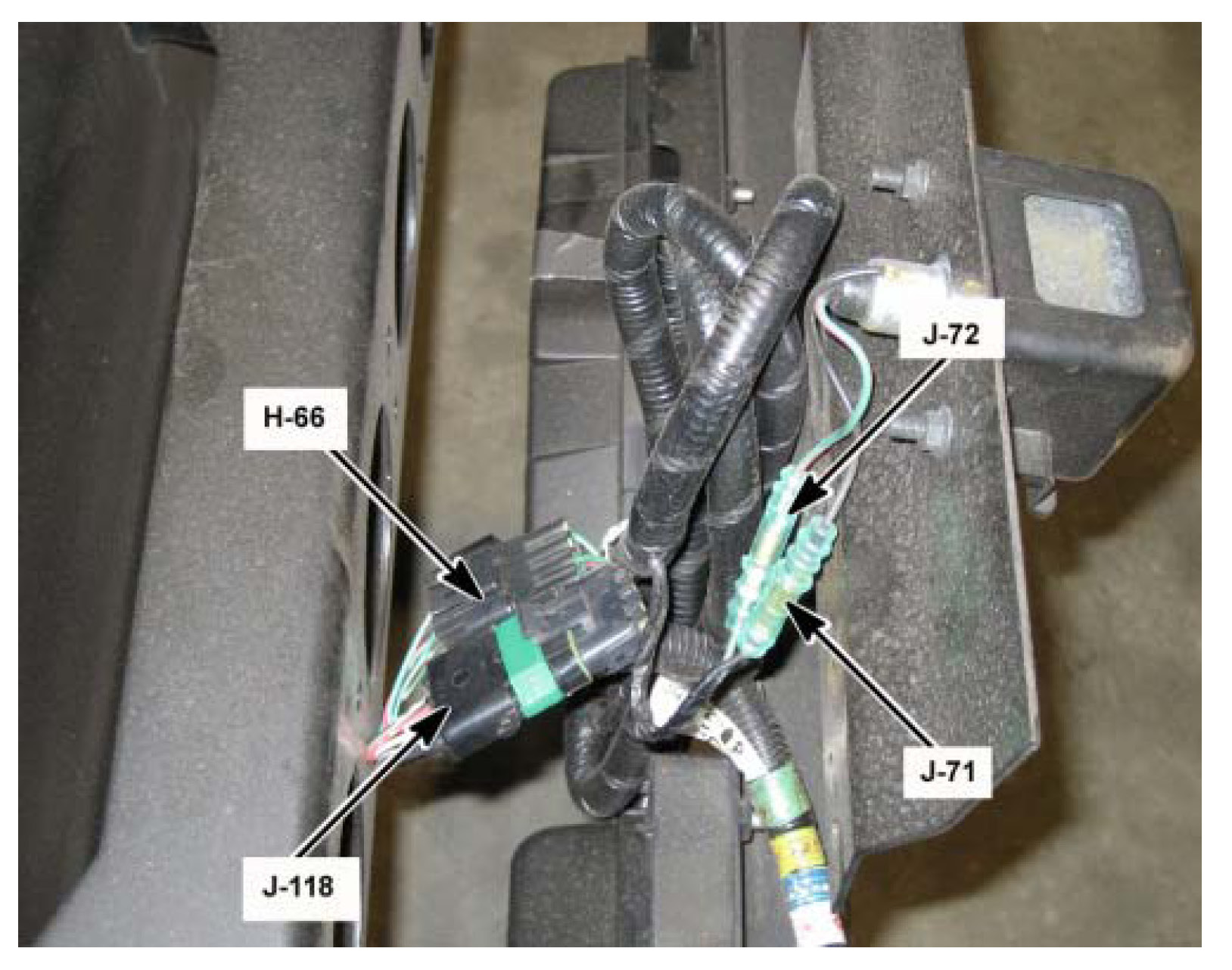

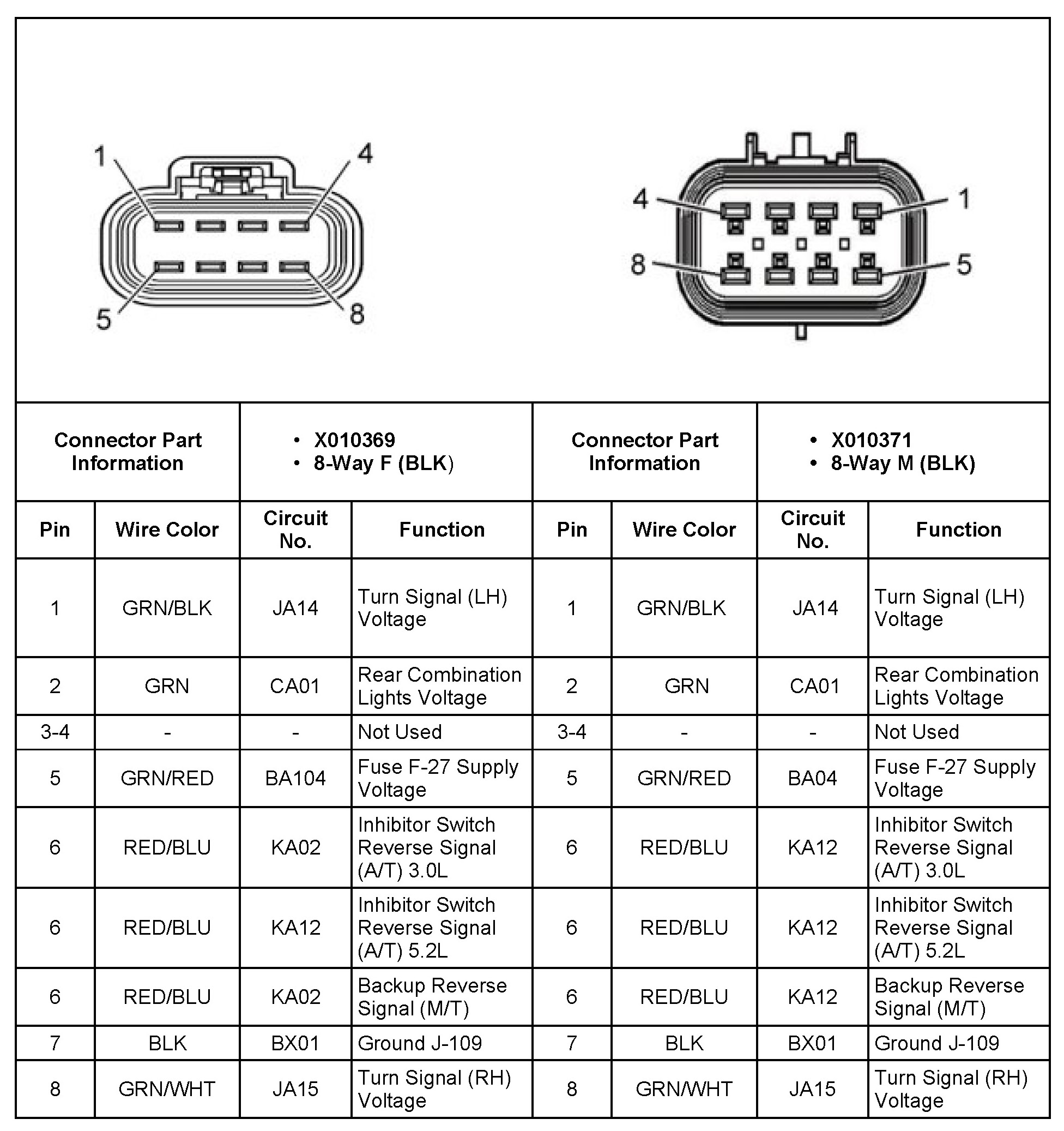

H-66 Rear Frame Harness To The Rear Combination Harness
Center Rear of the Last Crossmember
