Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
H-105
H-105

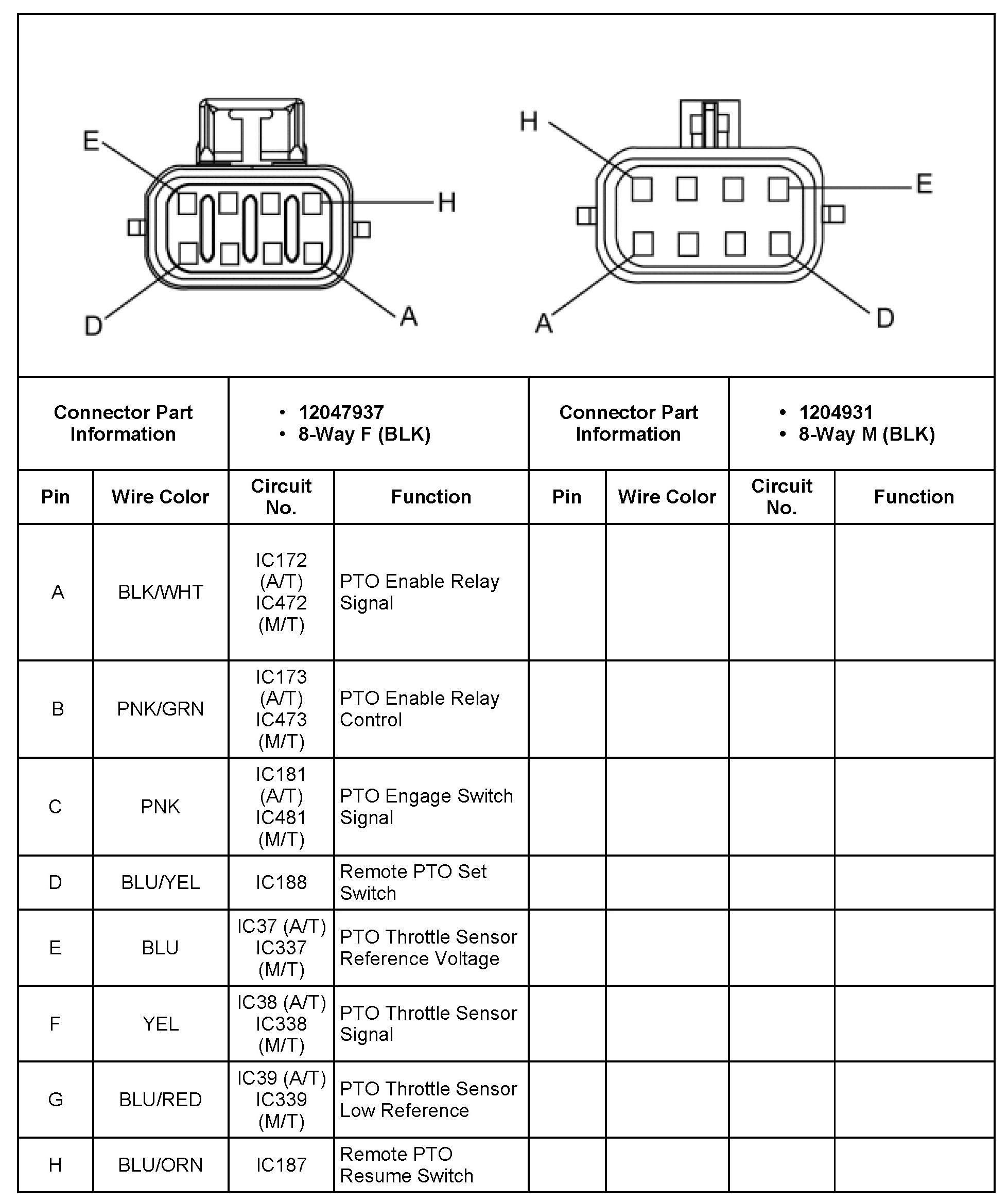

H-105 Rear Frame Harness To The PTO Harness

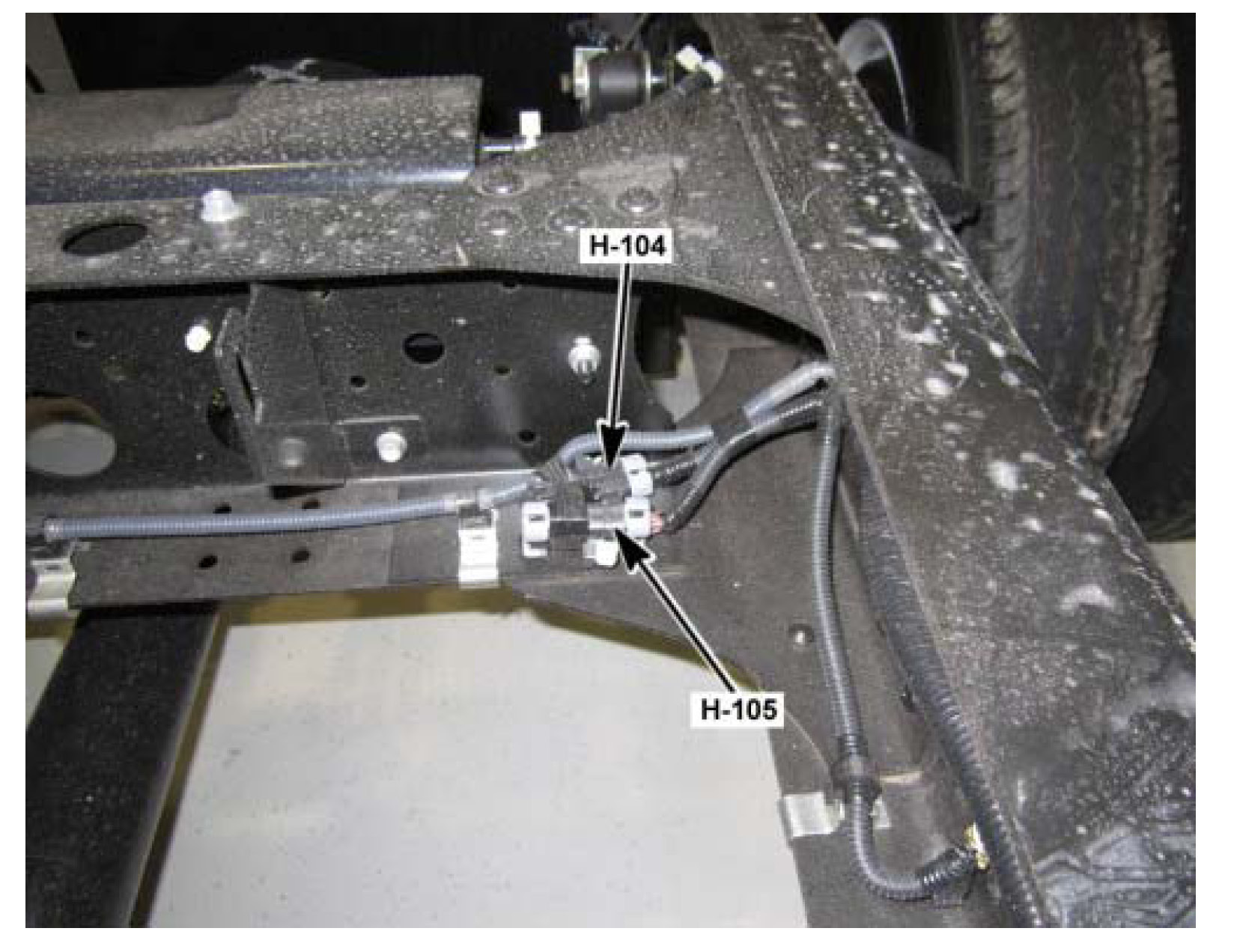

Left Inner Side of the Frame Rail, Next To The Crossmember in Front of the Rear Axle.
