E-78
E-78

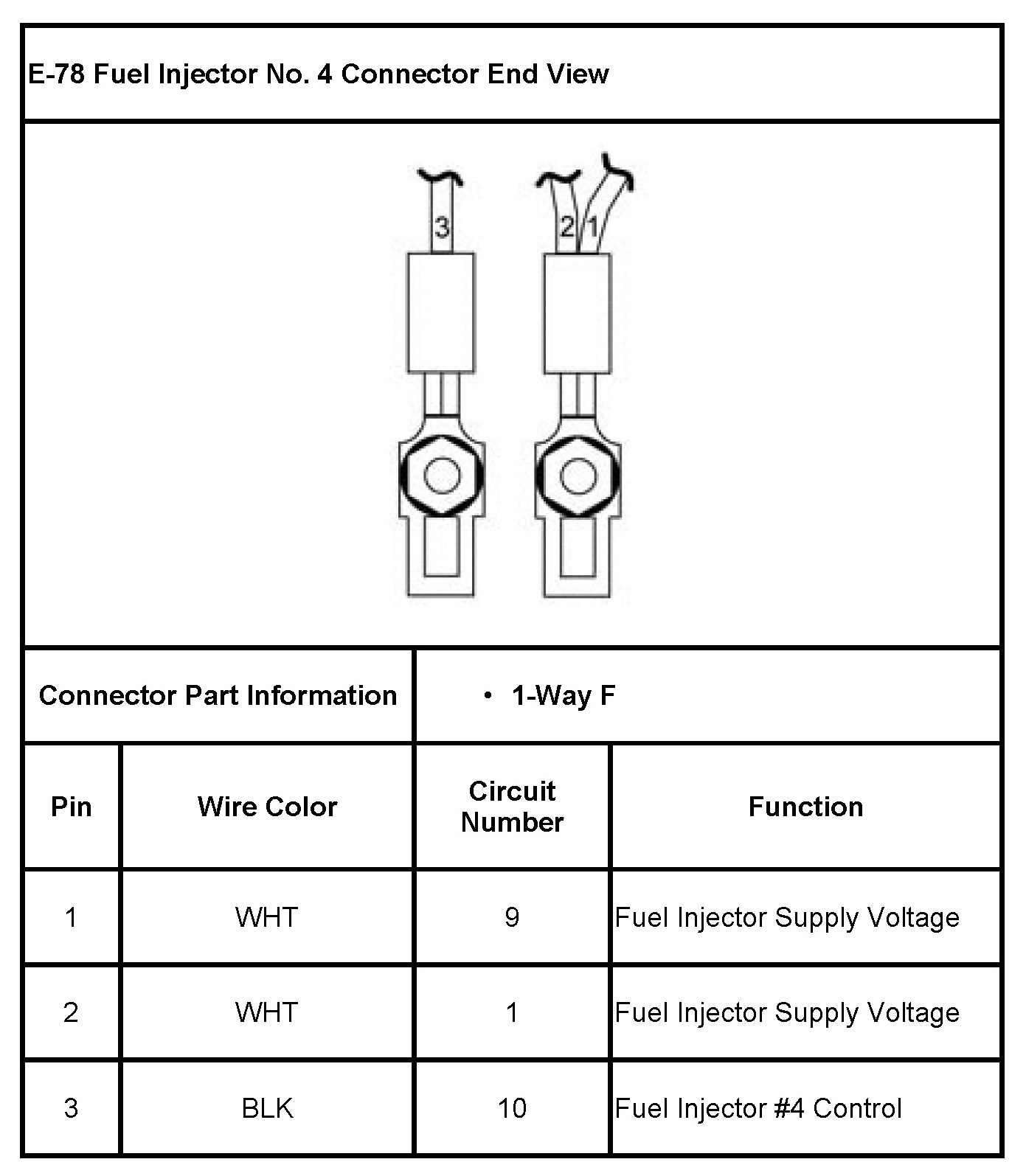

E-78 Fuel Injector No. 4

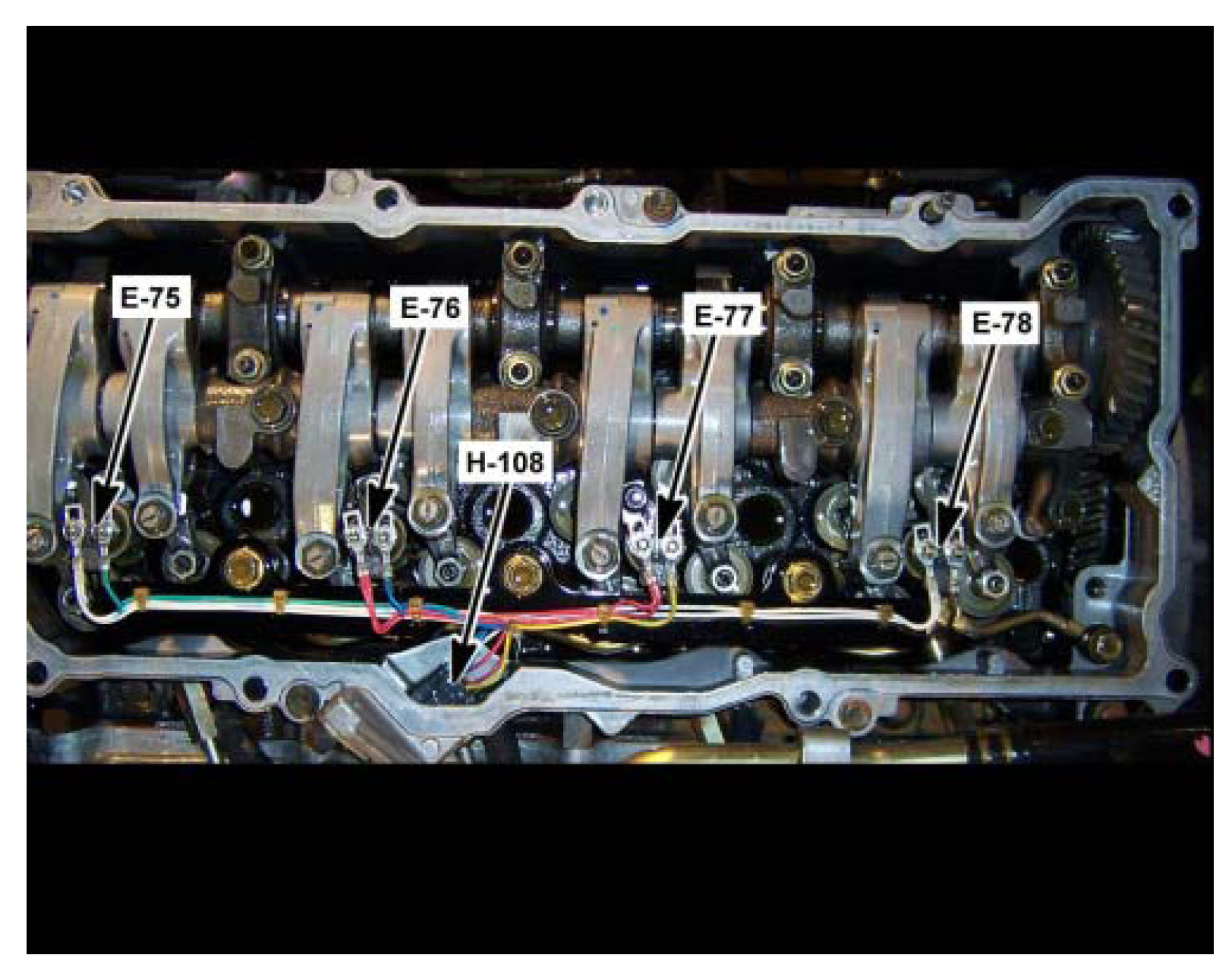

On the Upper Left Side of the Engine, In the Cylinder Head, Under the Valve Cover, At Cylinder 4
