Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
E-68
E-68

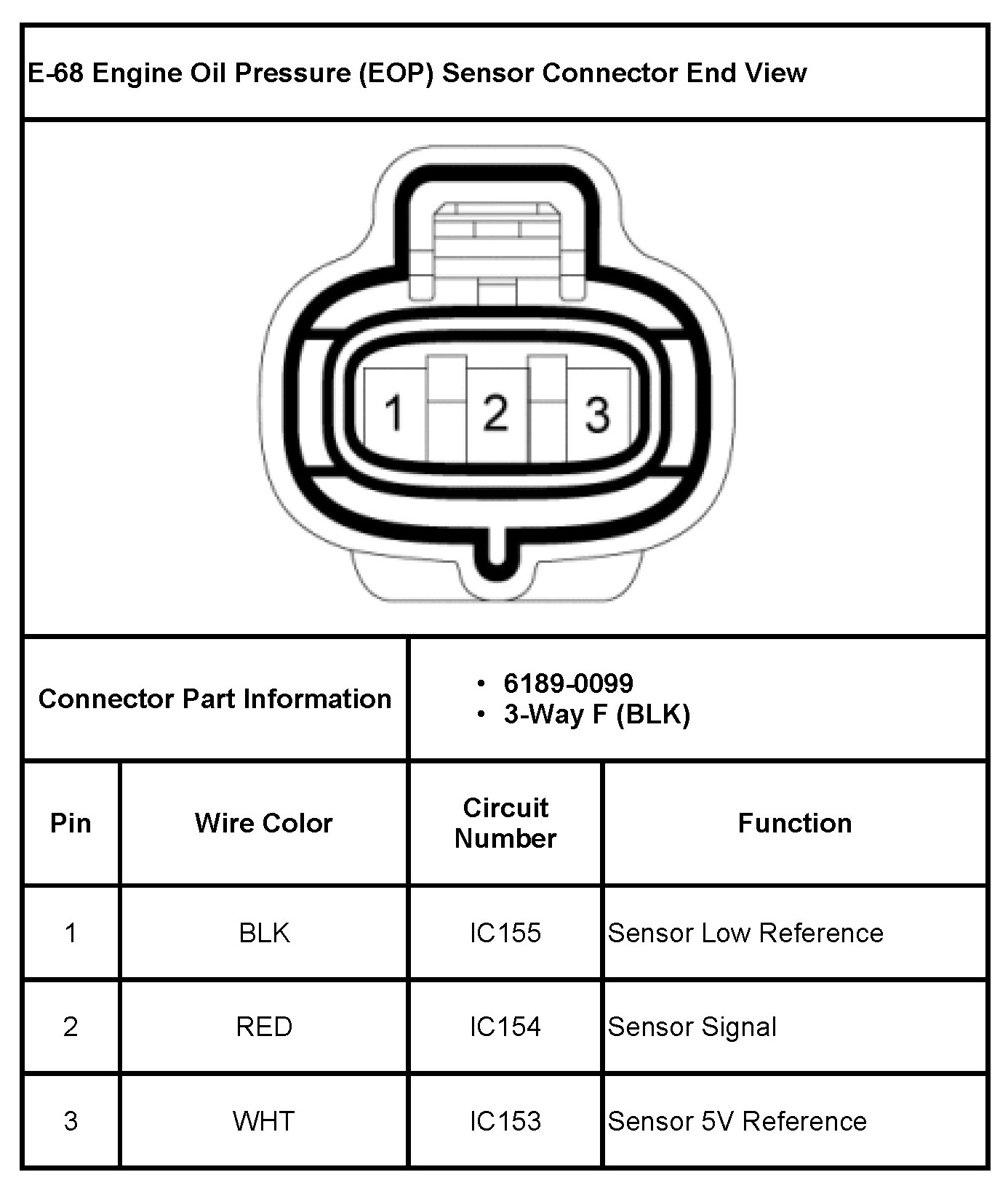

E-68 Engine Oil Pressure (EOP) Sensor

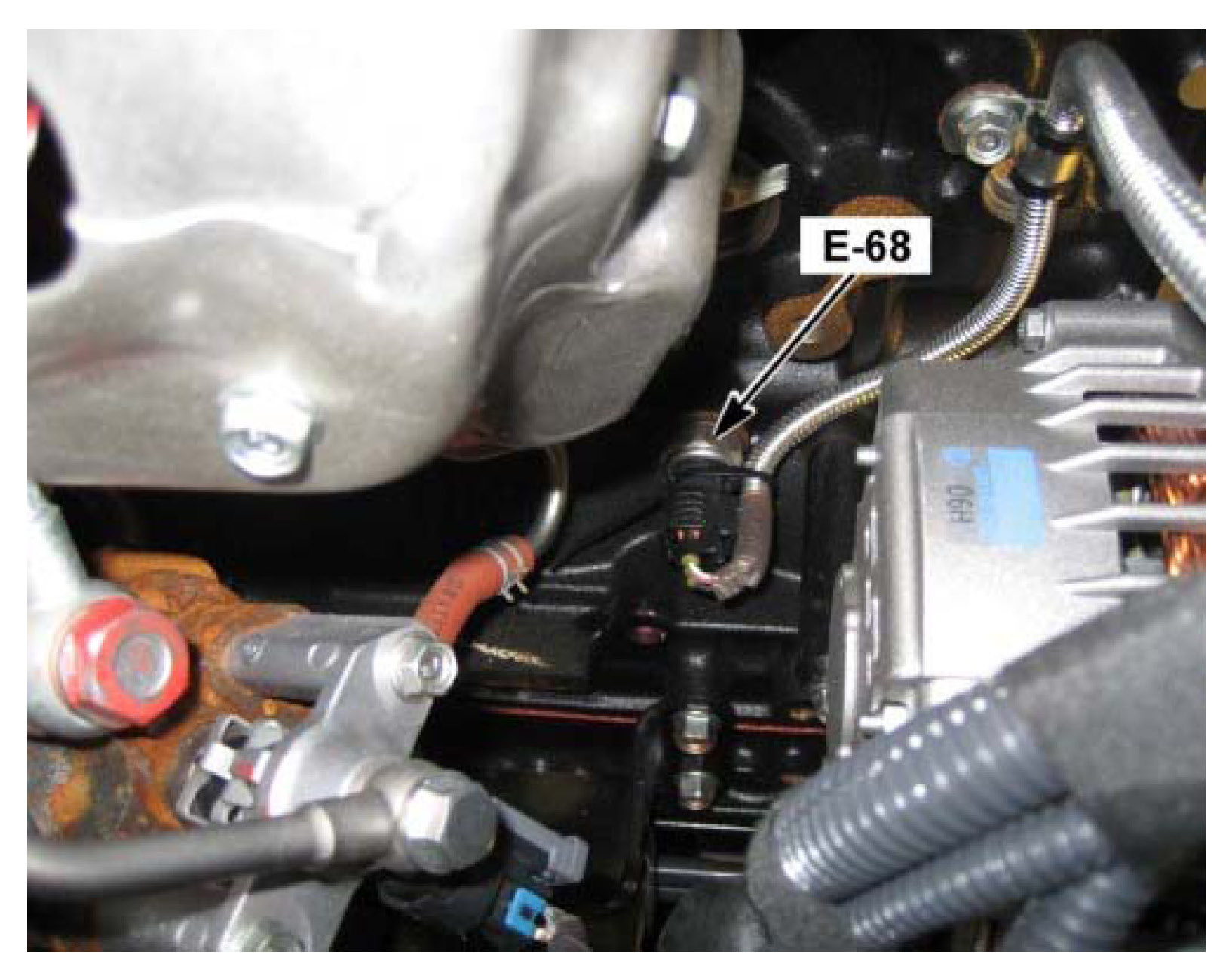

On the Right Side of the Engine Behind the Alternator
