E-149
E-149

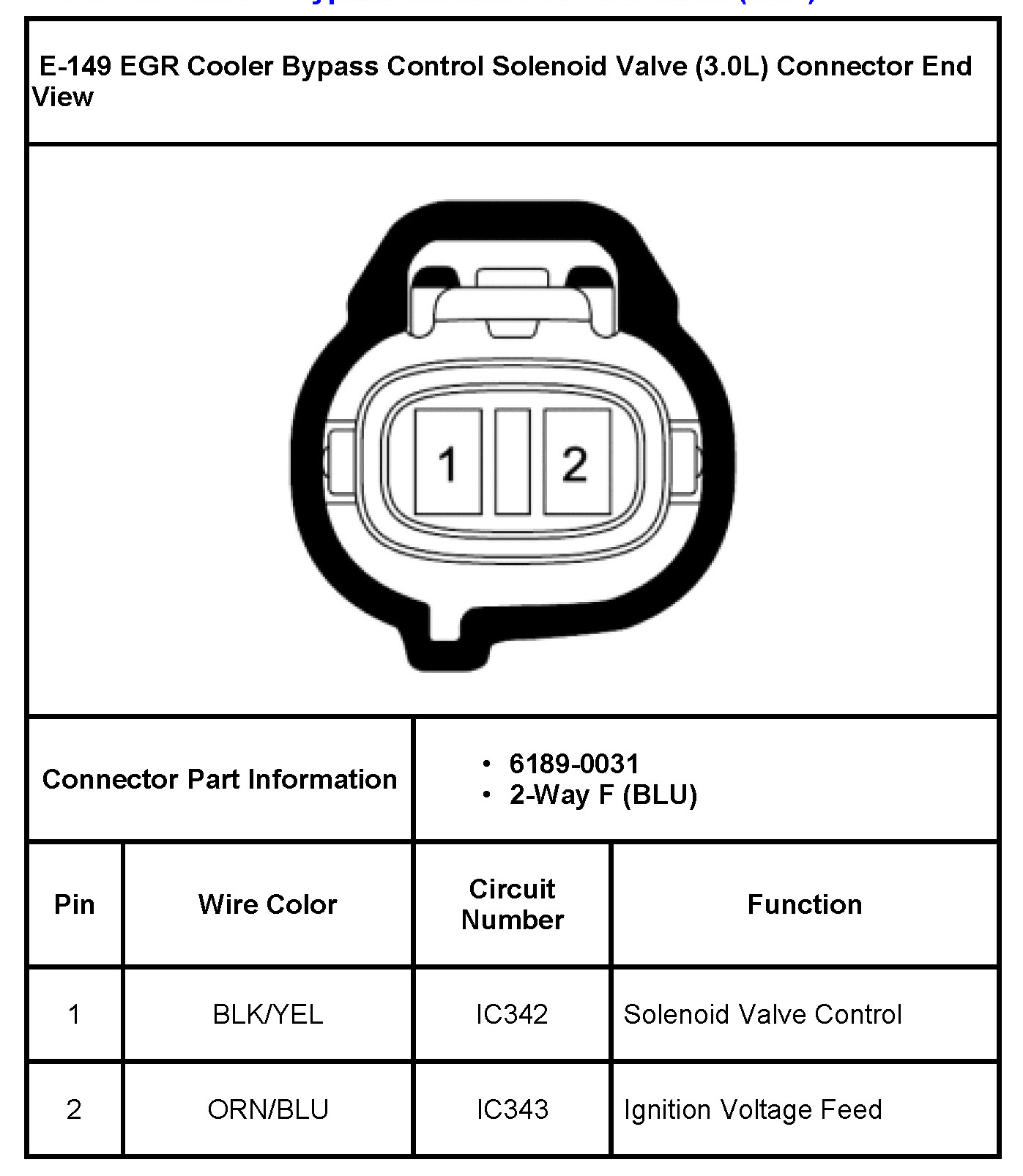

E-149 EGR Cooler Bypass Control Solenoid Valve (3.0L)

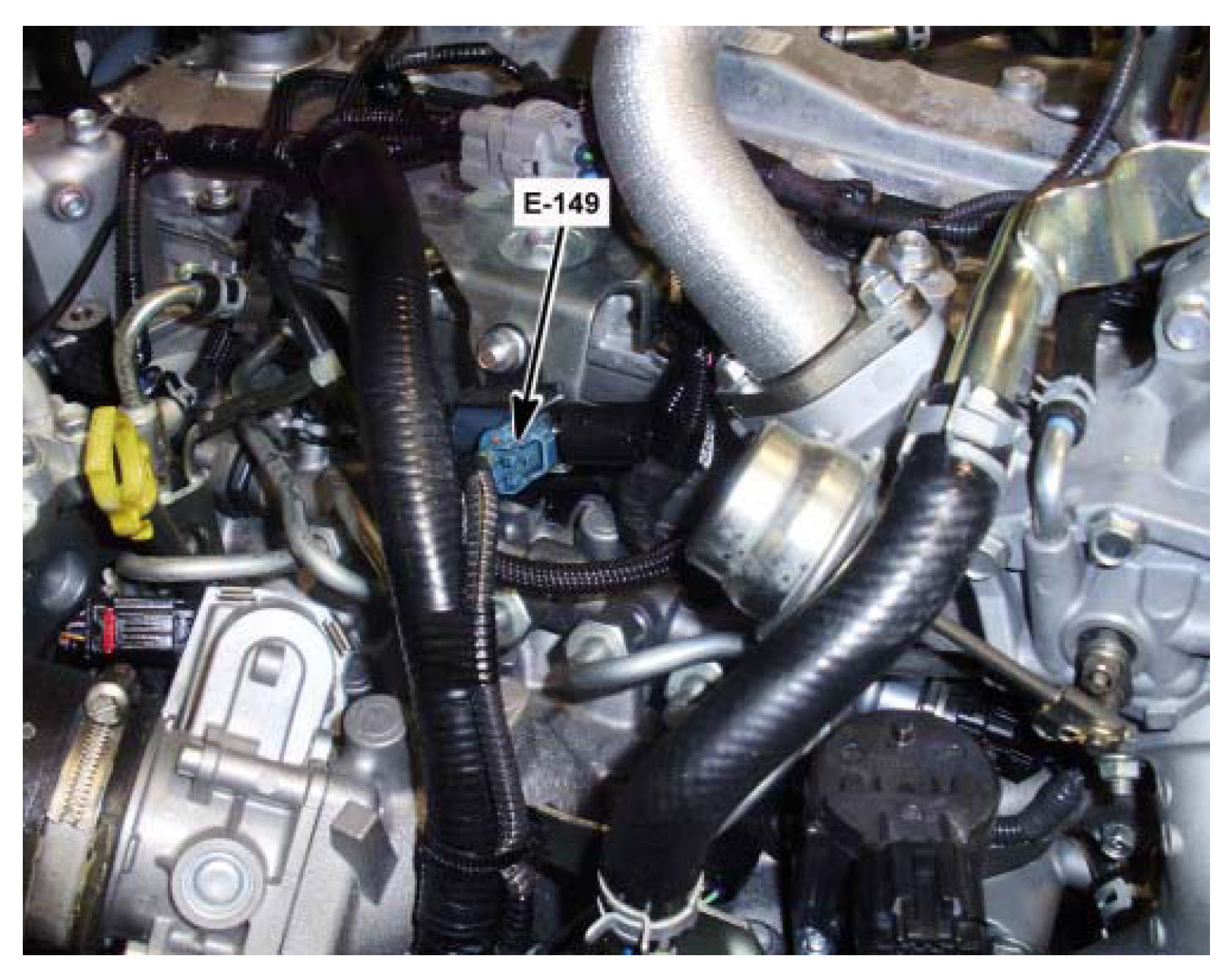

Top Left of Engine, Next To The Intake Air Flow Valve
