D-22

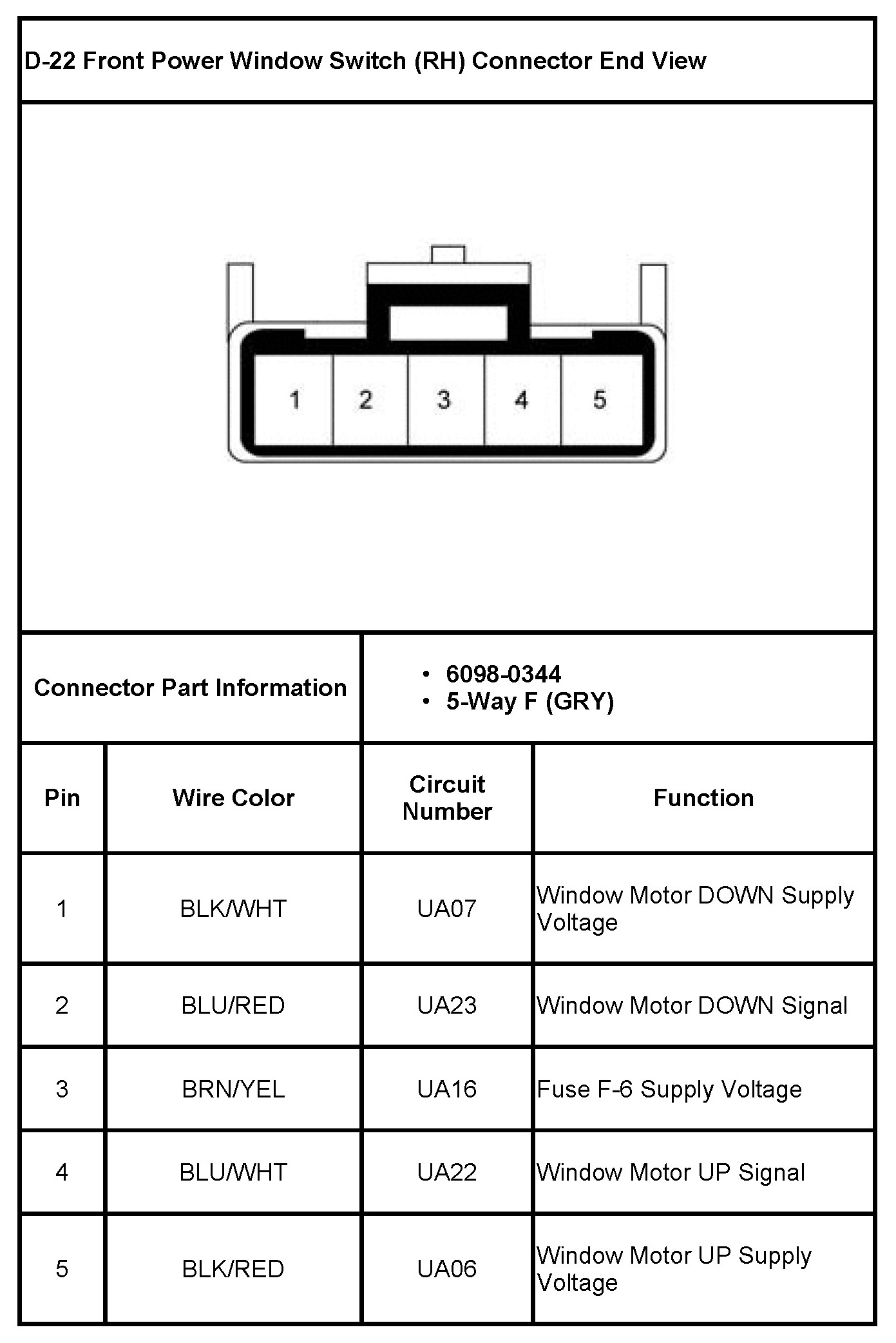

D-22 Front Power Window Switch (RH)

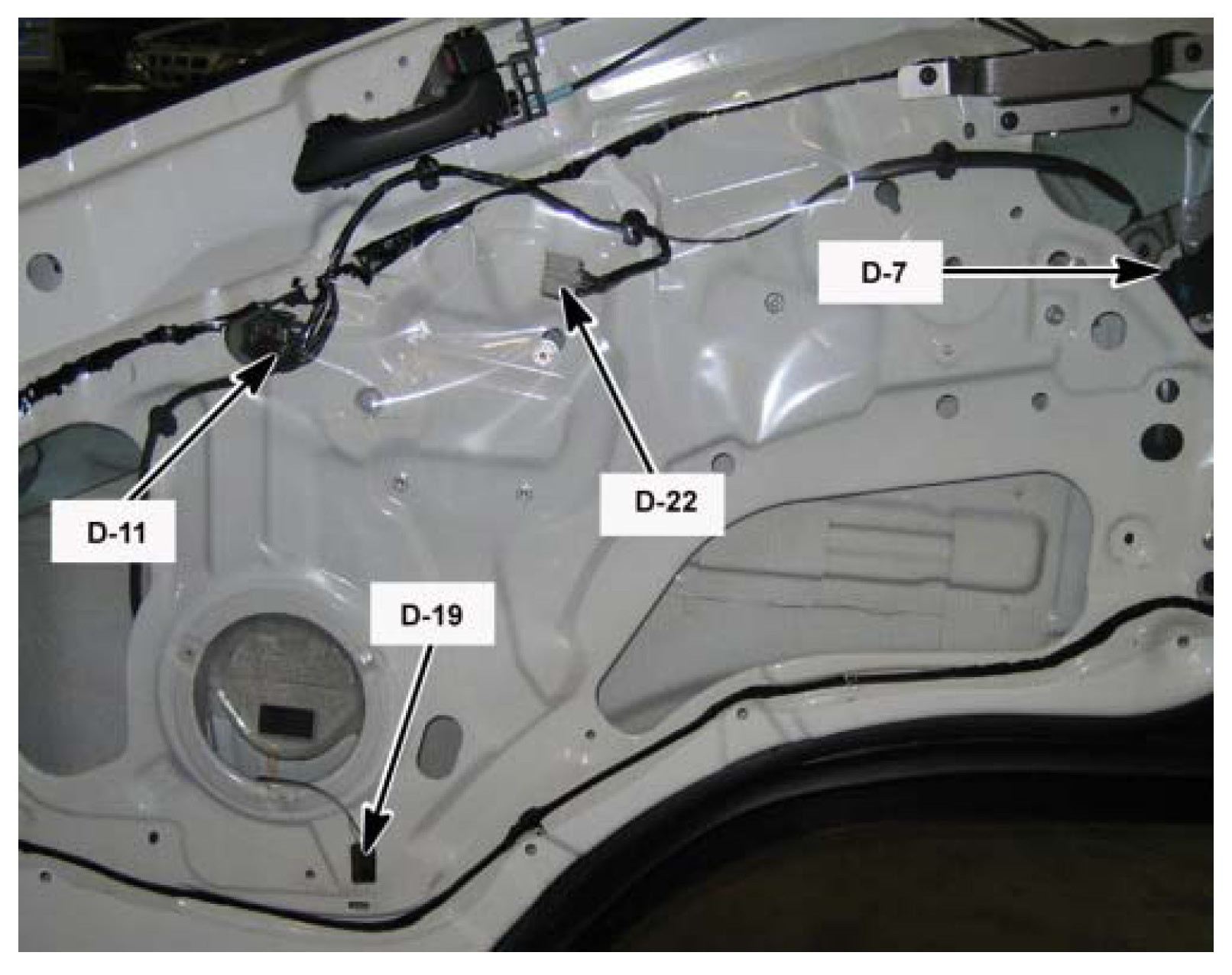

In the Right Front Door, On the Switch







Front Power Window Switch (RH) (D-22)

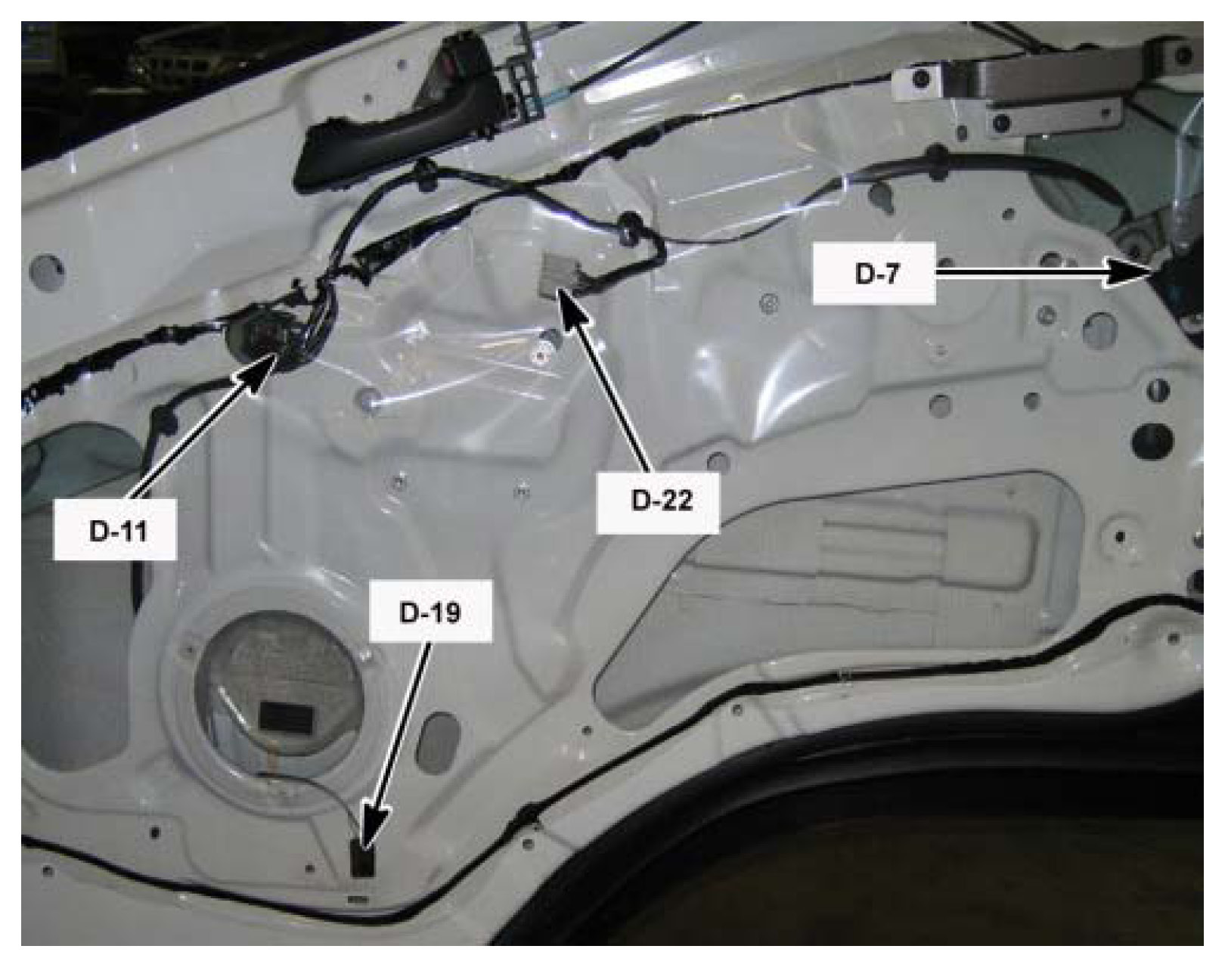

In the Right Front Door, On the Switch
