D-21

D-21 Front Power Window Switch (LH)

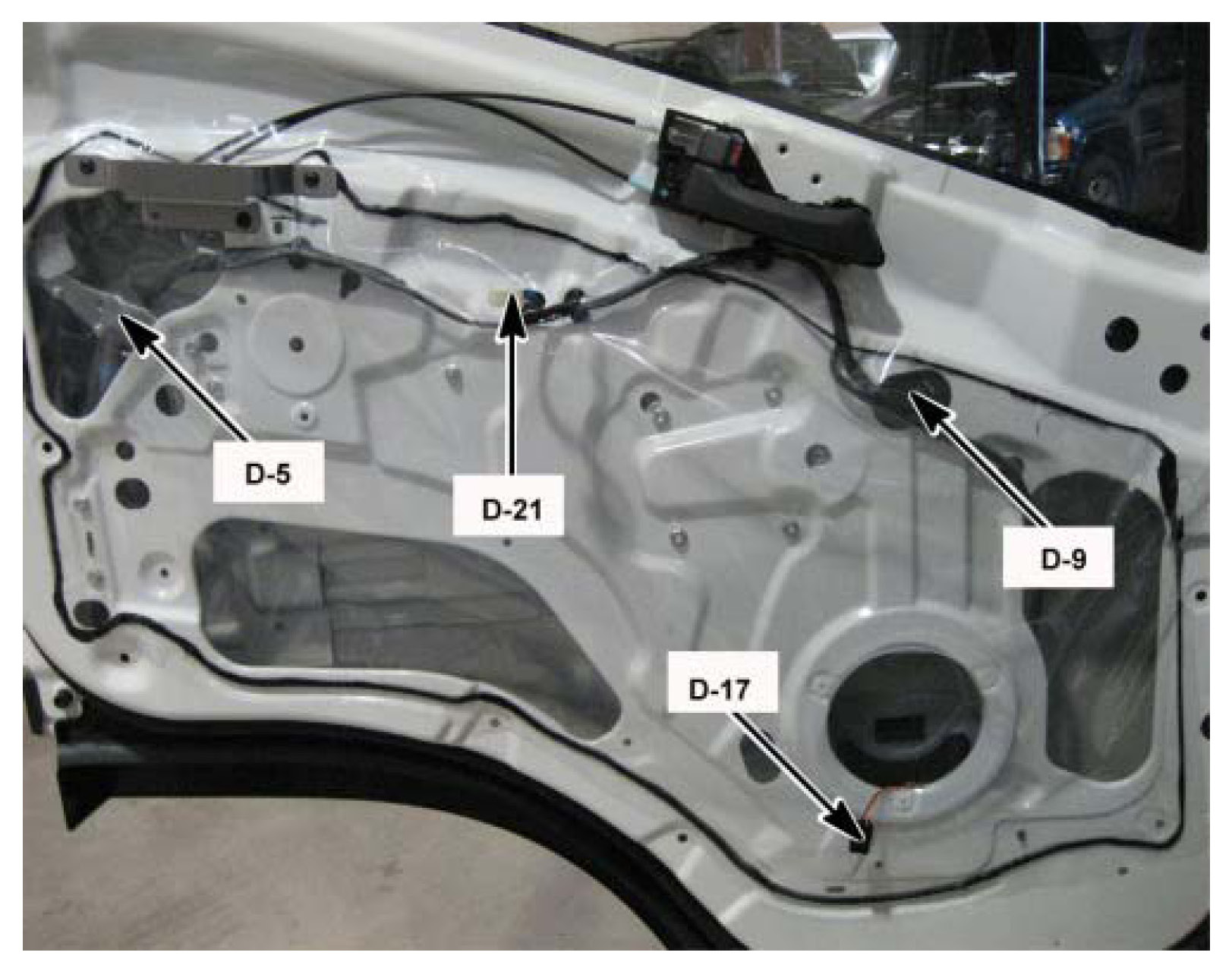

In the Left Front Door, On the Switch

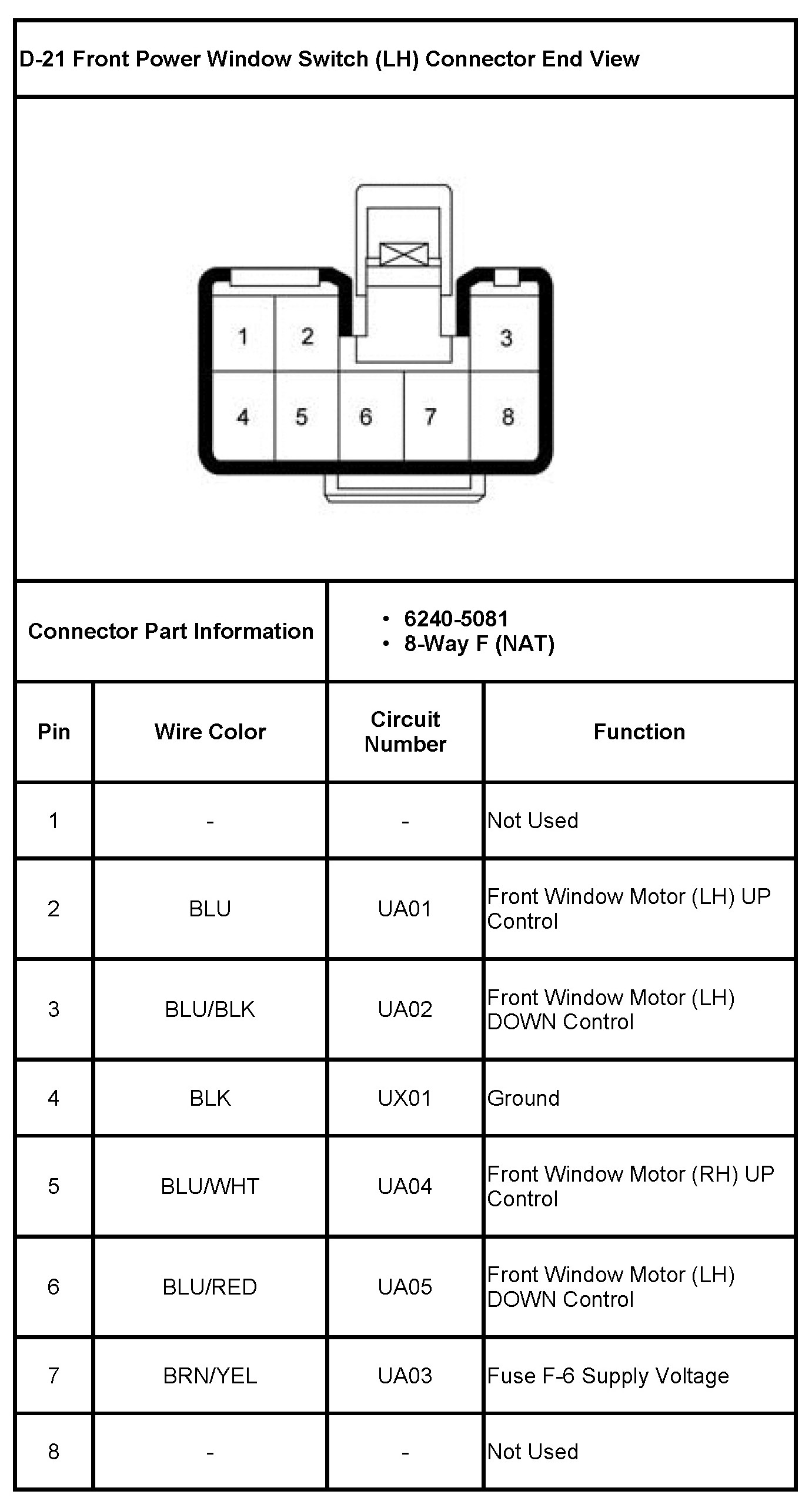

Front Power Window Switch (LH) (D-21)

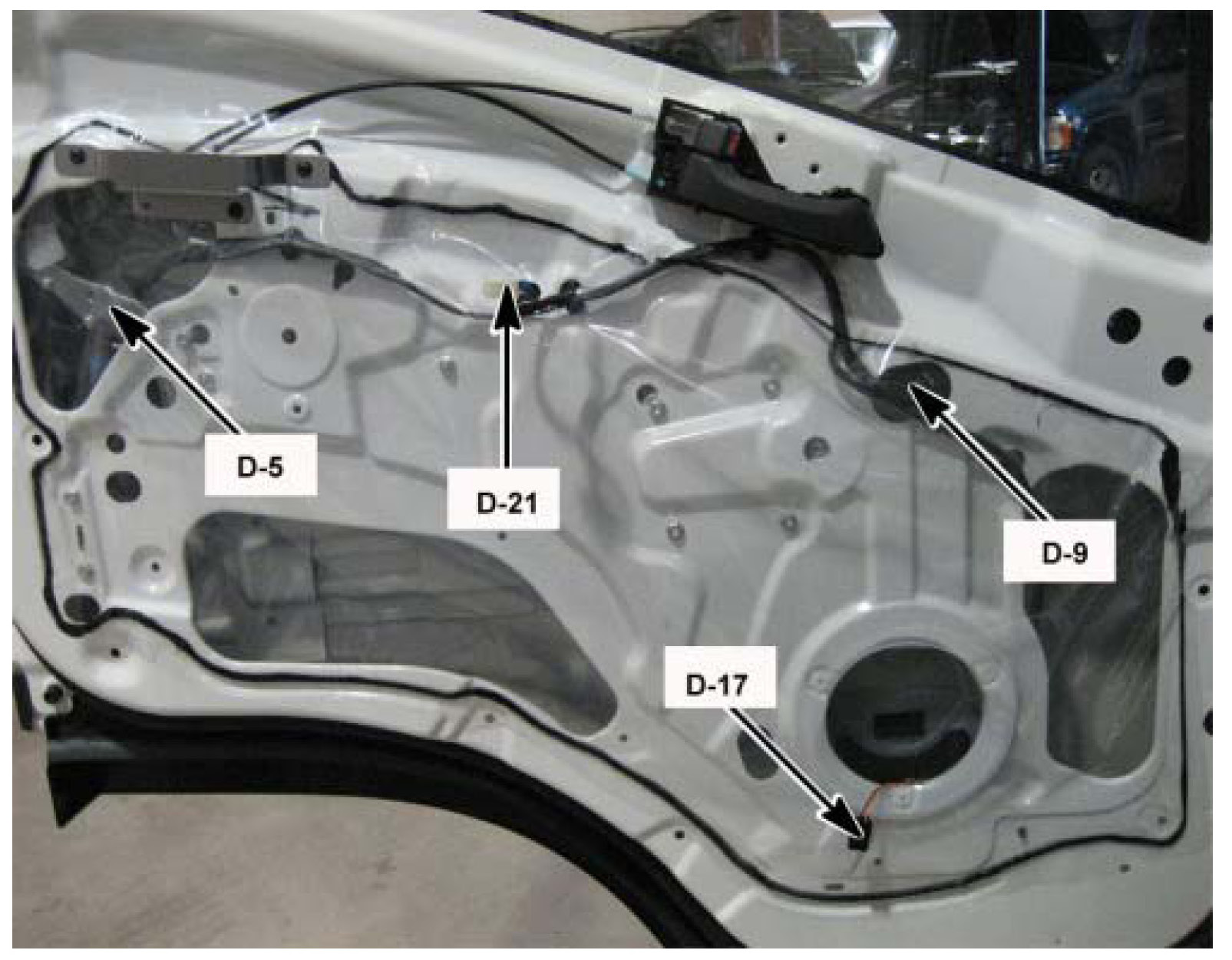

In the Left Front Door, On the Switch
