Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
D-13
D-13

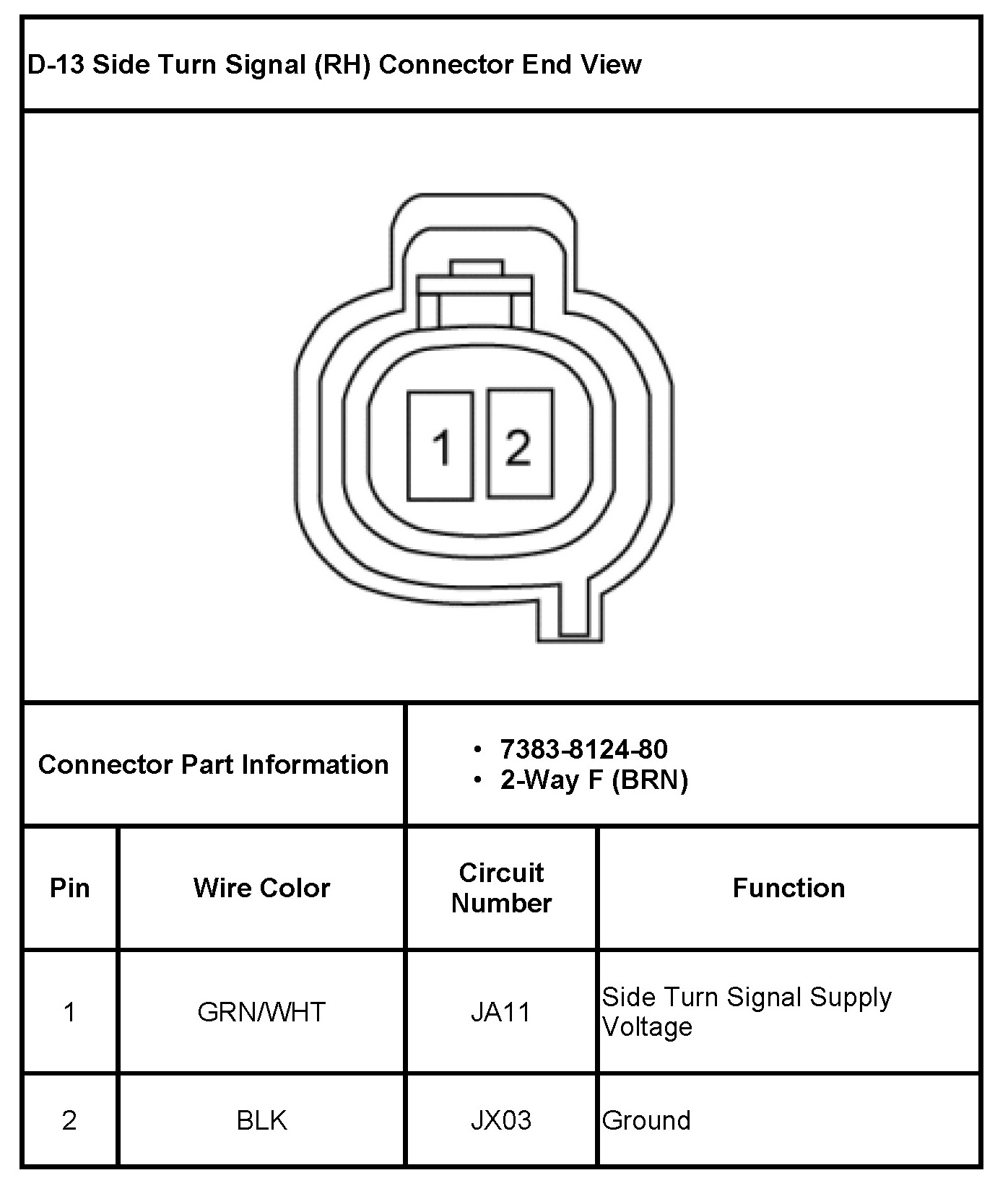

D-13 Side Turn Signal (RH)
In the Right Front Door, Behind the Cornering Light
