D-11

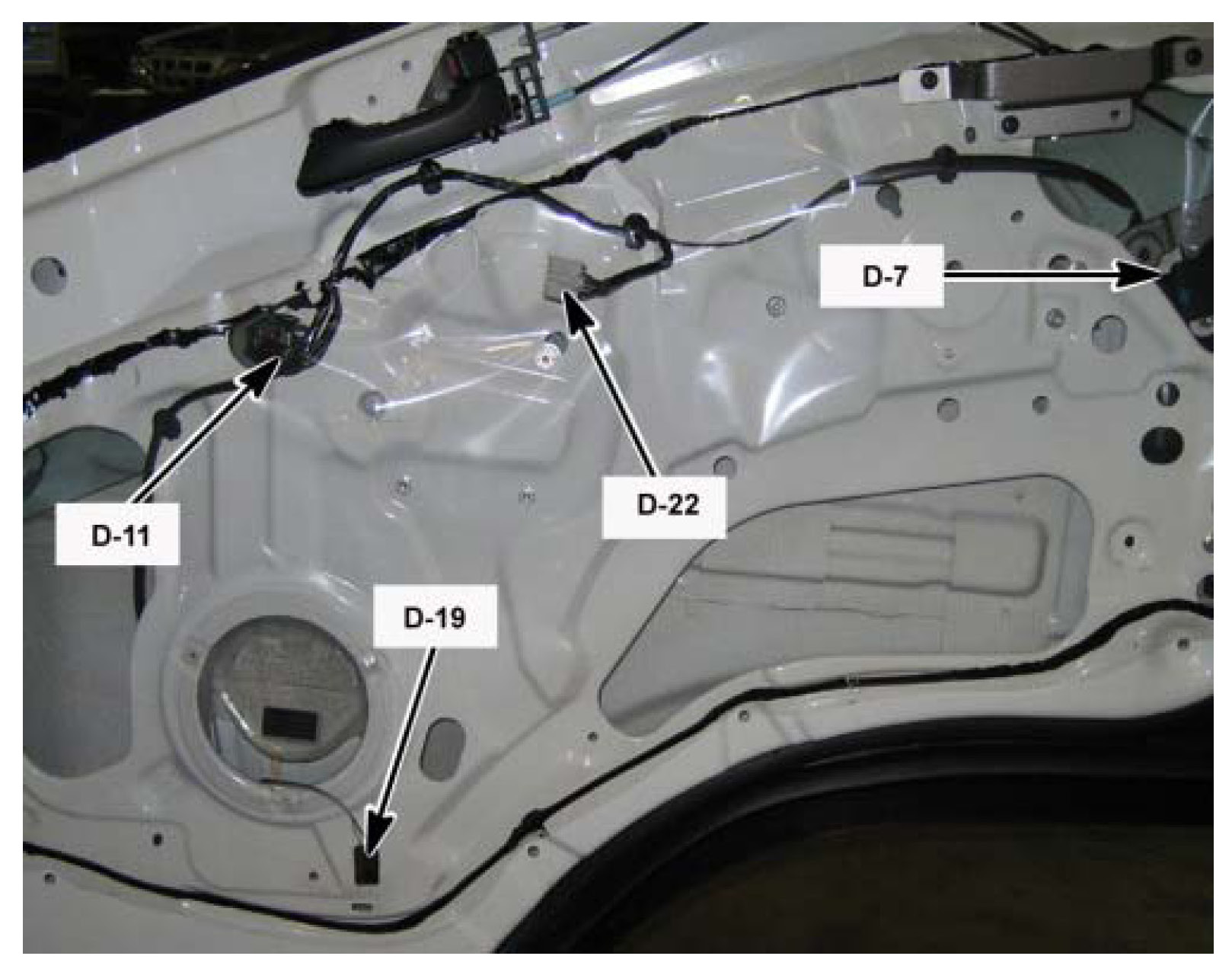

D-11 Front Power Window Motor (RH)







In the Right Front Door, On the Power Window Motor

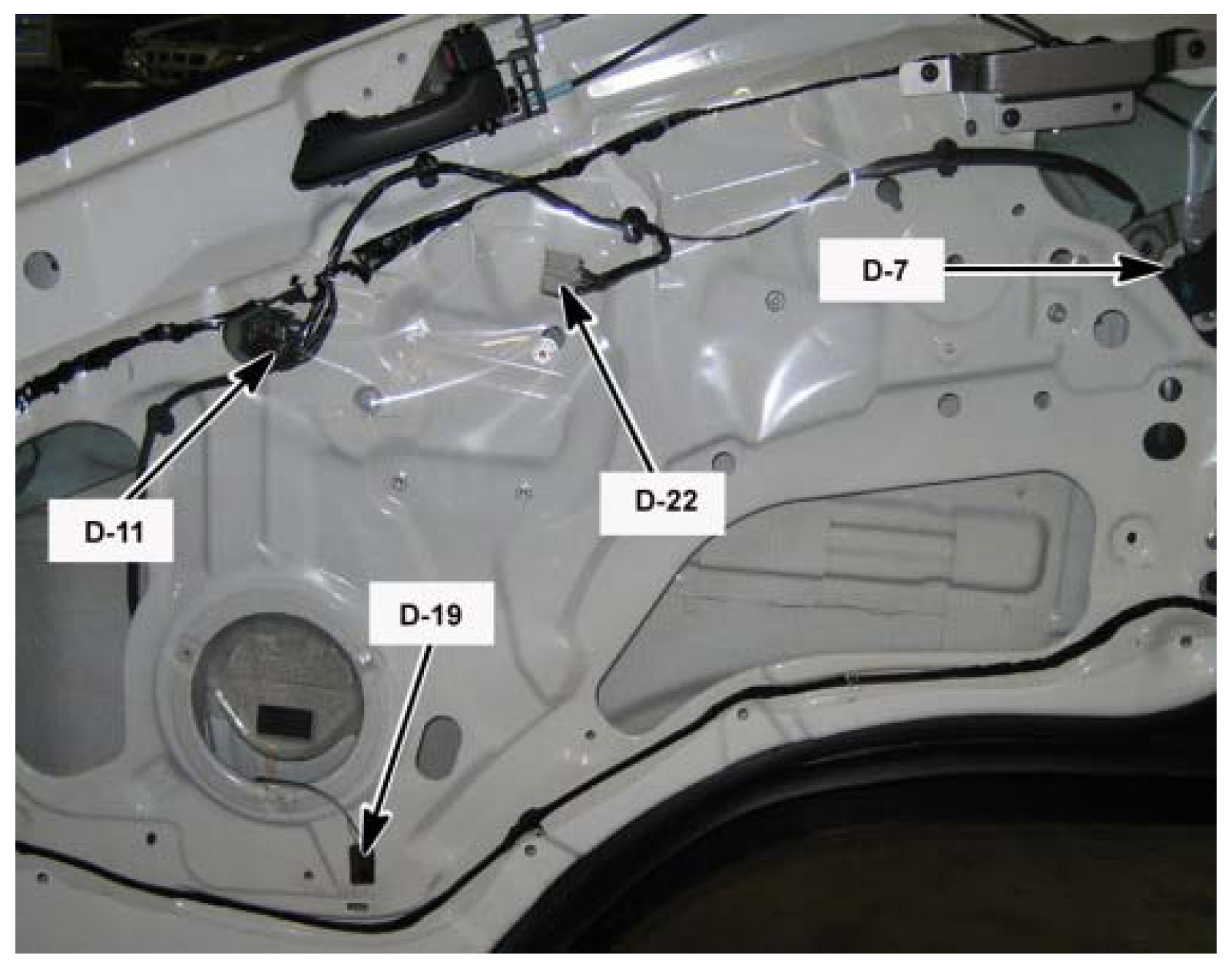

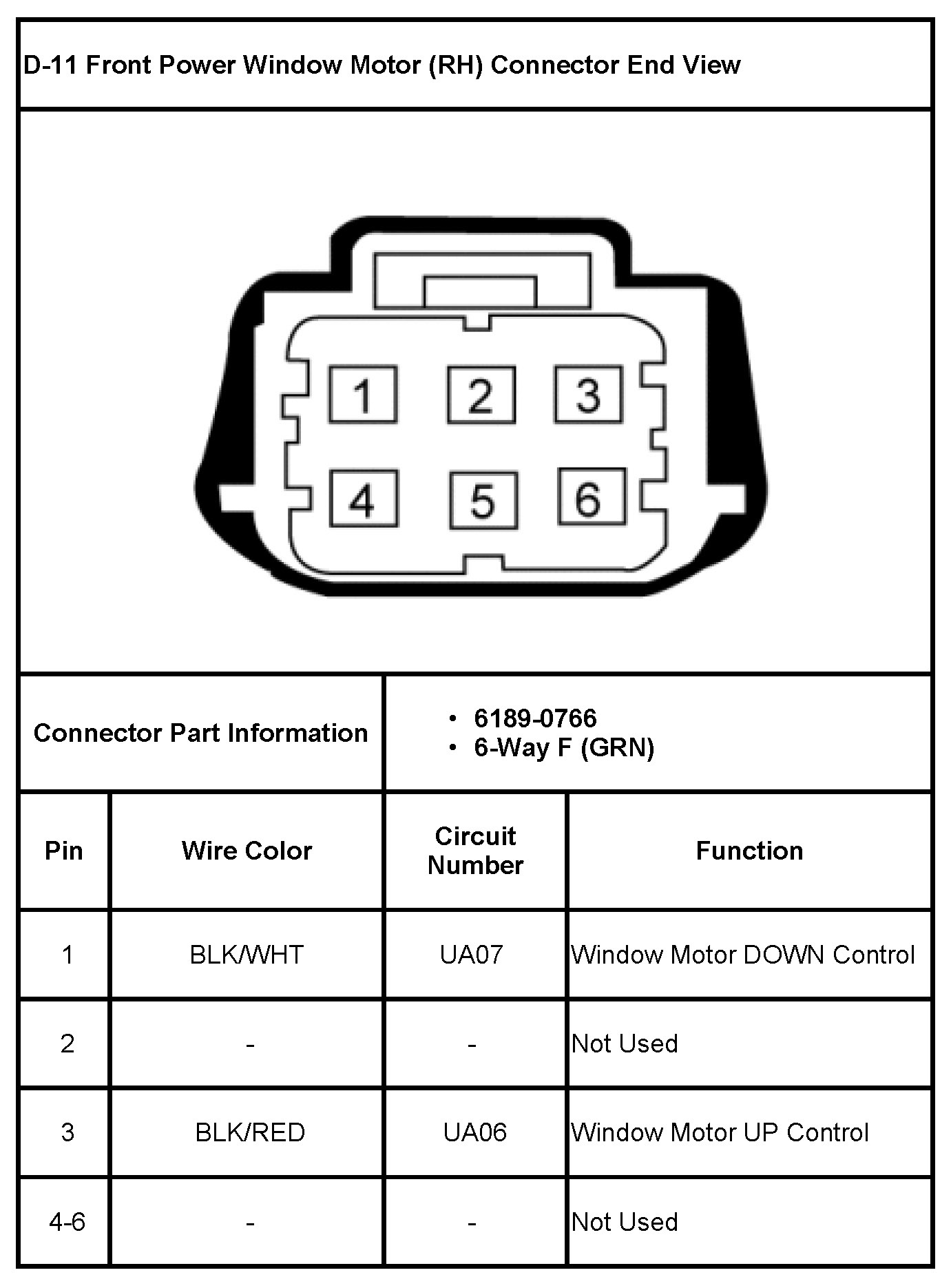

Front Power Window Motor (RH) (D-11)

In the Right Front Door, On the Power Window Motor
