Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-72
B-72

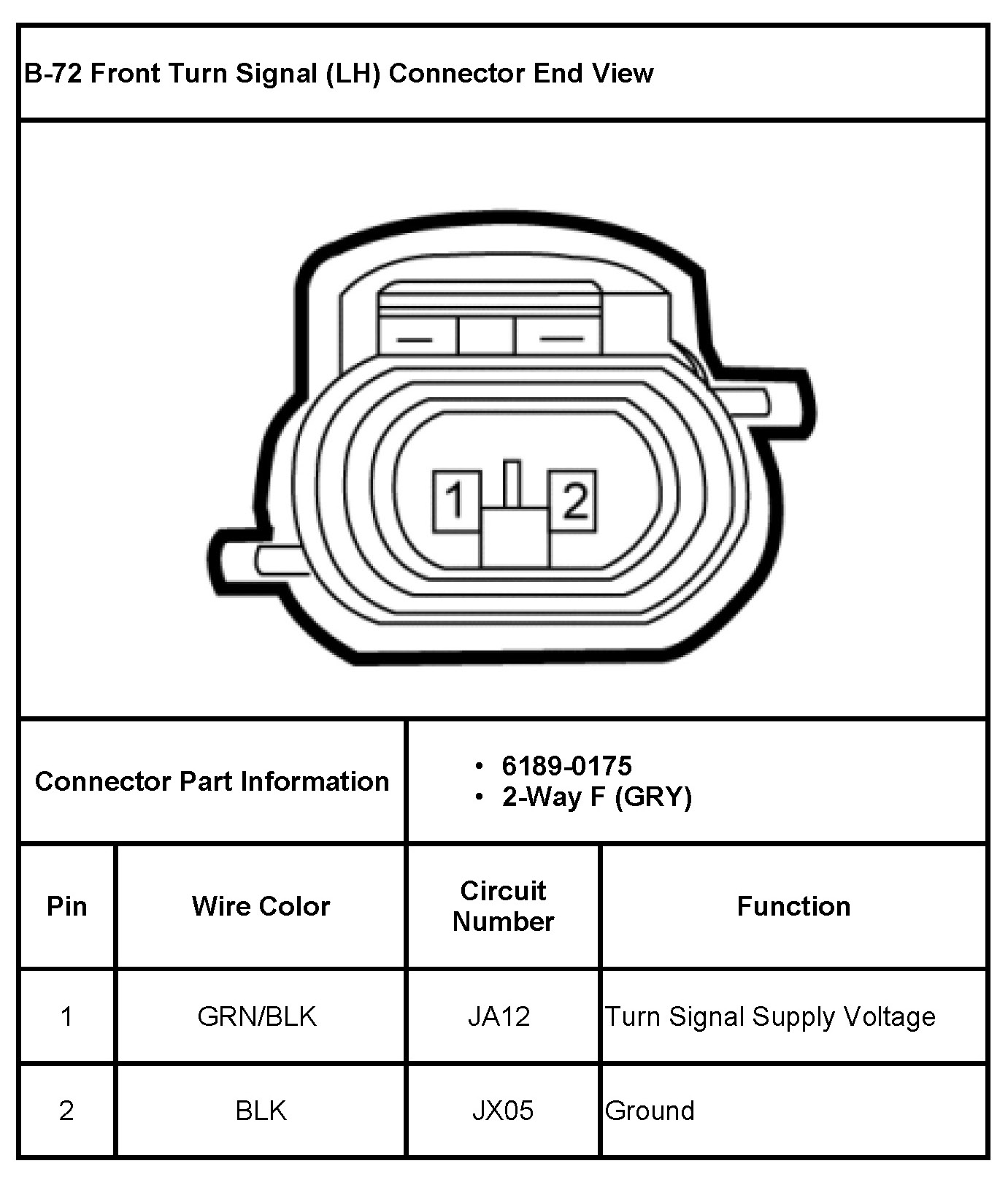

B-72 Front Turn Signal (LH)
On the Front Left Corner of Vehicle, Behind the Lamp Assembly
