Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-59
B-59

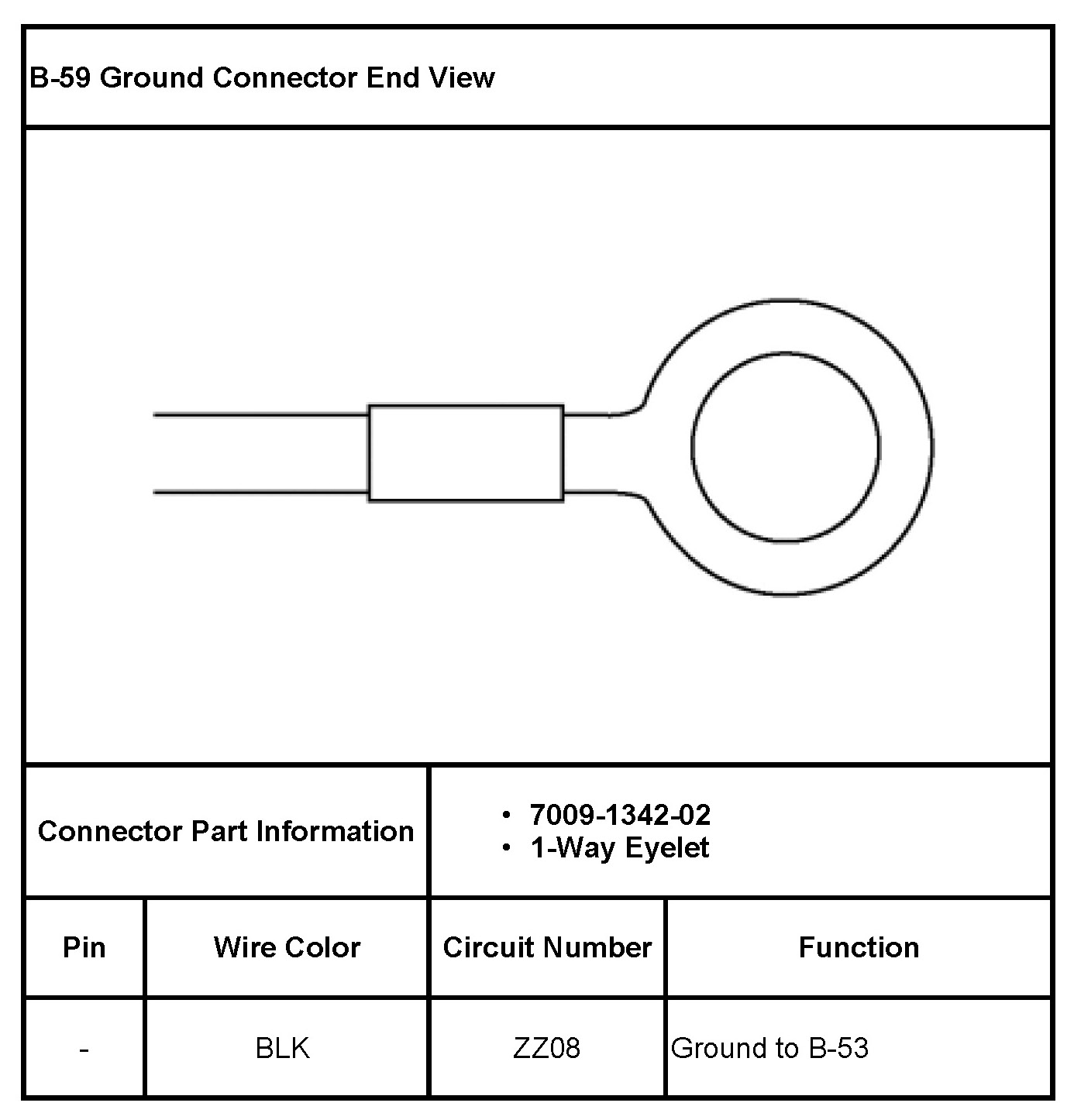

B-59 Ground

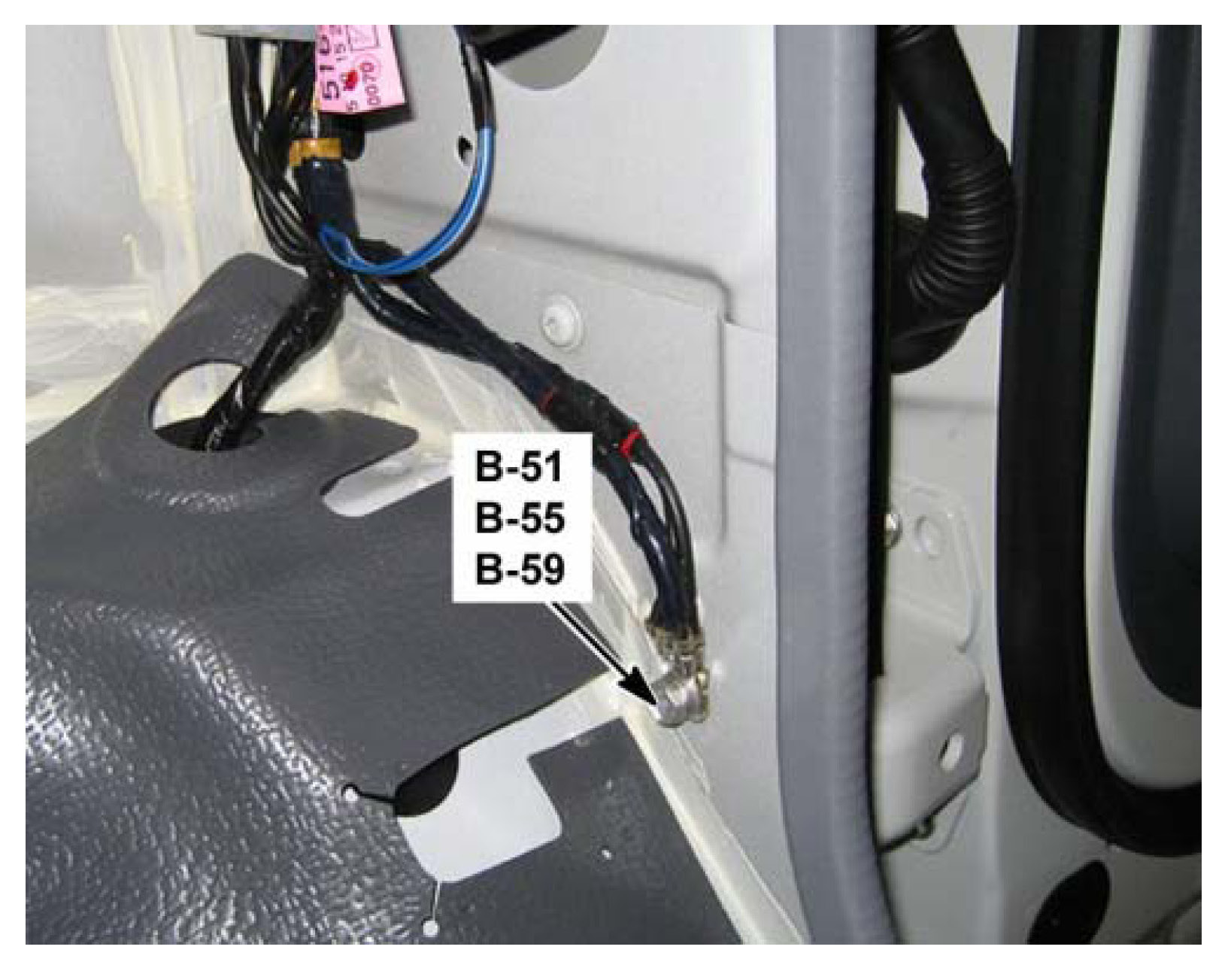

Behind the Right Side of the I/P, On the Interior Wall of the Right A-Pillar
