B-5
B-5

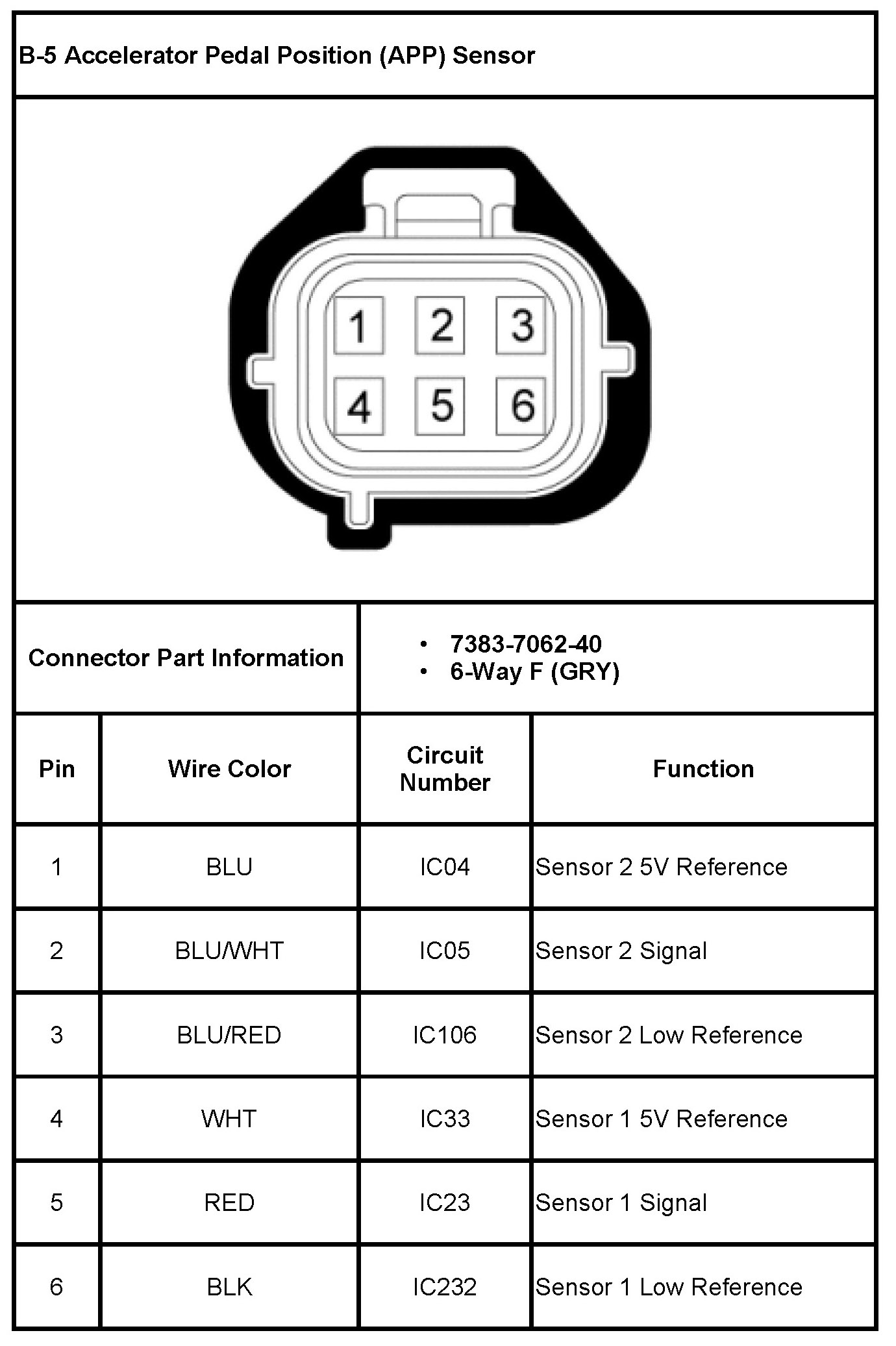

B-5 Accelerator Pedal Position (APP) Sensor
Behind the Left Side of the I/P, Right of the Steering Column, Above the Accelerator Pedal
