Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-412
B-412

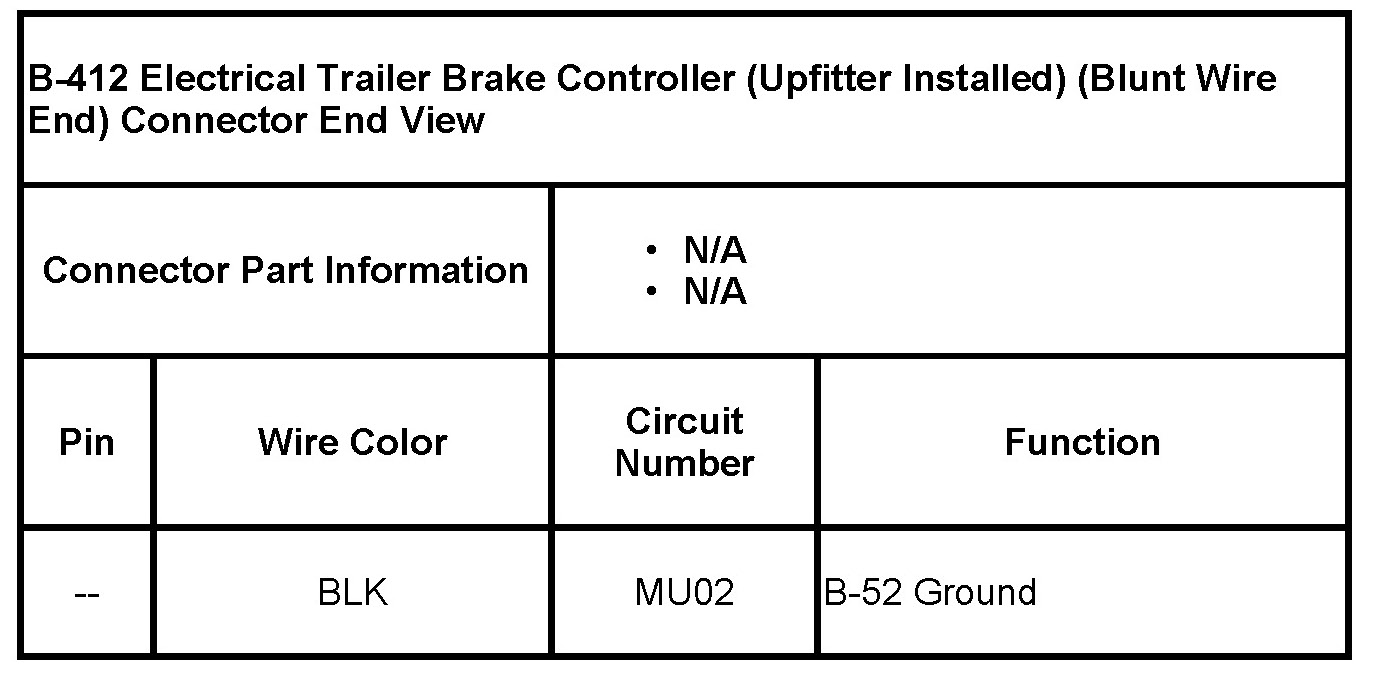

B-412 Electrical Trailer Brake Controller (Upfitter Installed) (Blunt Wire End)

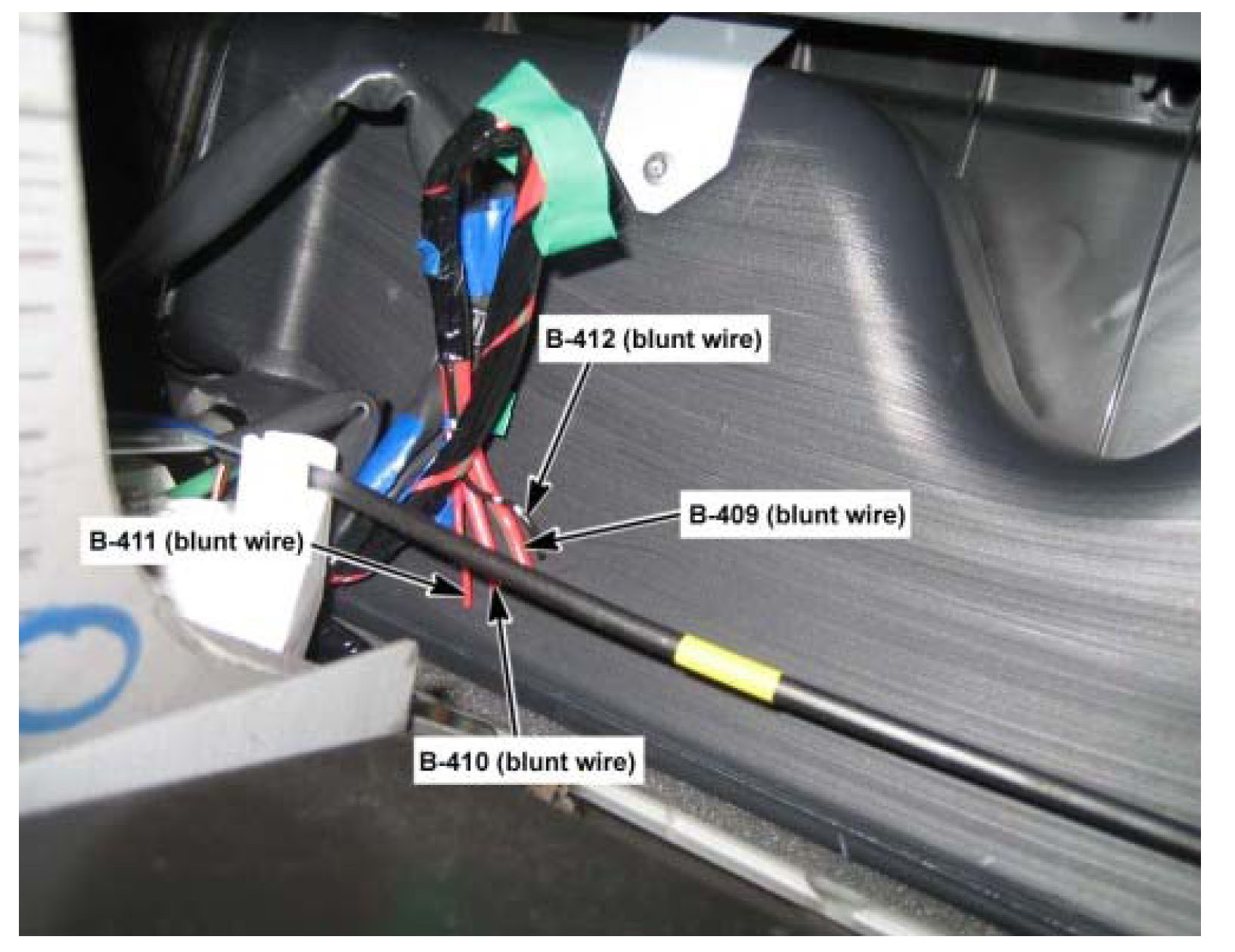

Center of I/P, Behind the Radio
