Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-410
B-410

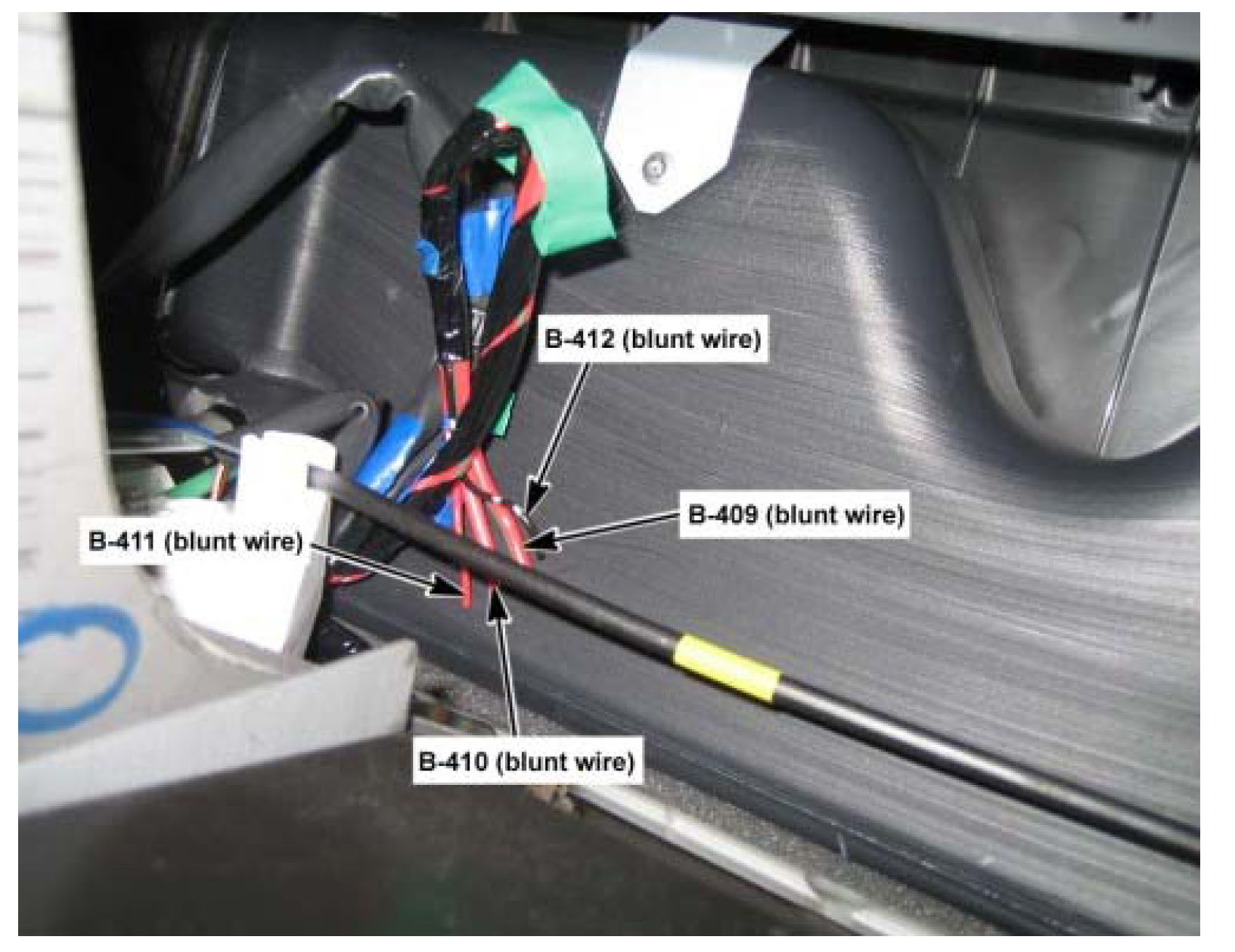

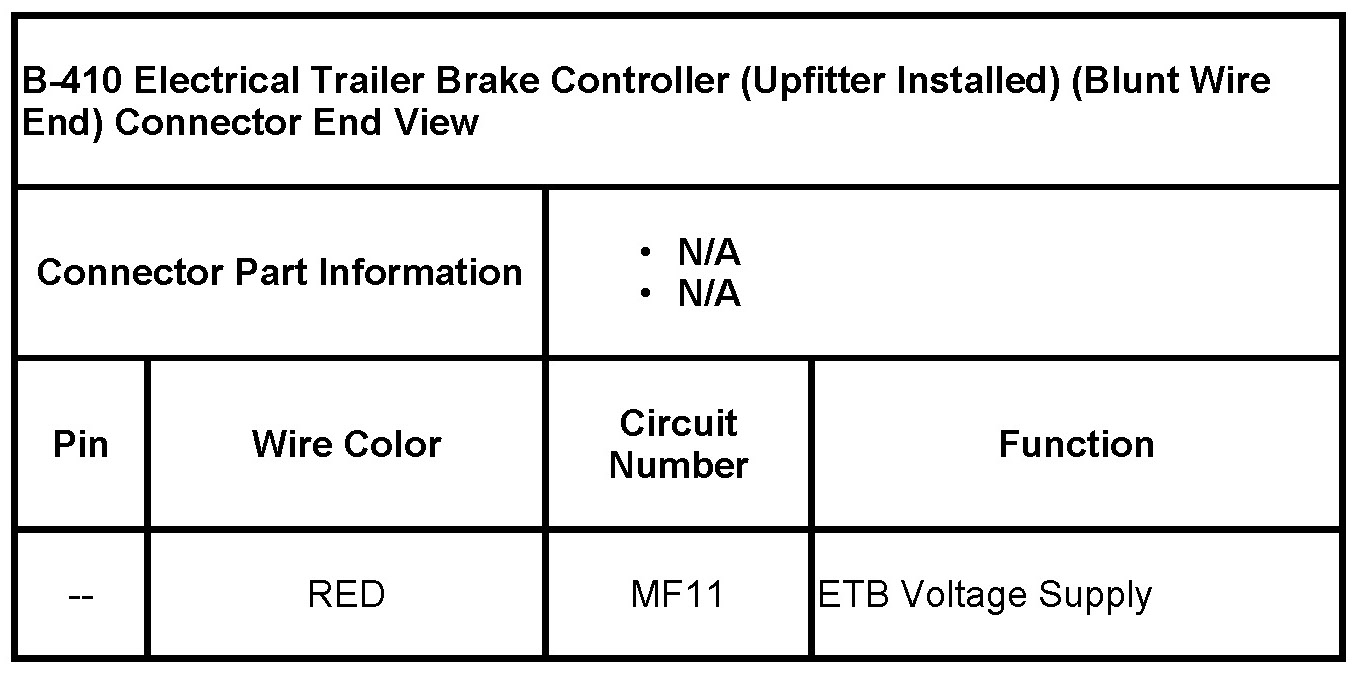

B-410 Electrical Trailer Brake Controller (Upfitter Installed) (Blunt Wire End)
Center of I/P, Behind the Radio
