B-405
B-405

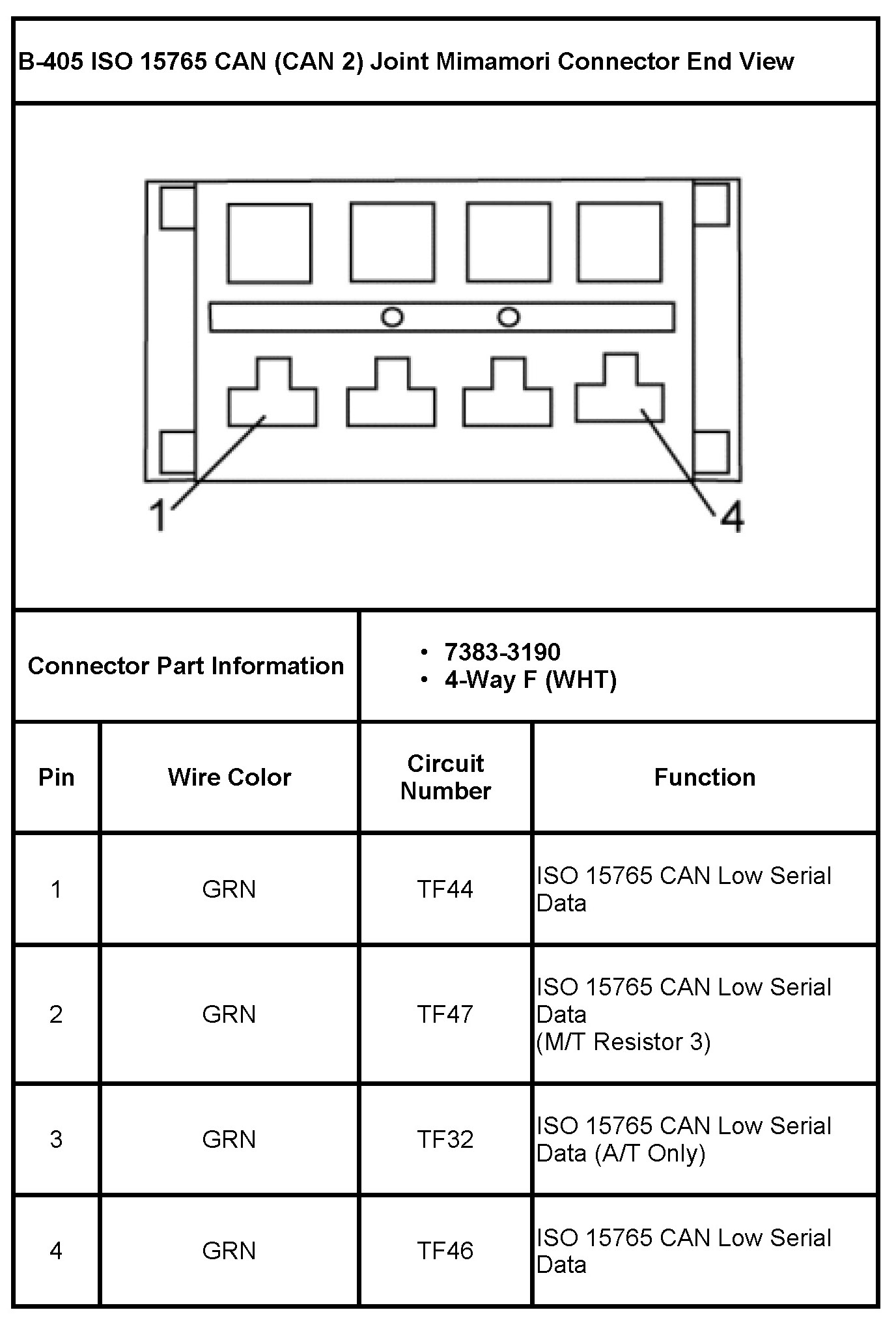

B-405 ISO 15765 CAN (CAN 2) Joint Mimamori

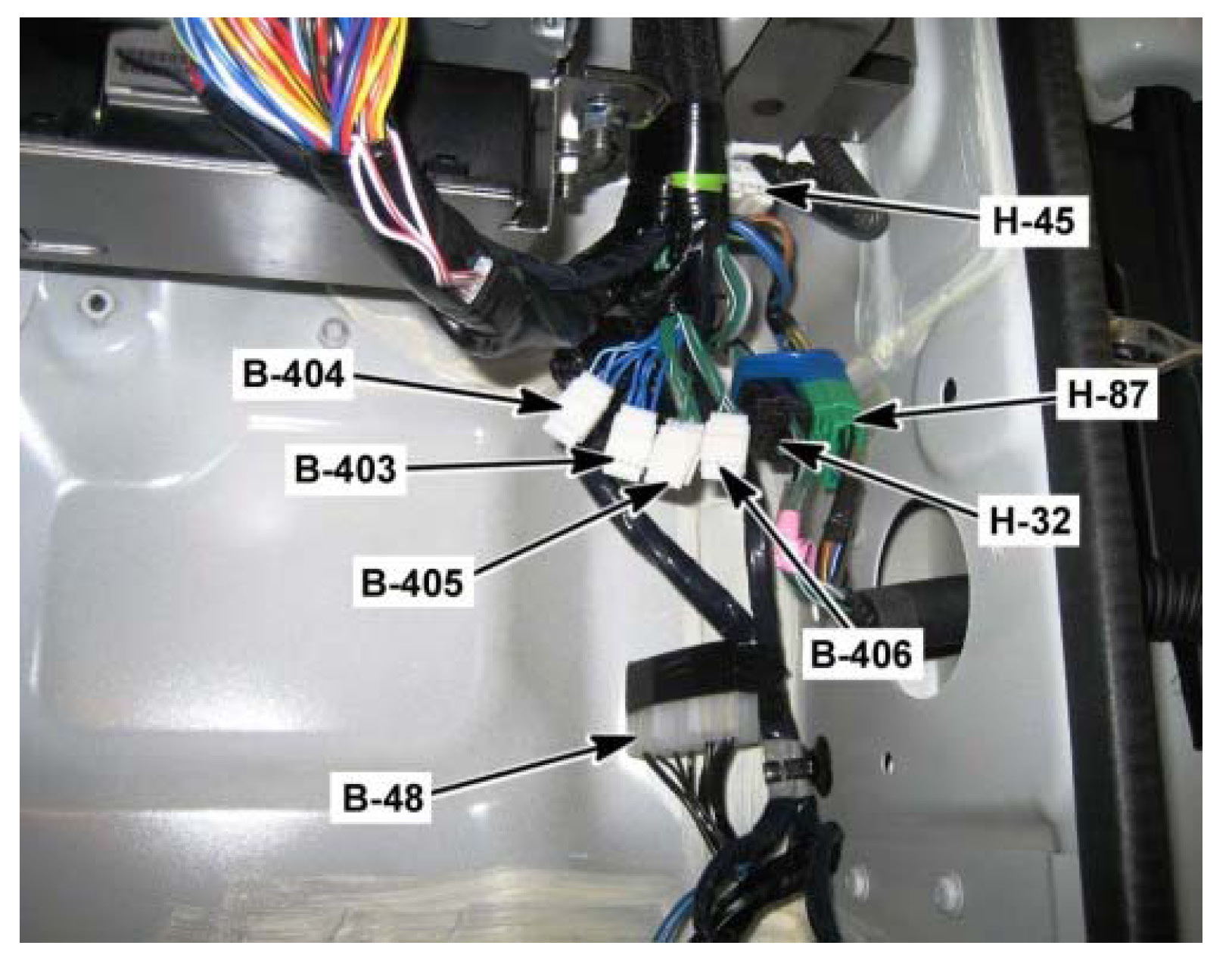

Behind the Glove Compartment On the Right Side, Next To The A-Pillar, Taped In Harness
