B-267
B-267

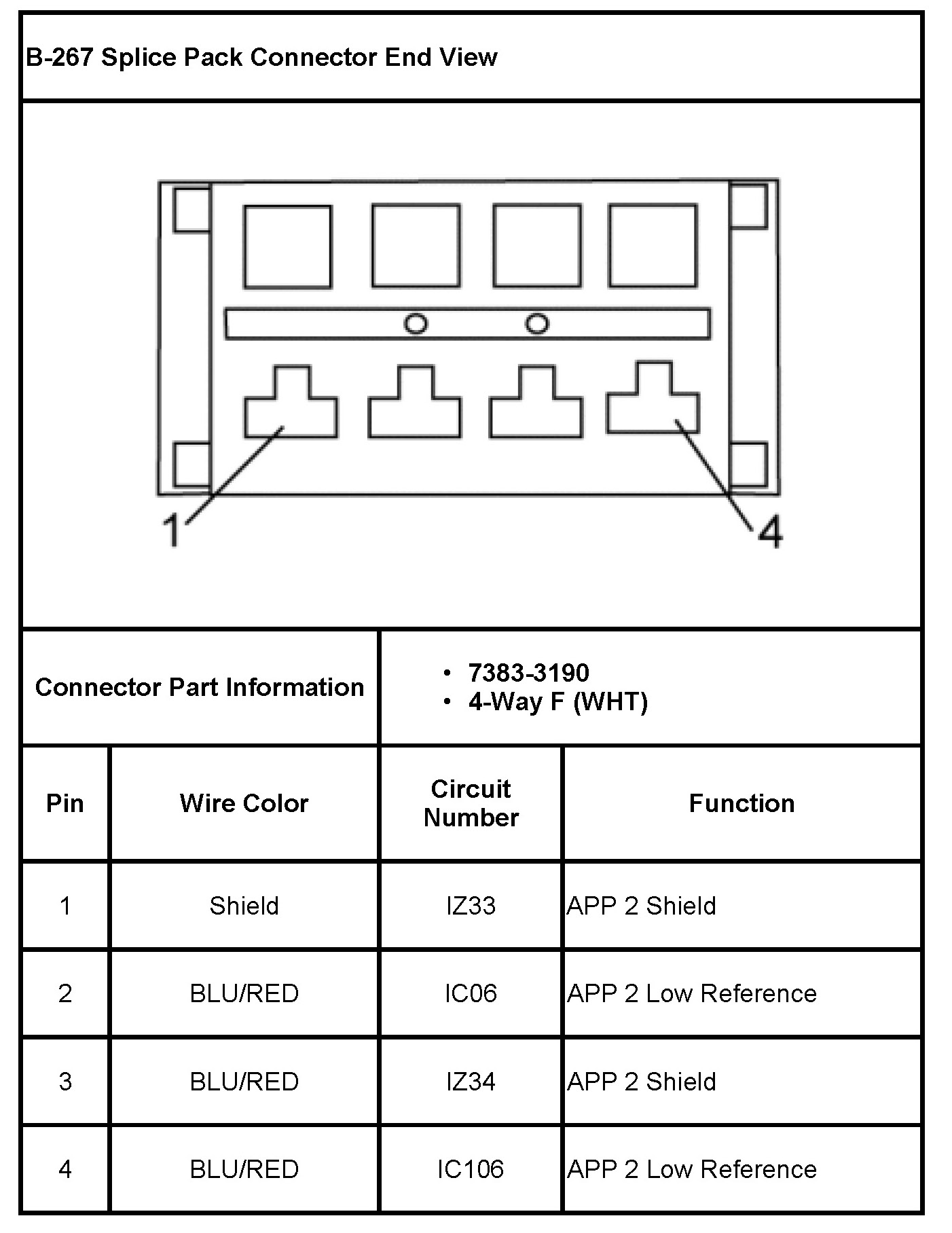

B-267 Splice Pack

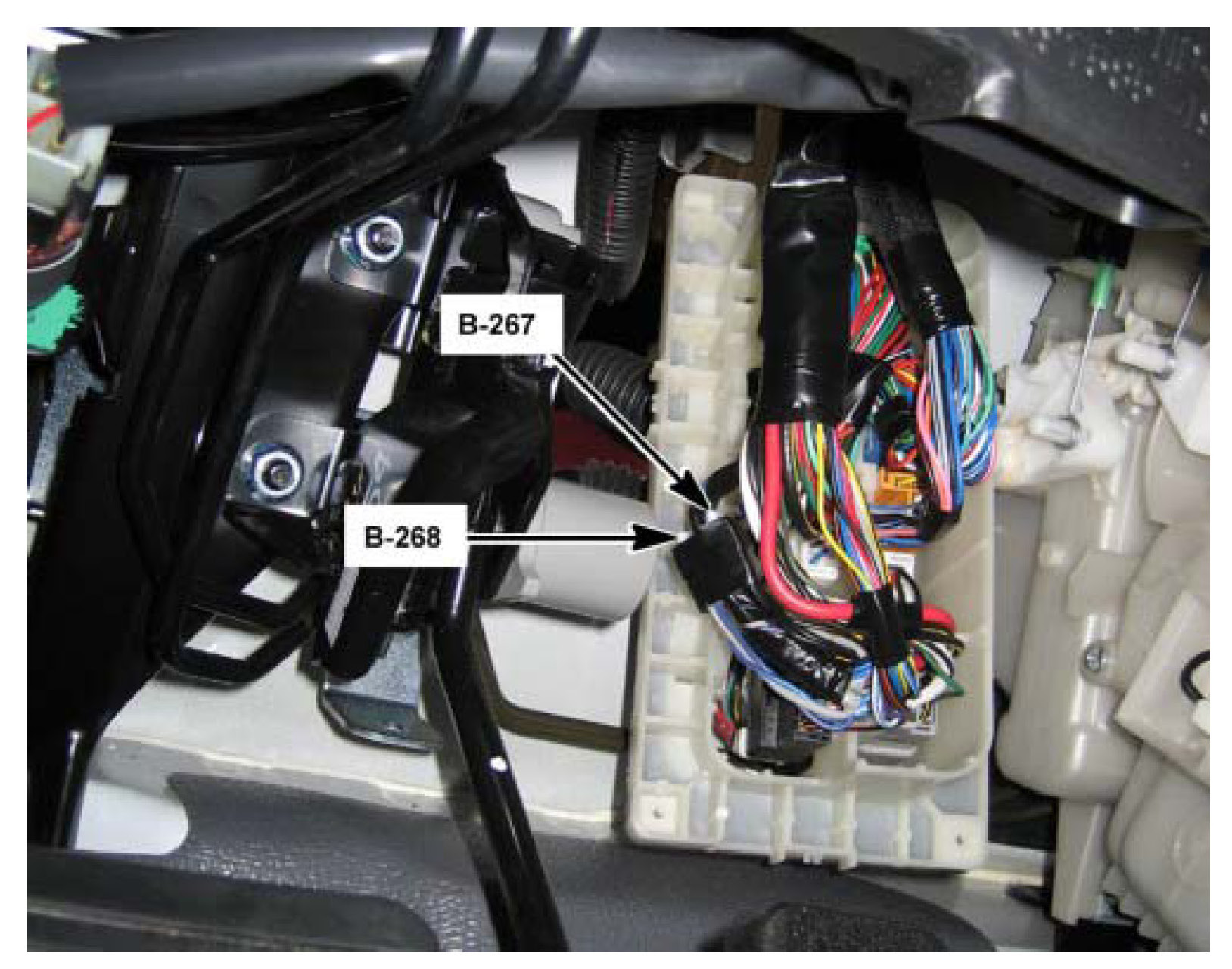

Under the Center of the I/P, Behind the Cover of the Bulkhead Connectors
