Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-244
B-244

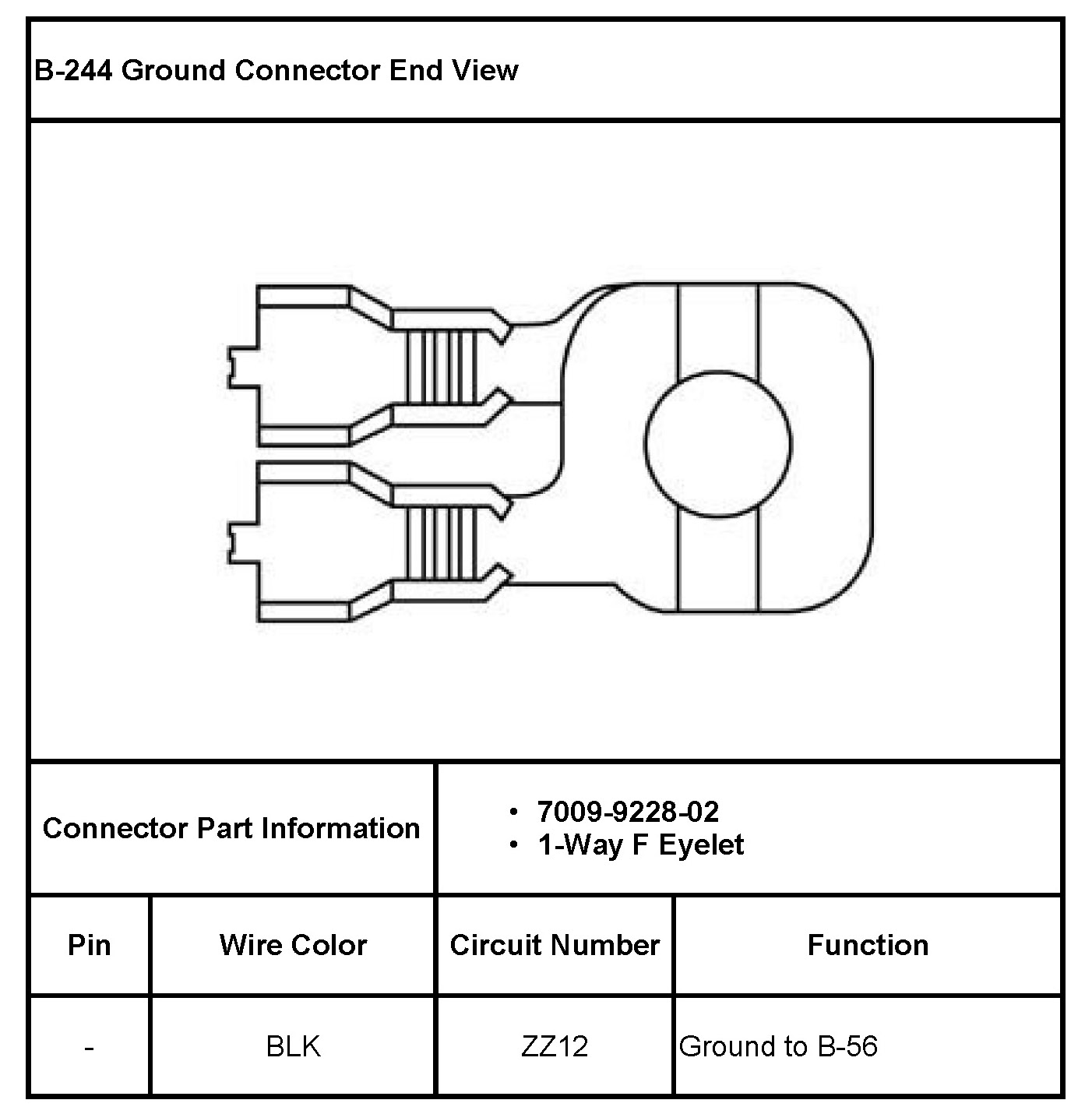

B-244 Ground

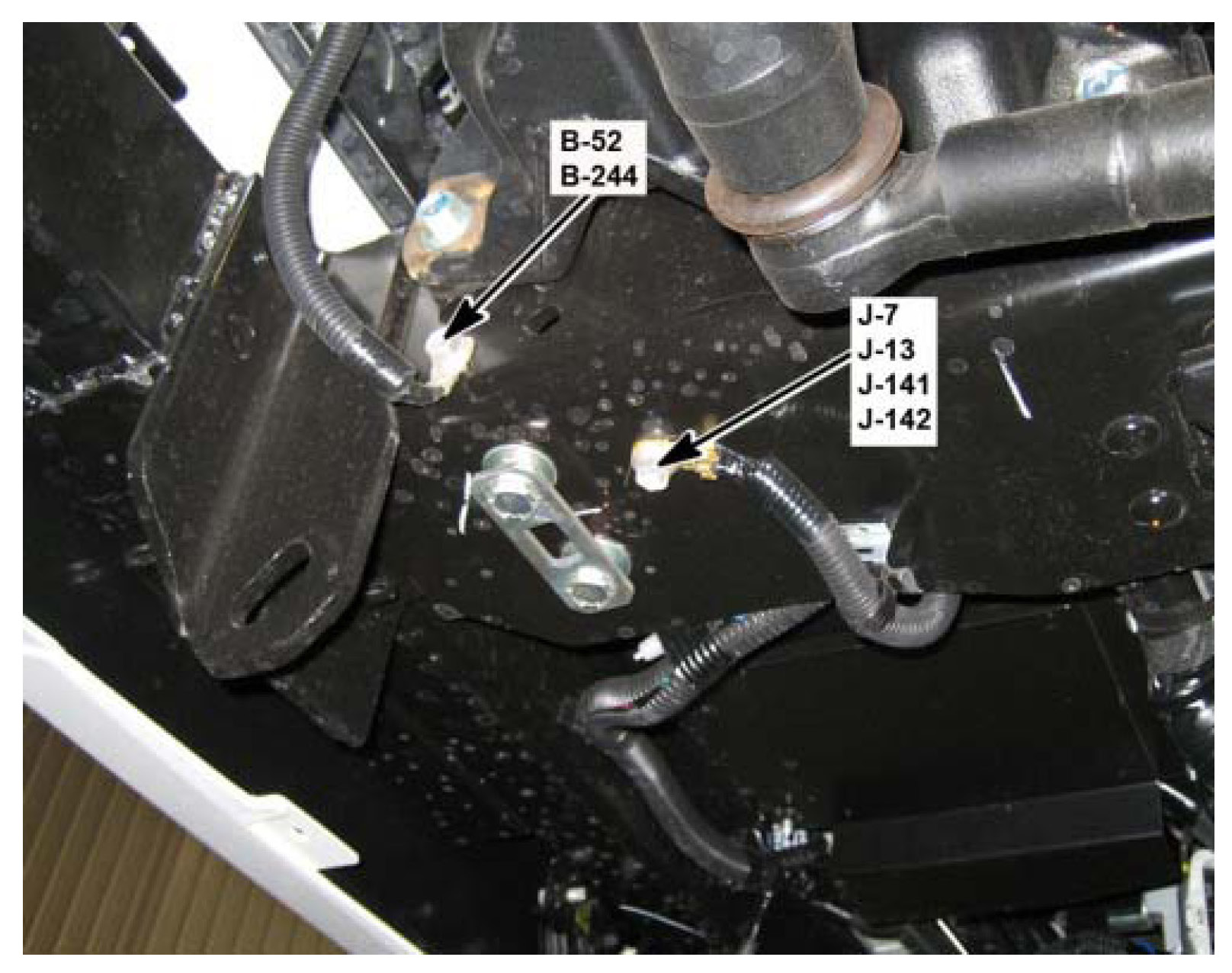

On the Front Left Frame Rail, Behind the Front Bumper
