Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-237
B-237

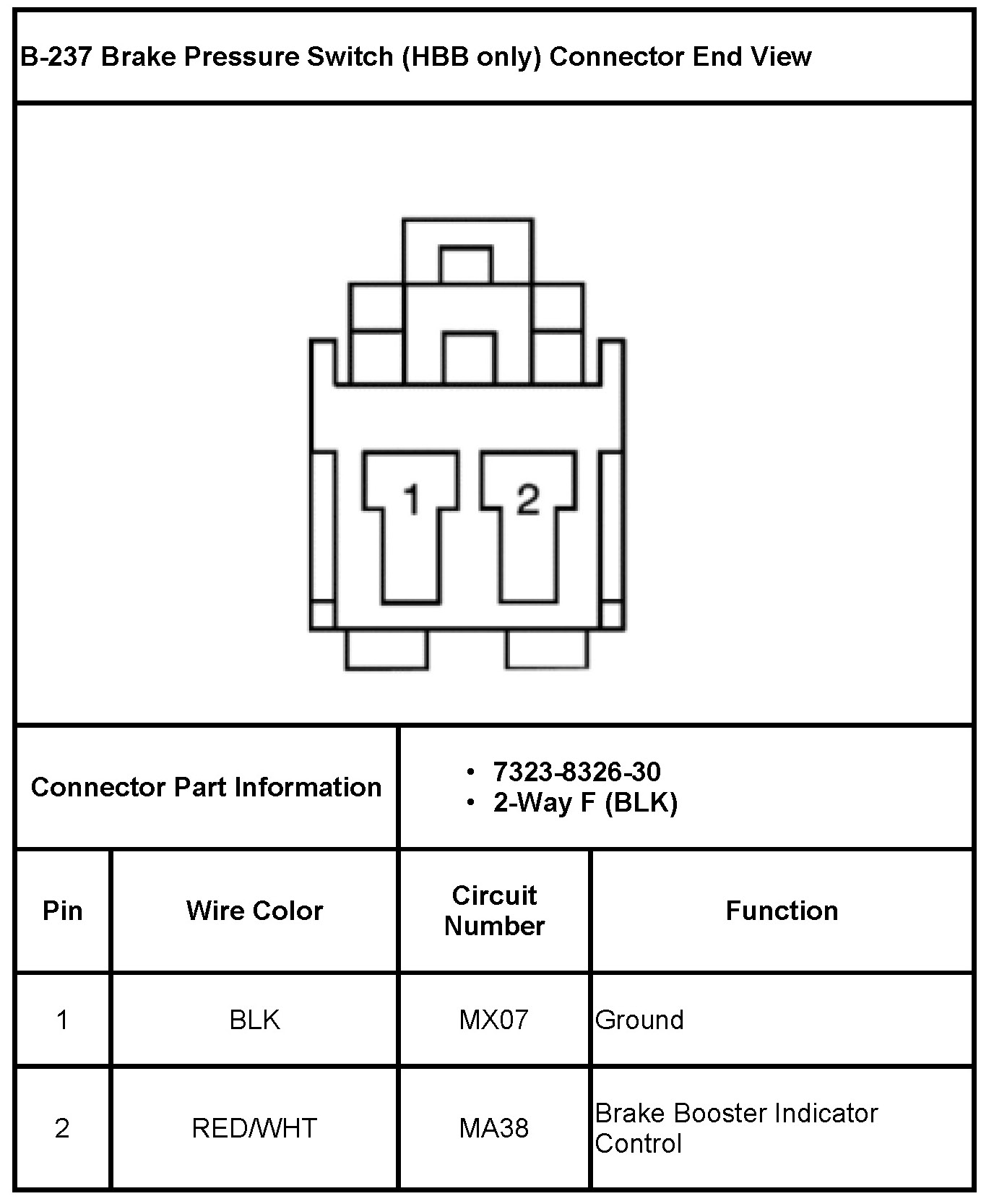

B-237 Brake Pressure Switch (HBB only)

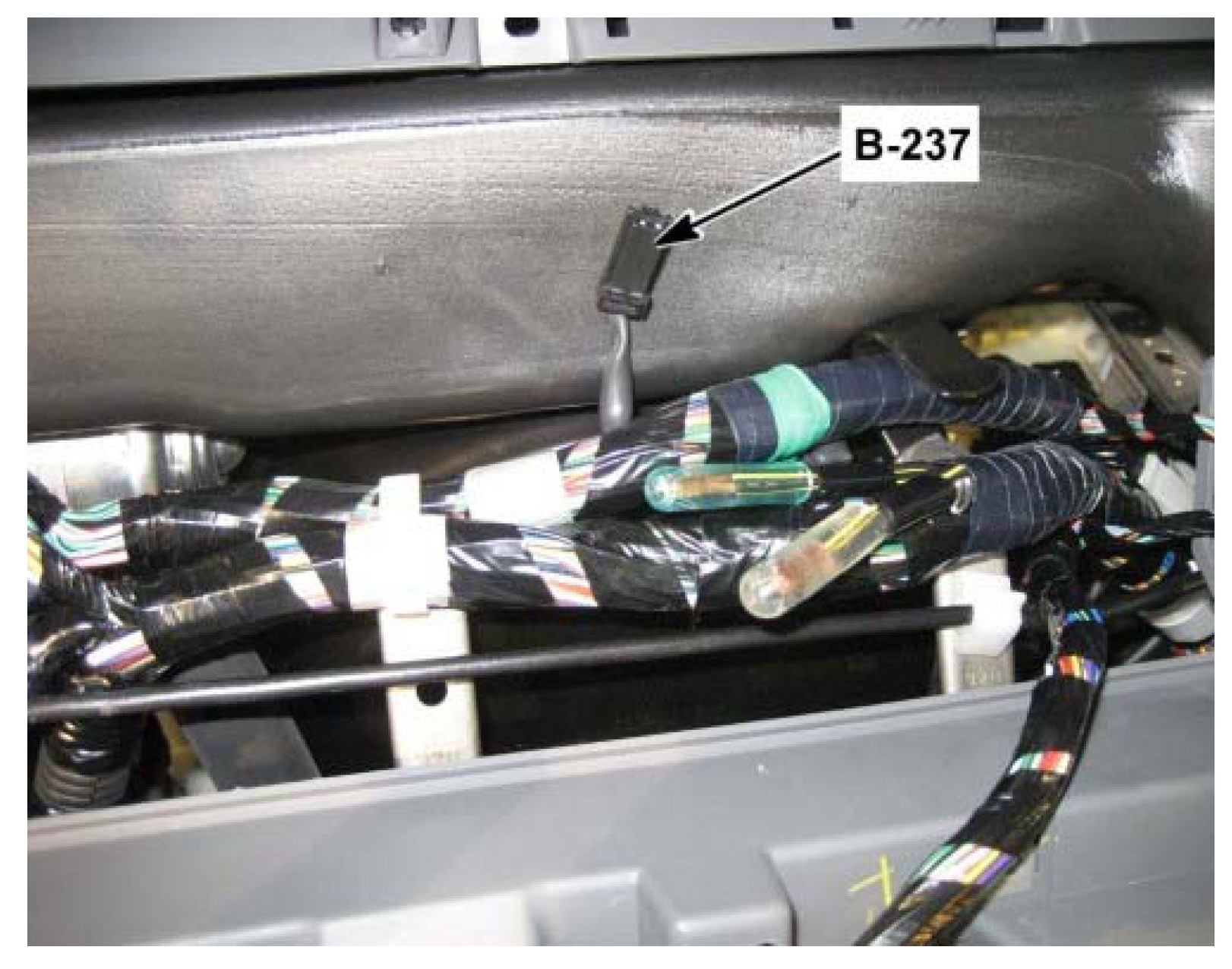

Behind the Right Side of the IPC

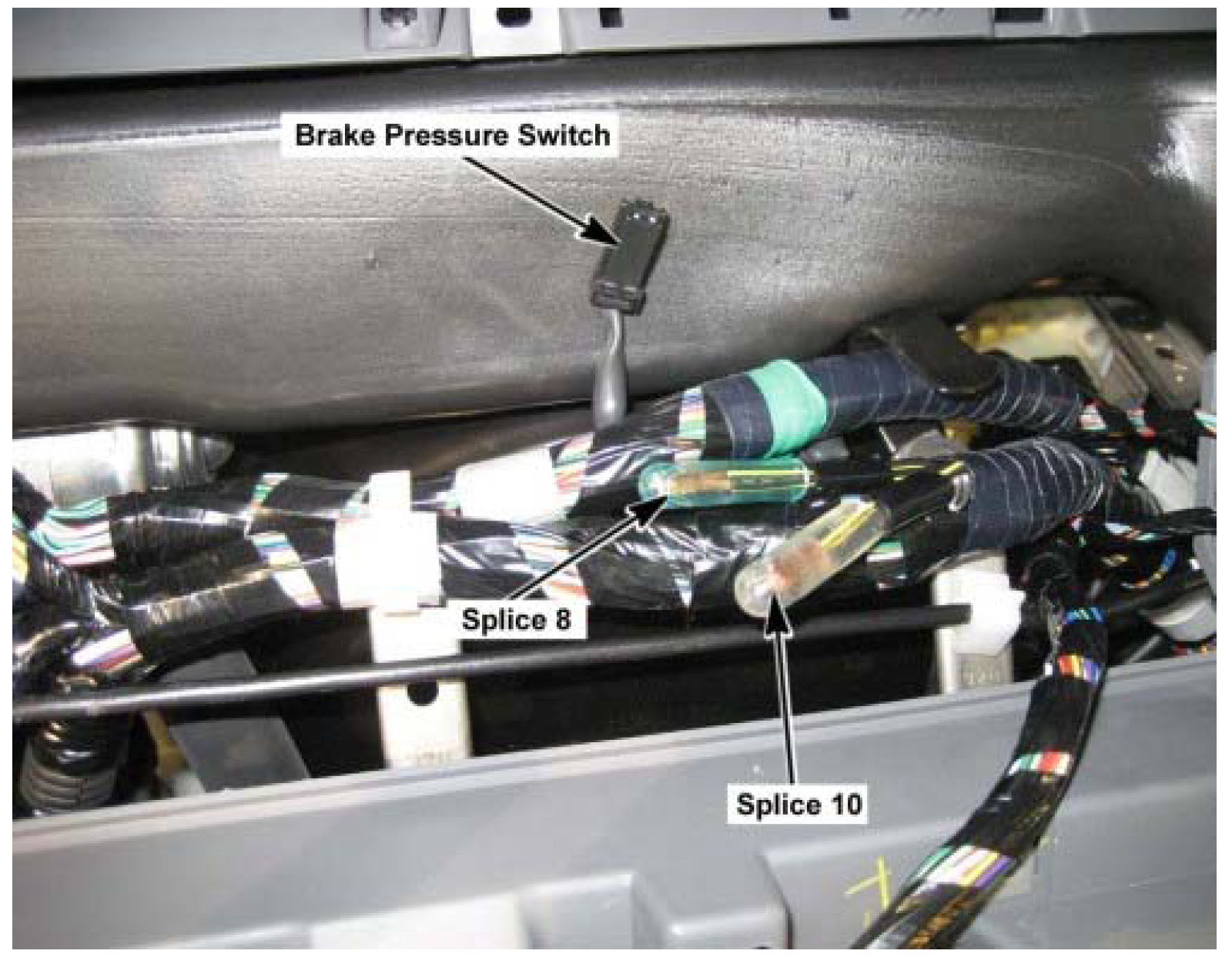

Brake Pressure Switch (B-237)
Behind the Right Side of the IPC
