Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-228
B-228

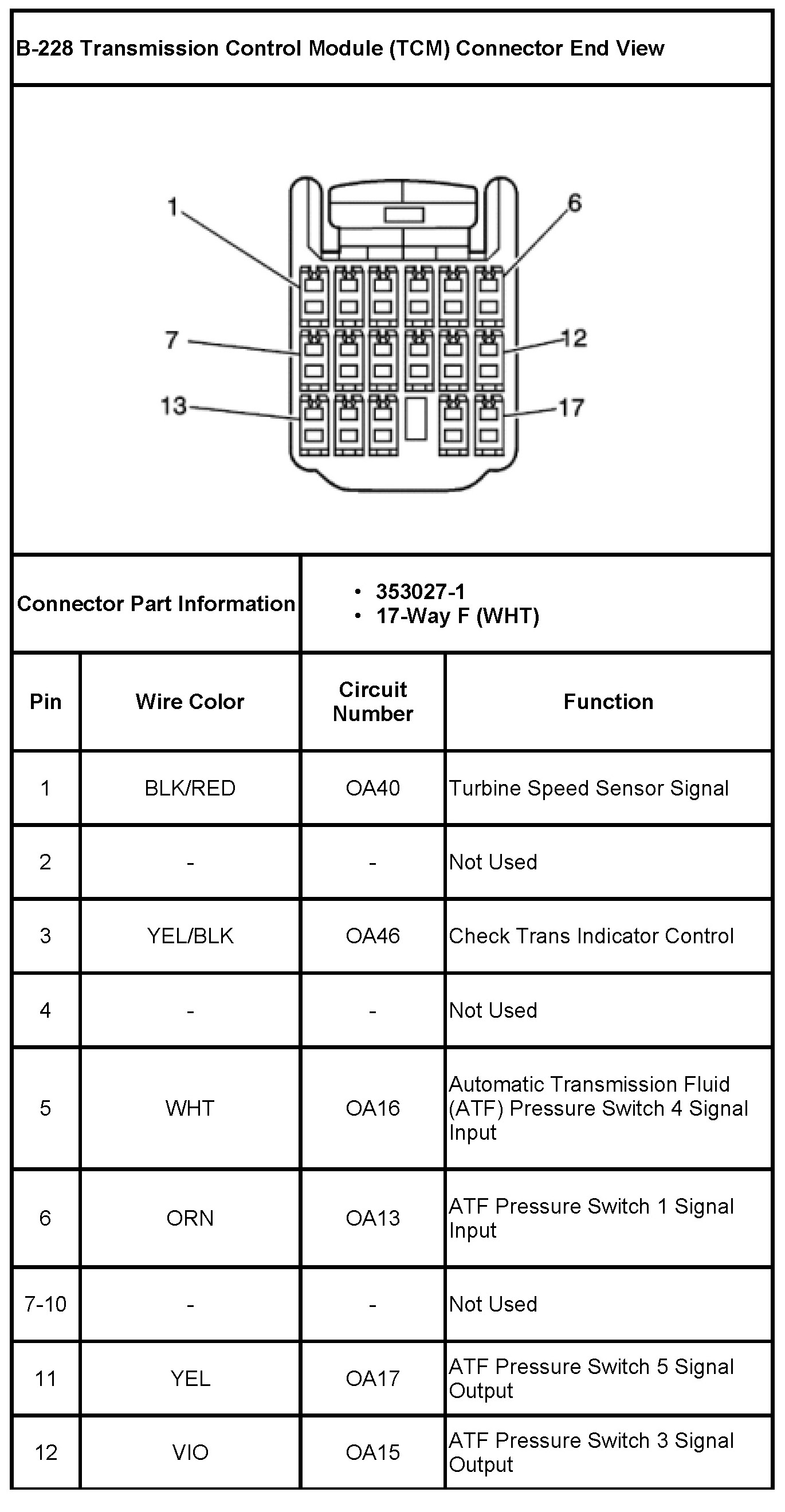

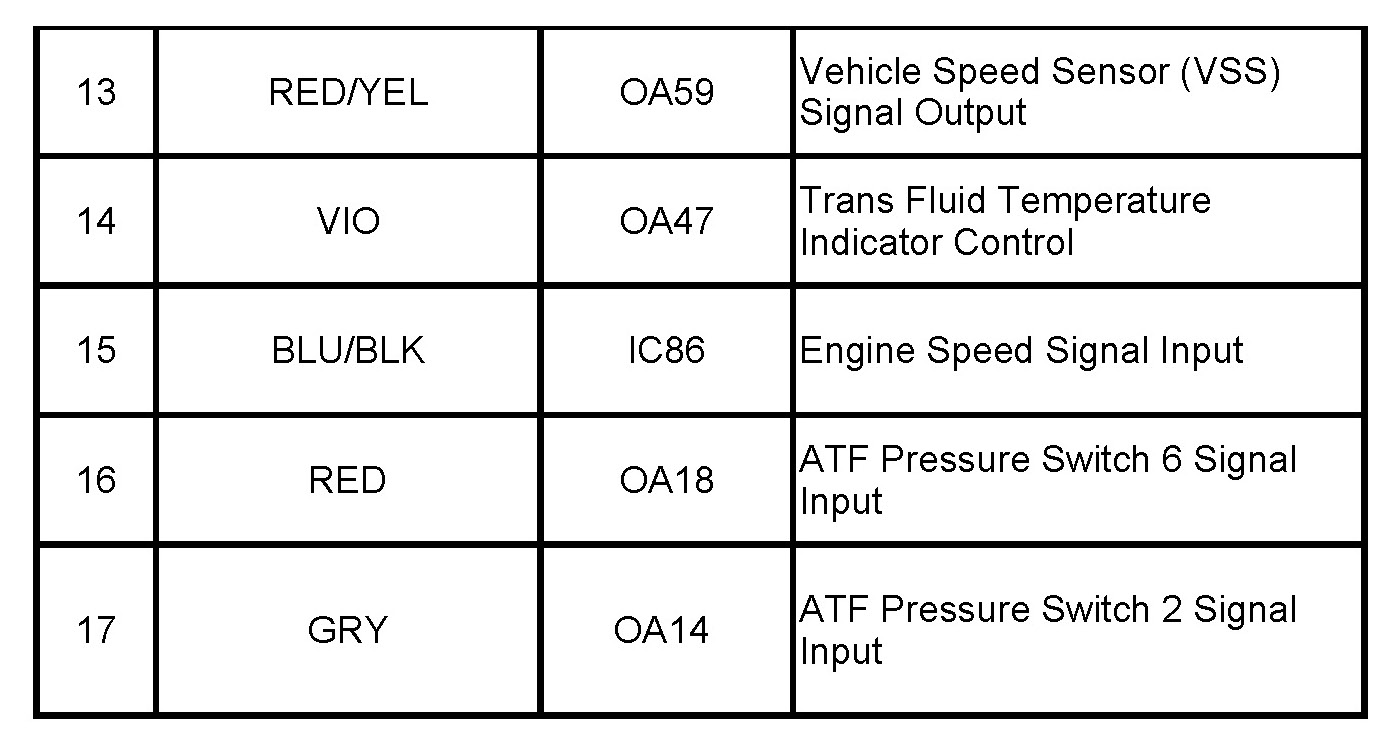

B-228 Transmission Control Module (TCM)

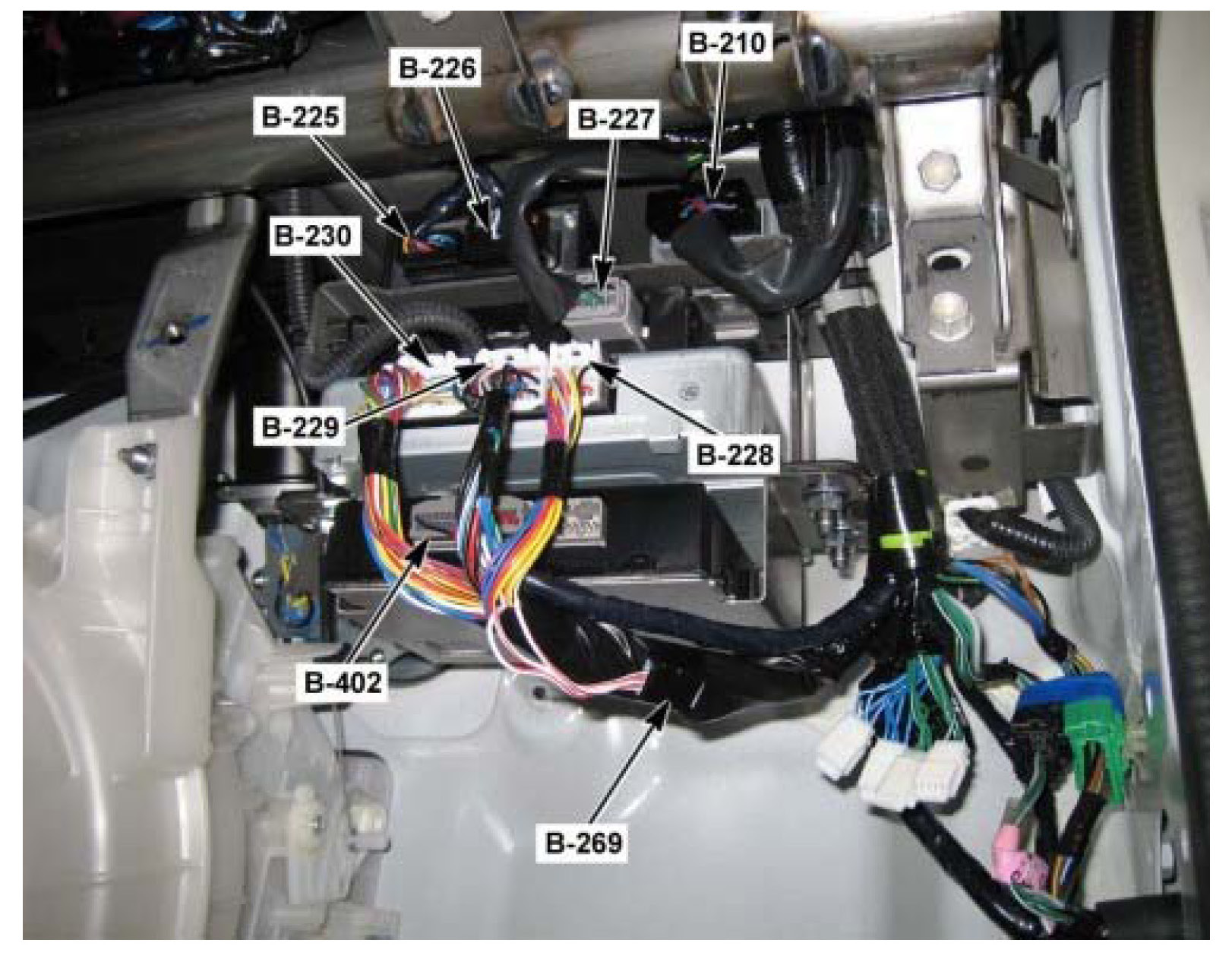

Behind the Right Side of the I/P, Under the Glove Compartment
