Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-22
B-22

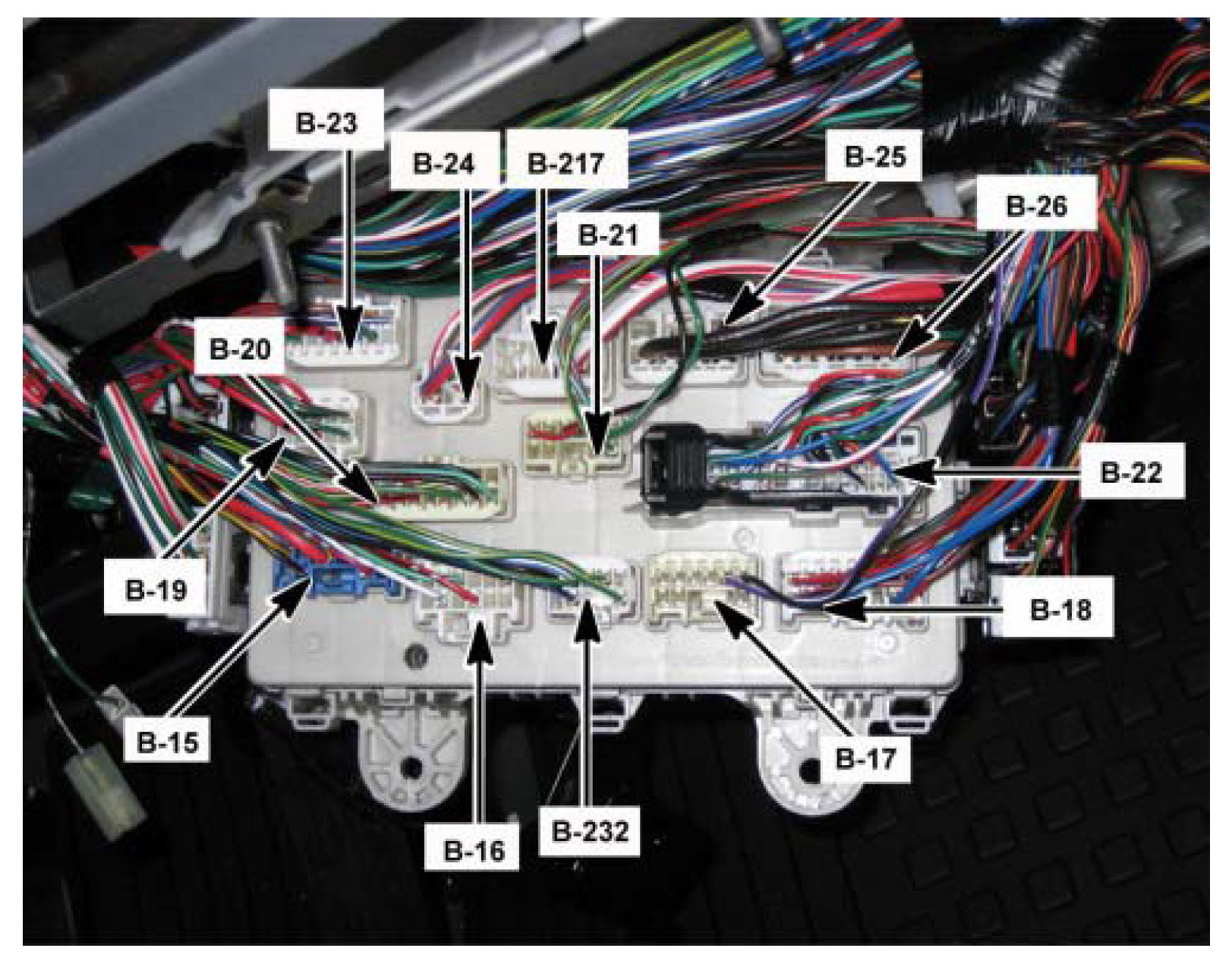

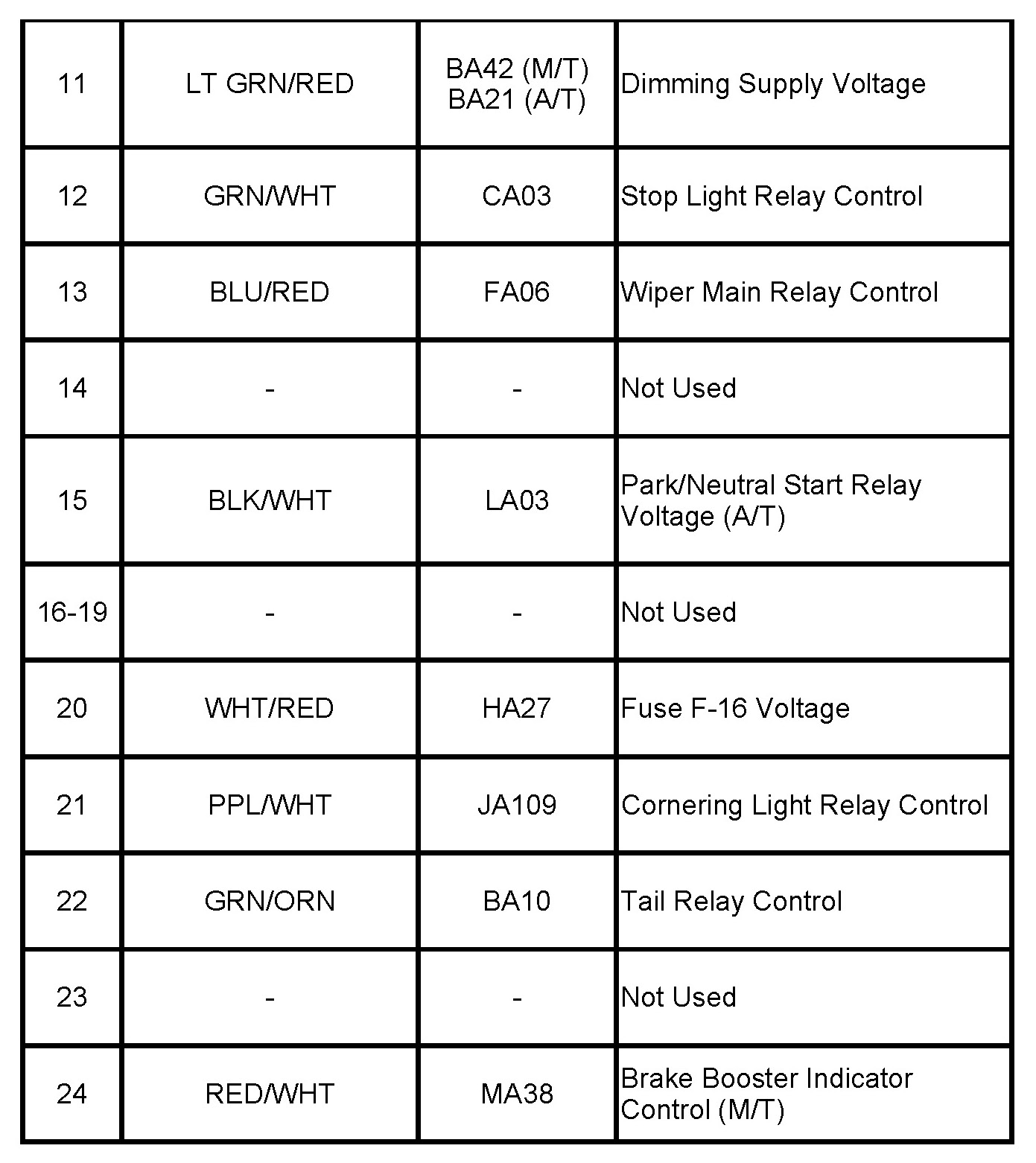

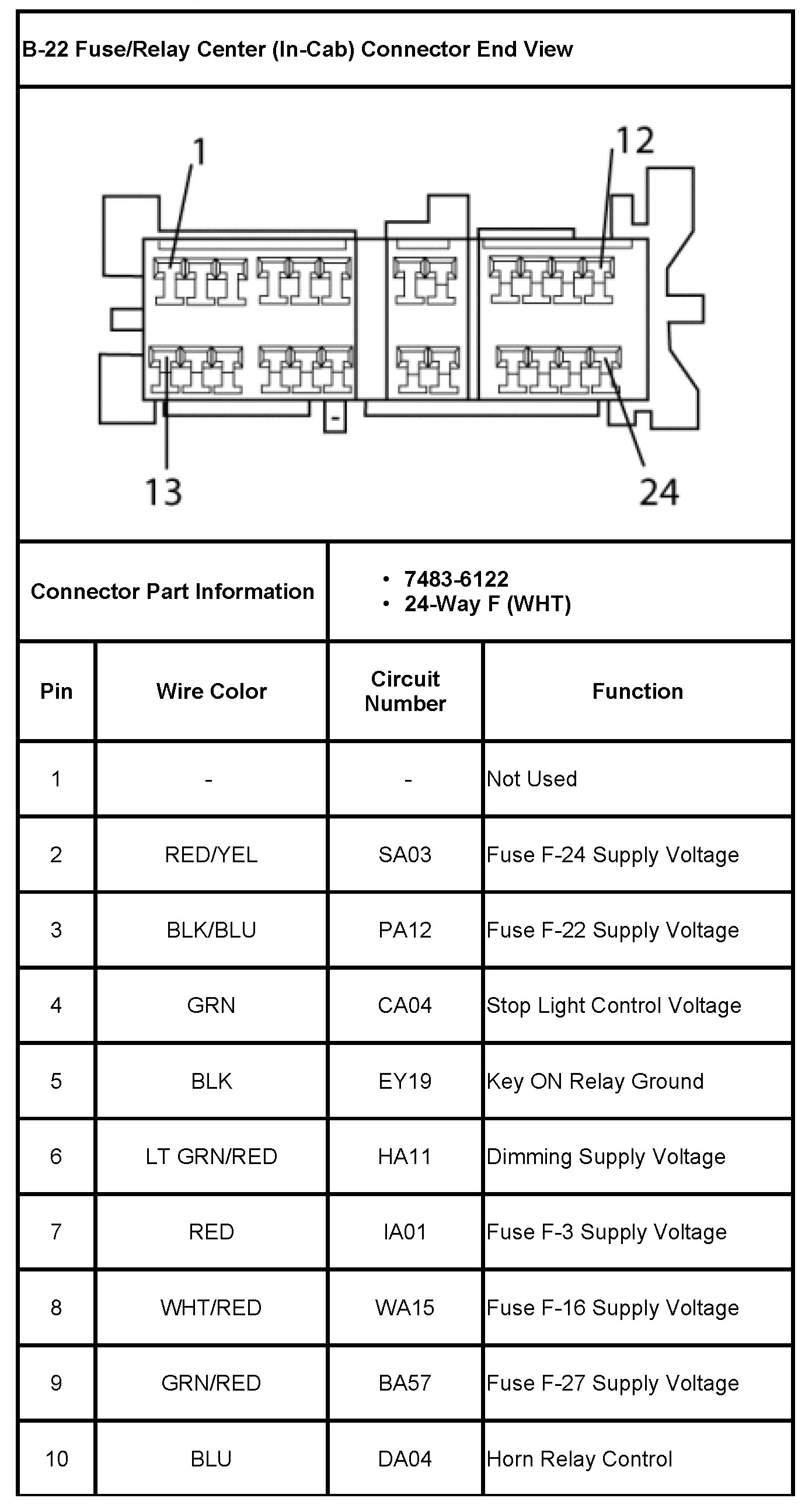

B-22 Fuse/Relay Center (In-Cab)
Behind the Center of the I/P
