Home >> Isuzu Truck >> 2011 >> Reach L4-3.0L DSL Turbo (4JJ1) >> Repair and Diagnosis >> Diagrams >> Connectors >> B-187

B-187

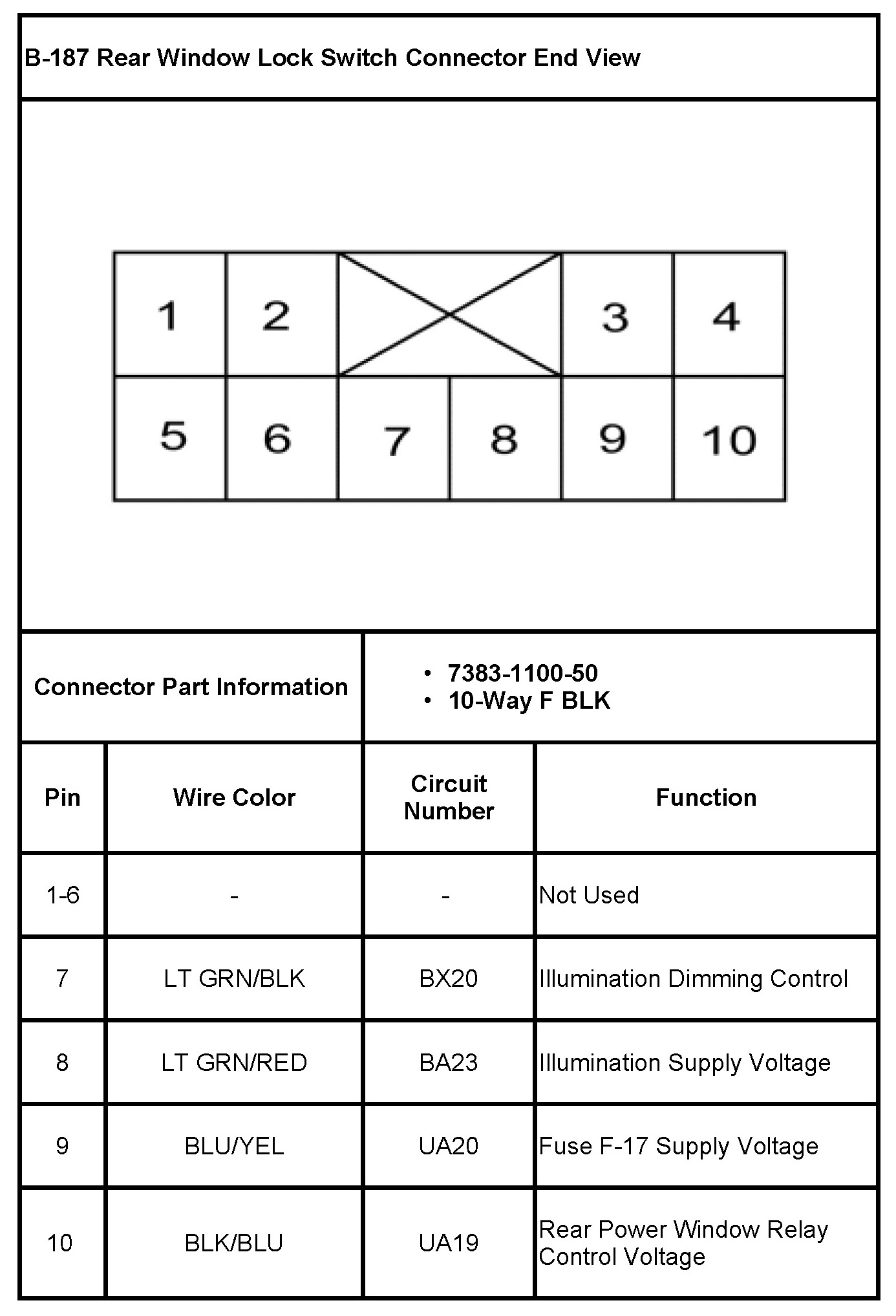

B-187 Rear Window Lock Switch
