Isuzu Truck
>>
2011
>>
Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-17
B-17

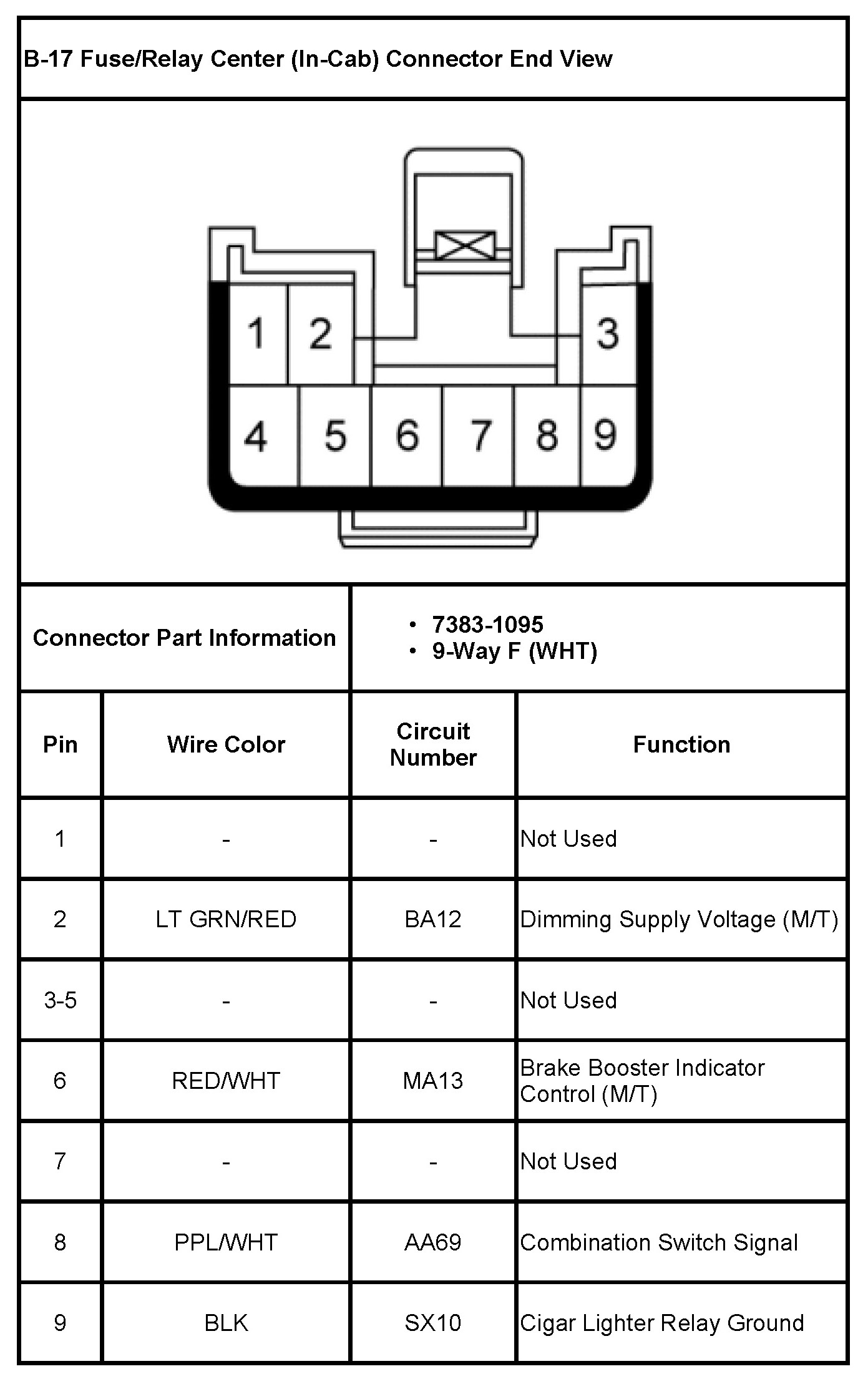

B-17 Fuse/Relay Center (In-Cab)

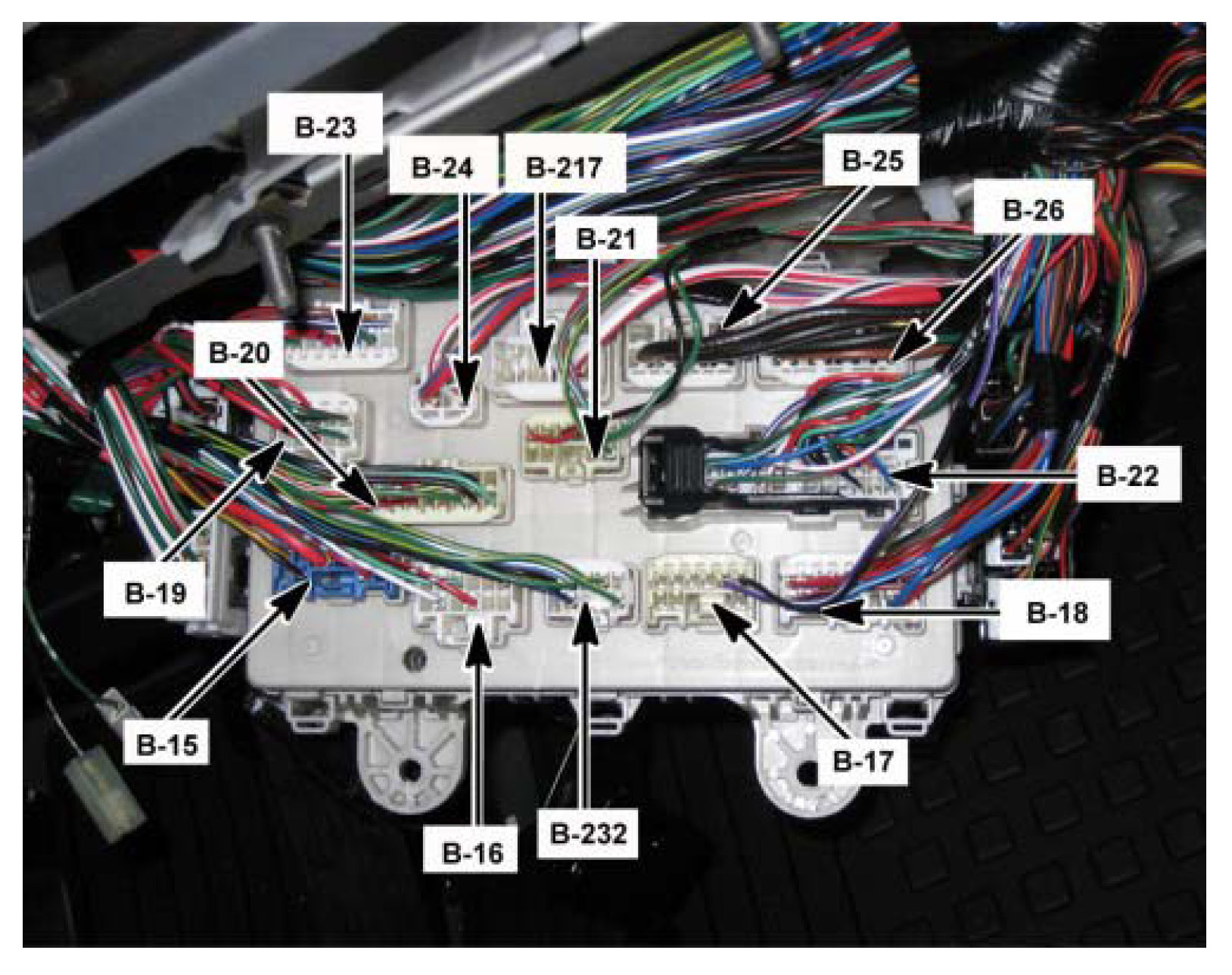

Behind the Center of the I/P
