B-161
B-161

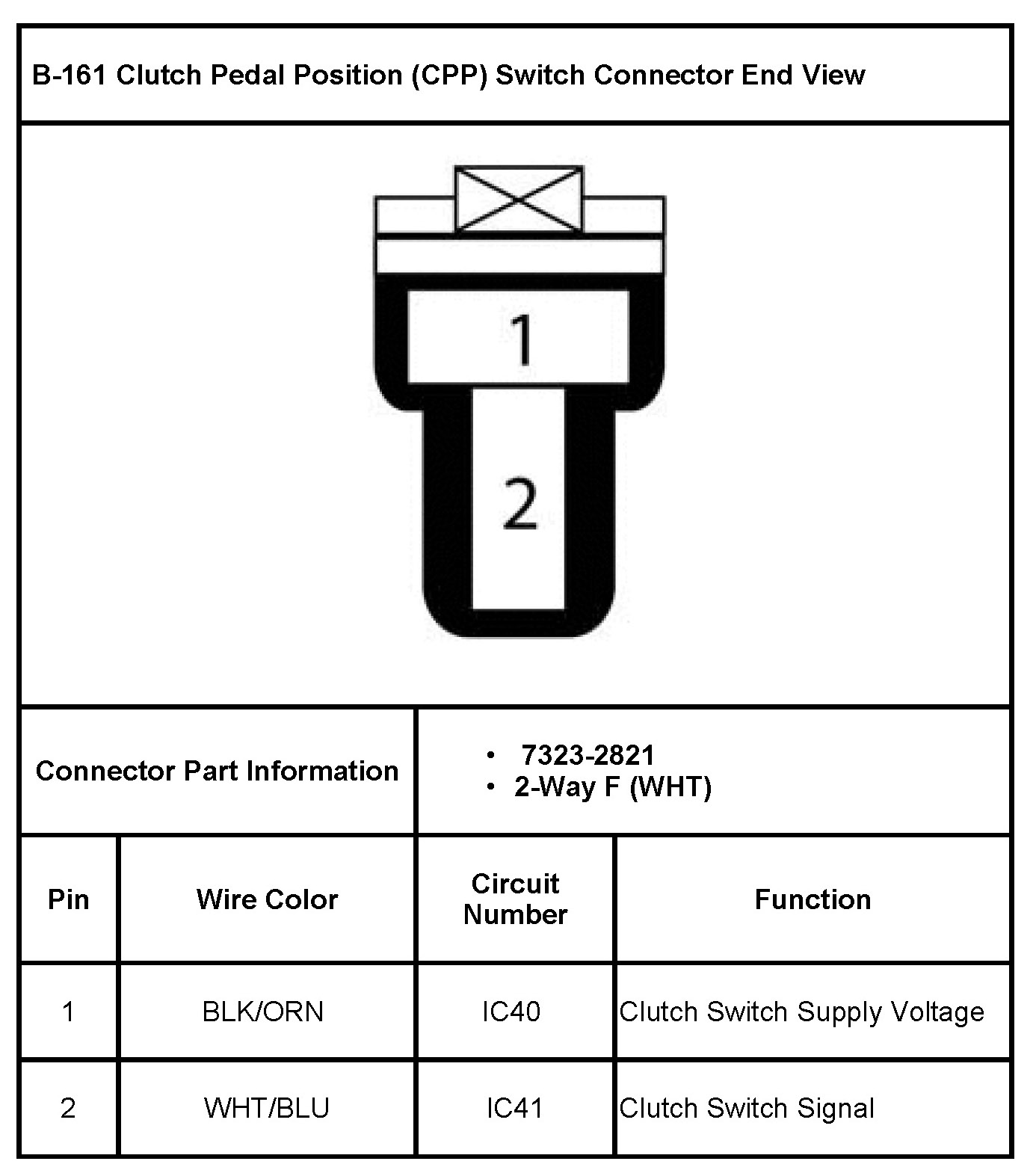

B-161 Clutch Pedal Position (CPP) Switch
Behind the Left Side of the I/P, Right of the Steering Column, On the Clutch Pedal Bracket, Above the Clutch Pedal
