B-137

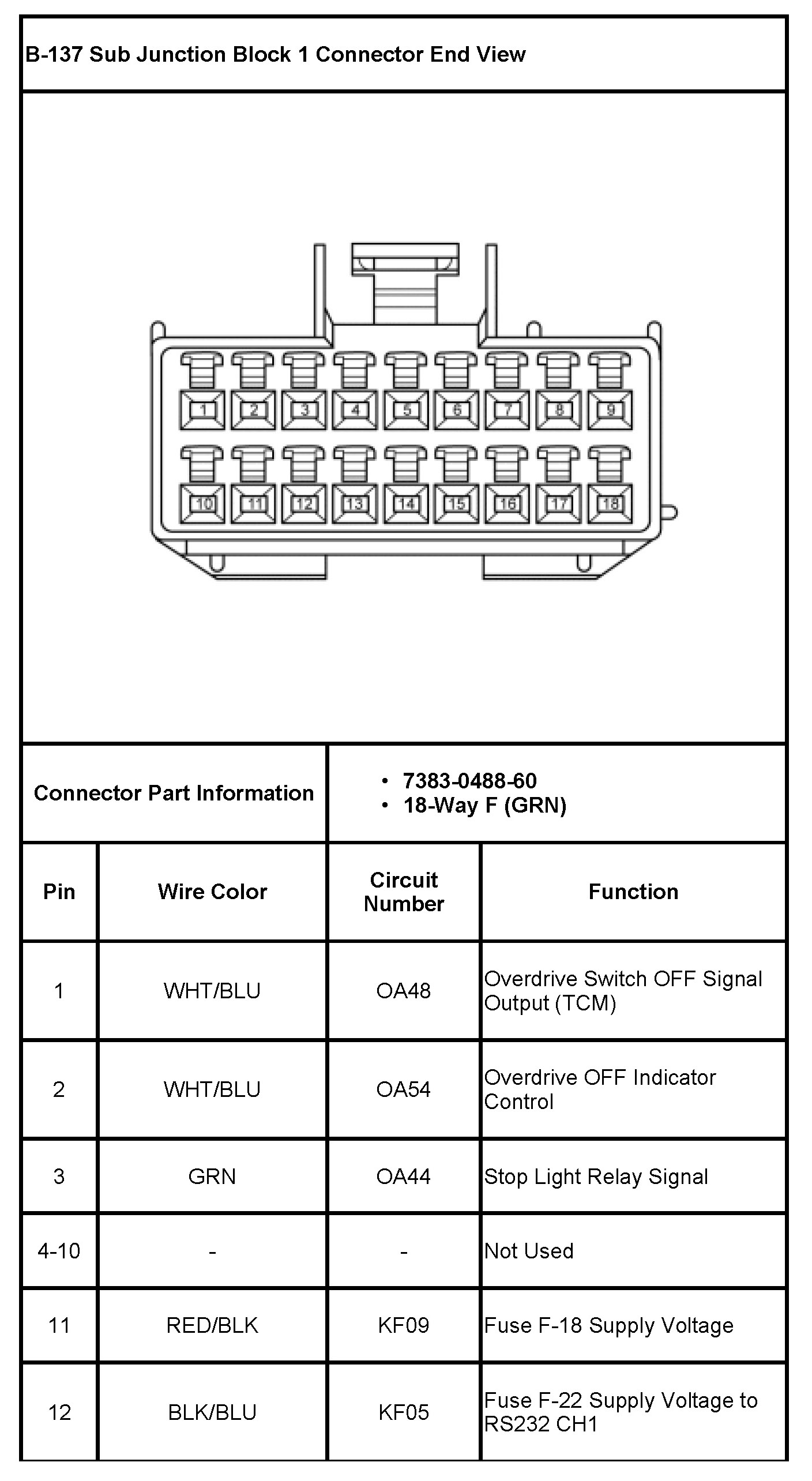

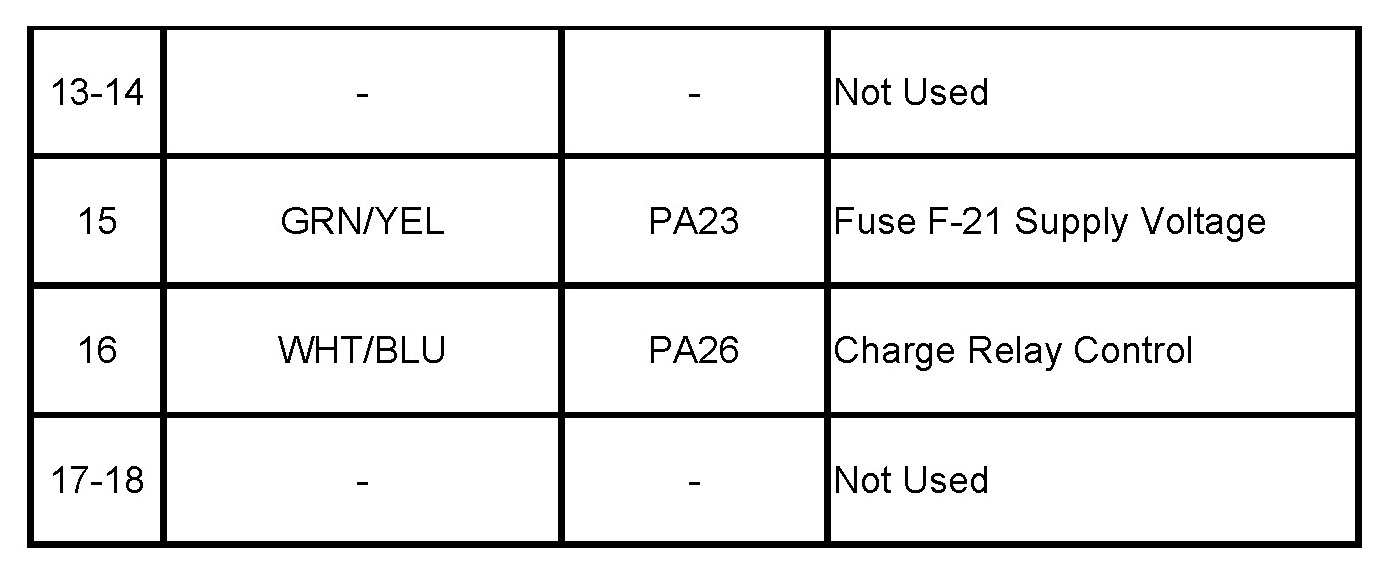

B-137 Sub Junction Block 1

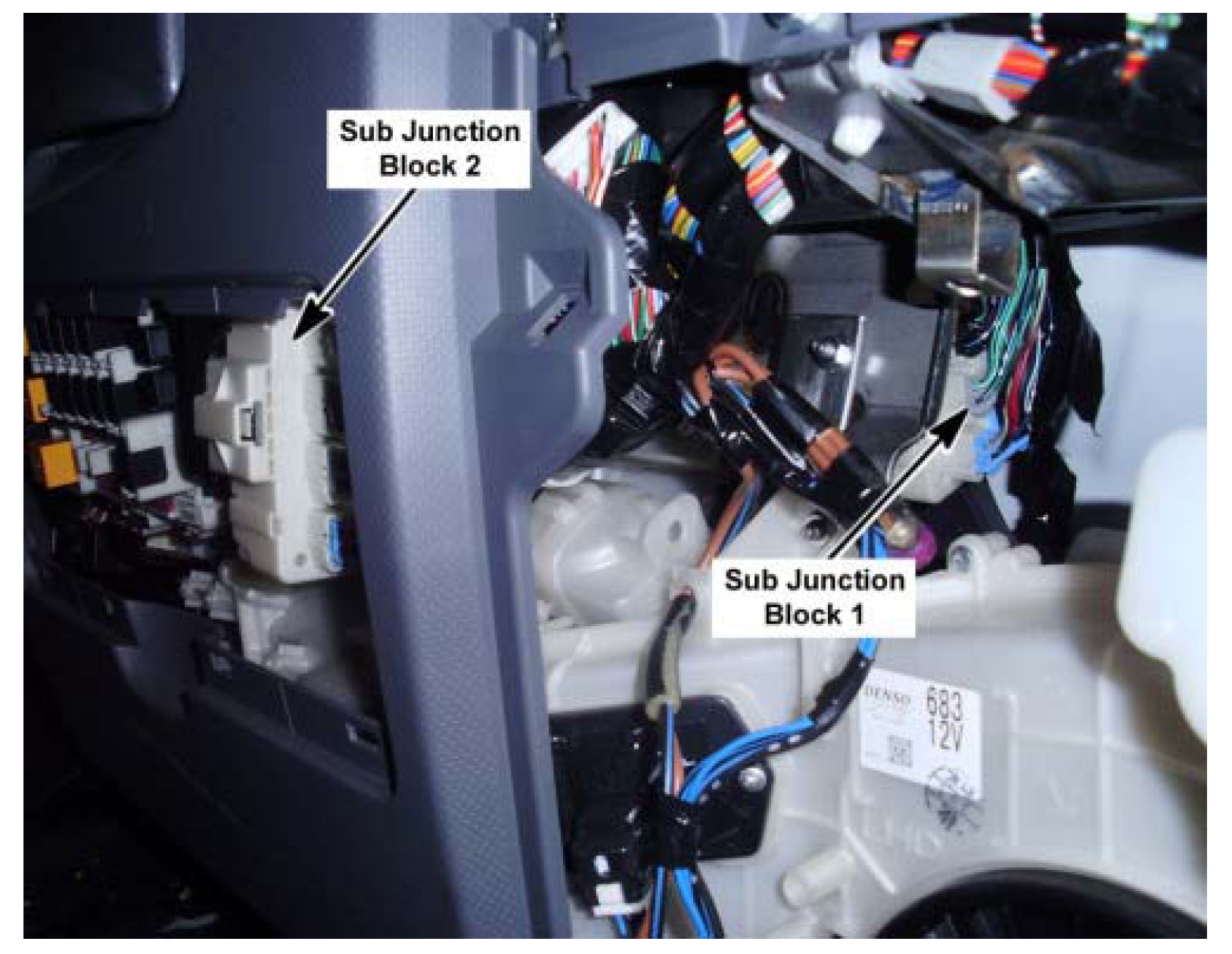

Behind the Center of the I/P, Above the Blower Motor Case To The Left of the Blower Motor







Component Connector View ( Junction Block Removed for Clarity)
