Reach L4-3.0L DSL Turbo (4JJ1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B-102
B-102

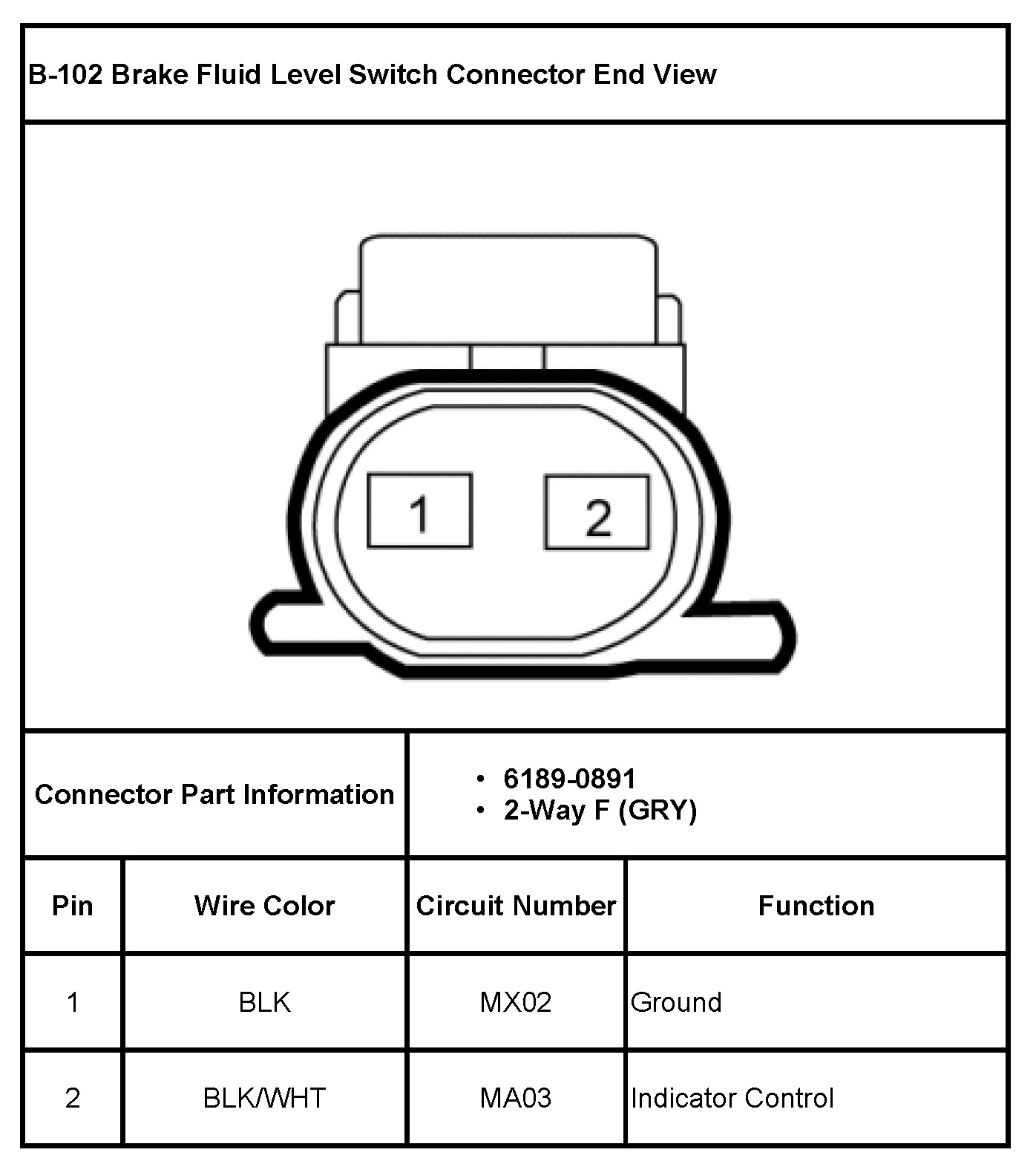

B-102 Brake Fluid Level Switch

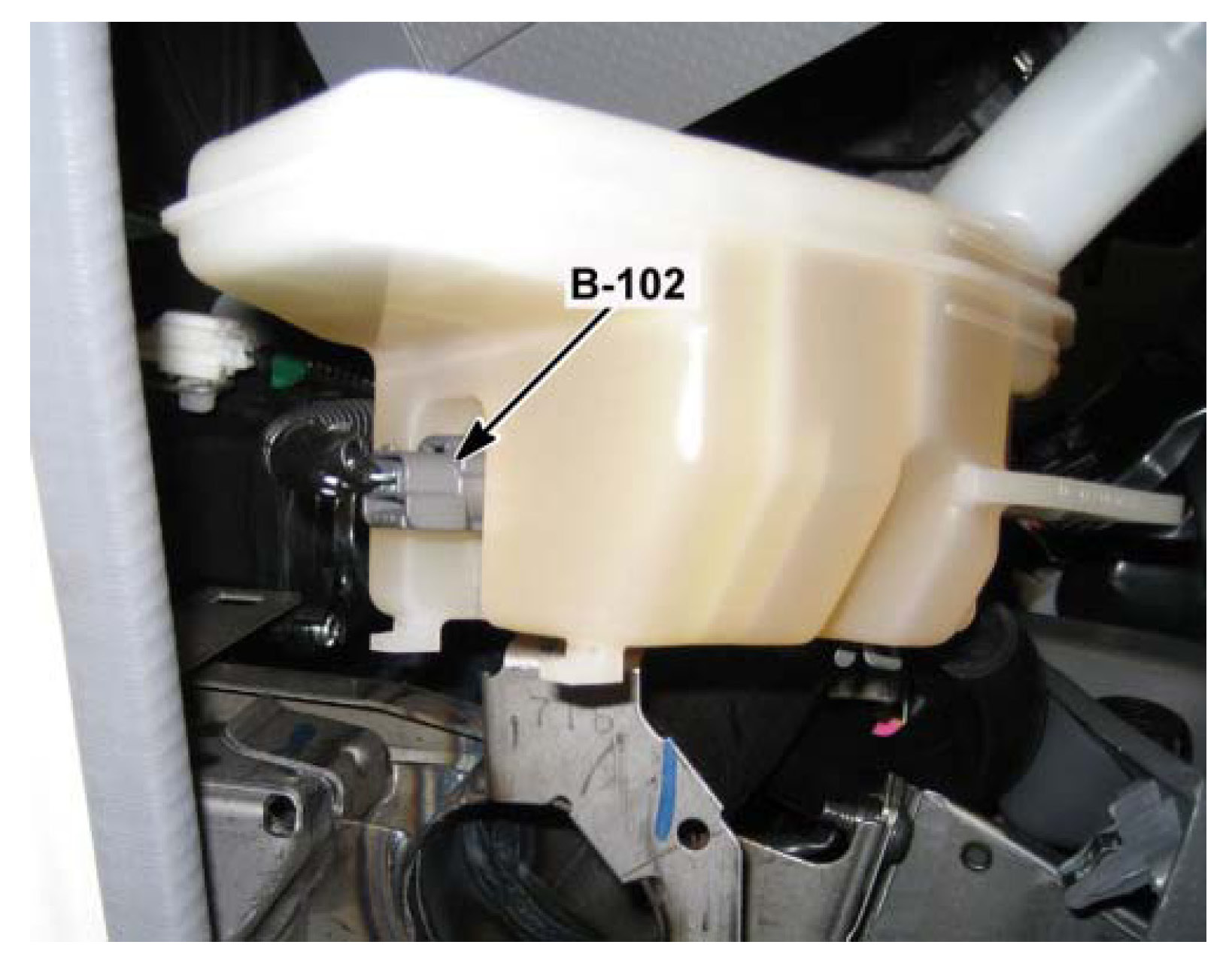

Behind the Left Side of the I/P, Next To The Brake Fluid Reservoir
