Wiper Control Module: Service and Repair

ALARM AND RELAY CONTROL UNIT

REMOVAL




1. Disconnect the battery ground cable.

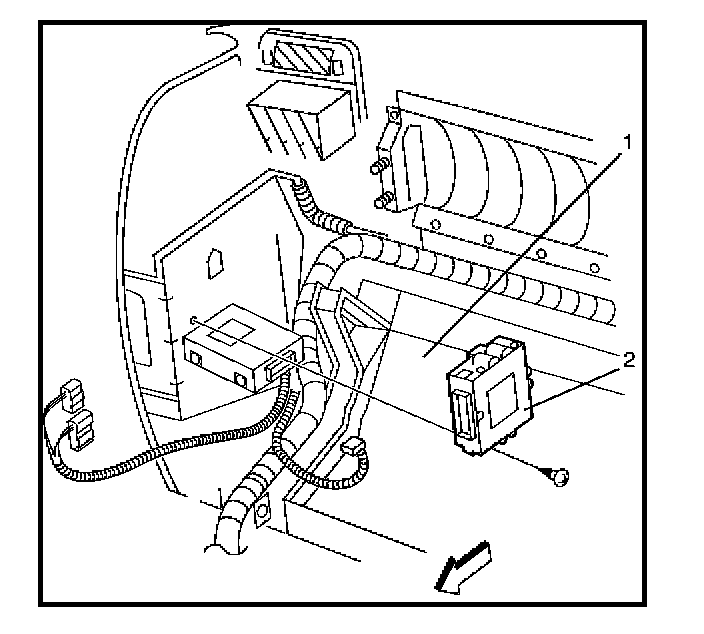

2. Remove the grove box (1)

3. Remove the alarm and relay control unit (2).
- Disconnect the connector.

INSTALLATION
To install, follow the removal steps in the reverse order.
