Home >> Isuzu Truck >> 2001 >> Rodeo Sport 2WD V6-3.2L >> Repair and Diagnosis >> Wiper and Washer Systems >> Relays and Modules - Wiper and Washer Systems >> Wiper Control Module >> Locations

Wiper Control Module: Locations

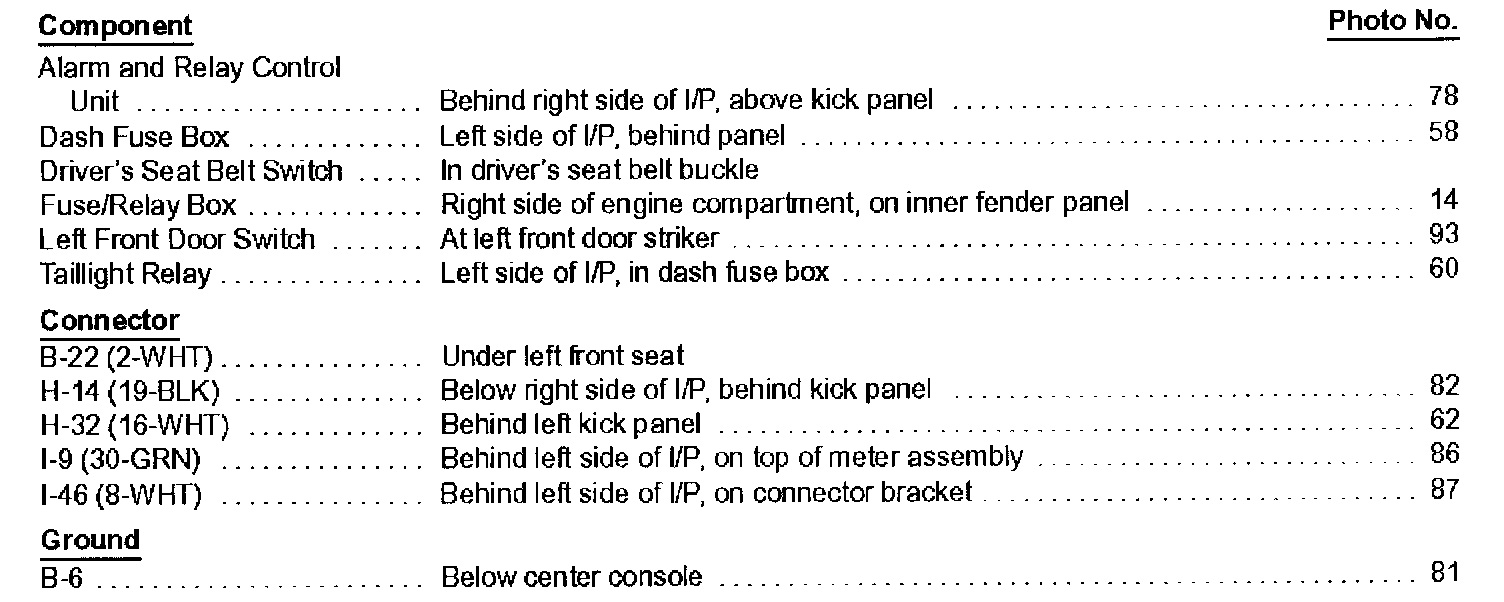

Relay Controls Index:






Component location Index photographs can be found at Diagnosis and Repair/Locations/Components.
Locations
