Isuzu Truck
>>
2001
>>
Rodeo Sport 2WD V6-3.2L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Diagrams
>>
Exploded Views
>>
Removal and Installation
Removal and Installation

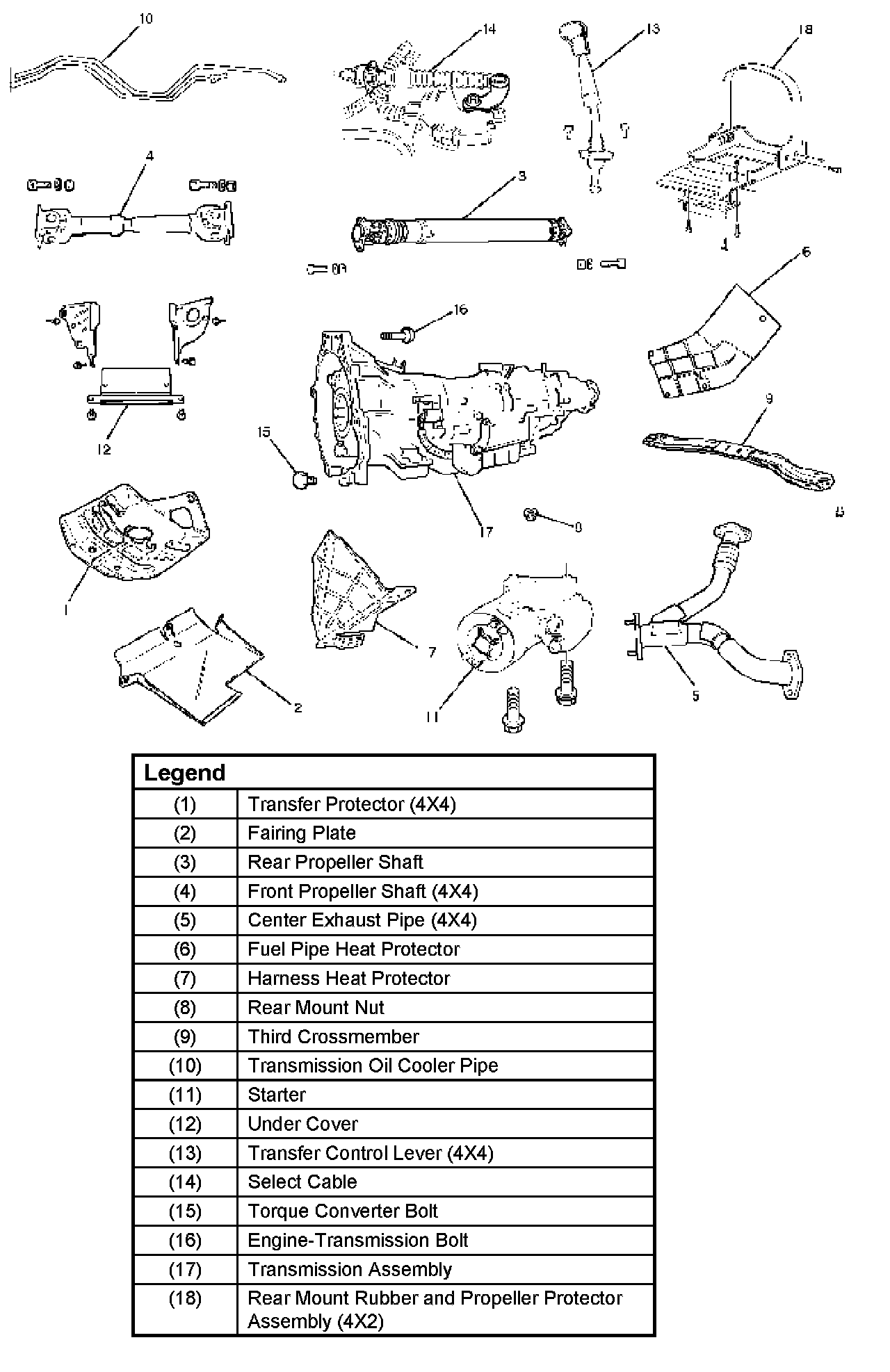

TRANSMISSION AND ASSOCIATED PARTS
(V6 Model)
(HEC Model)
