Electrical Diagrams

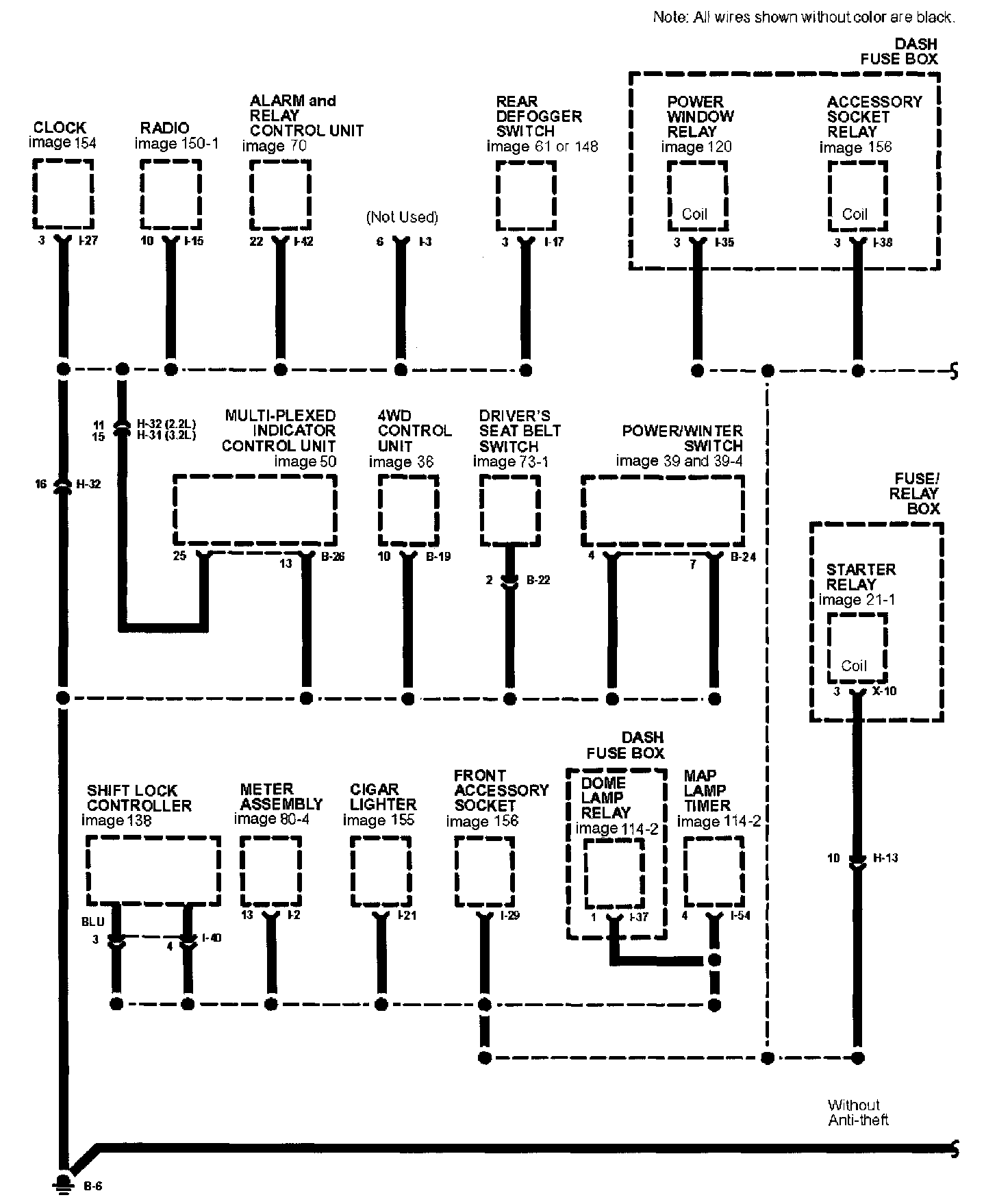

Ground Distribution: B-6 & B-8 Image 14:

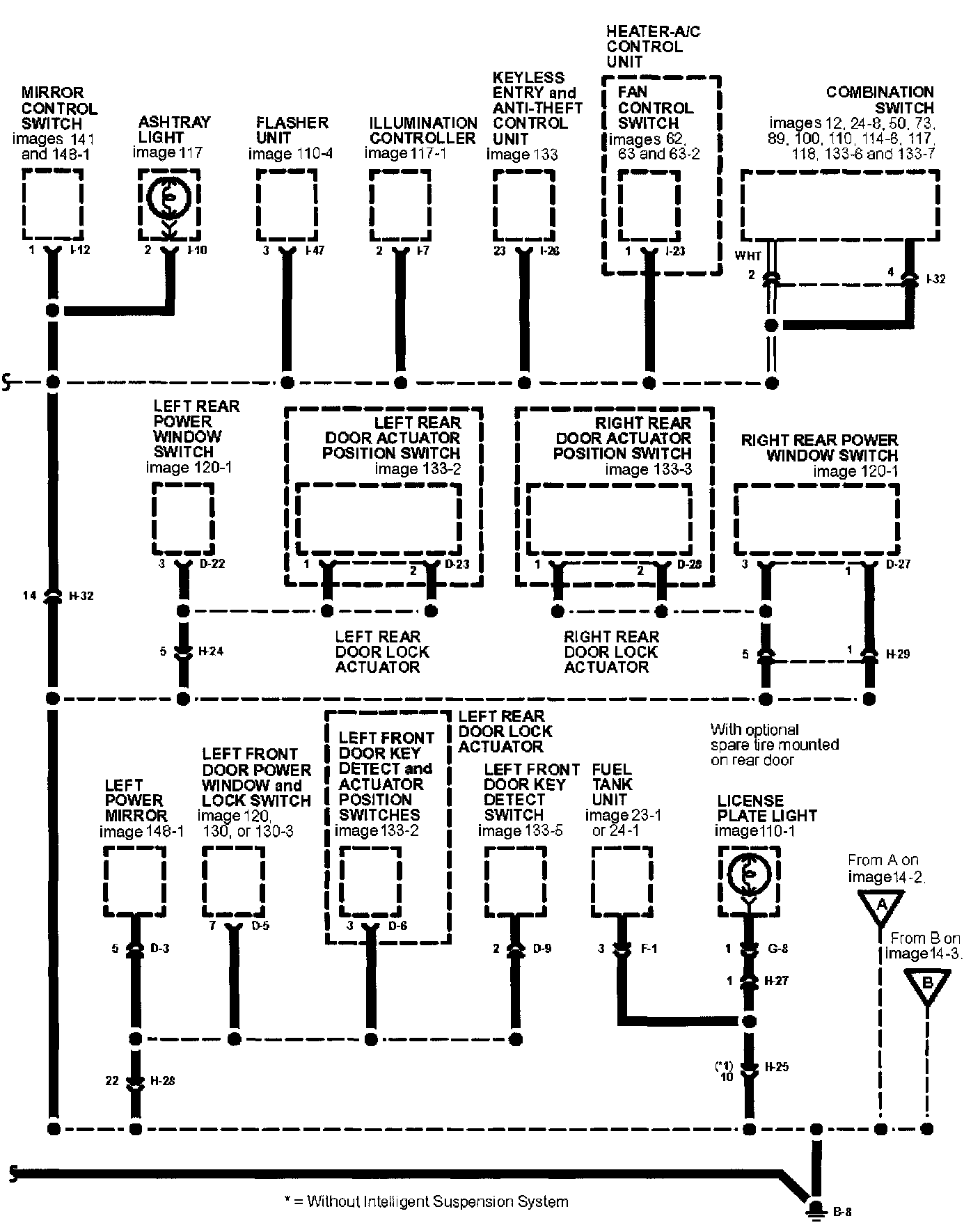

Ground Distribution: B-6 & B-8 Image 14-1:

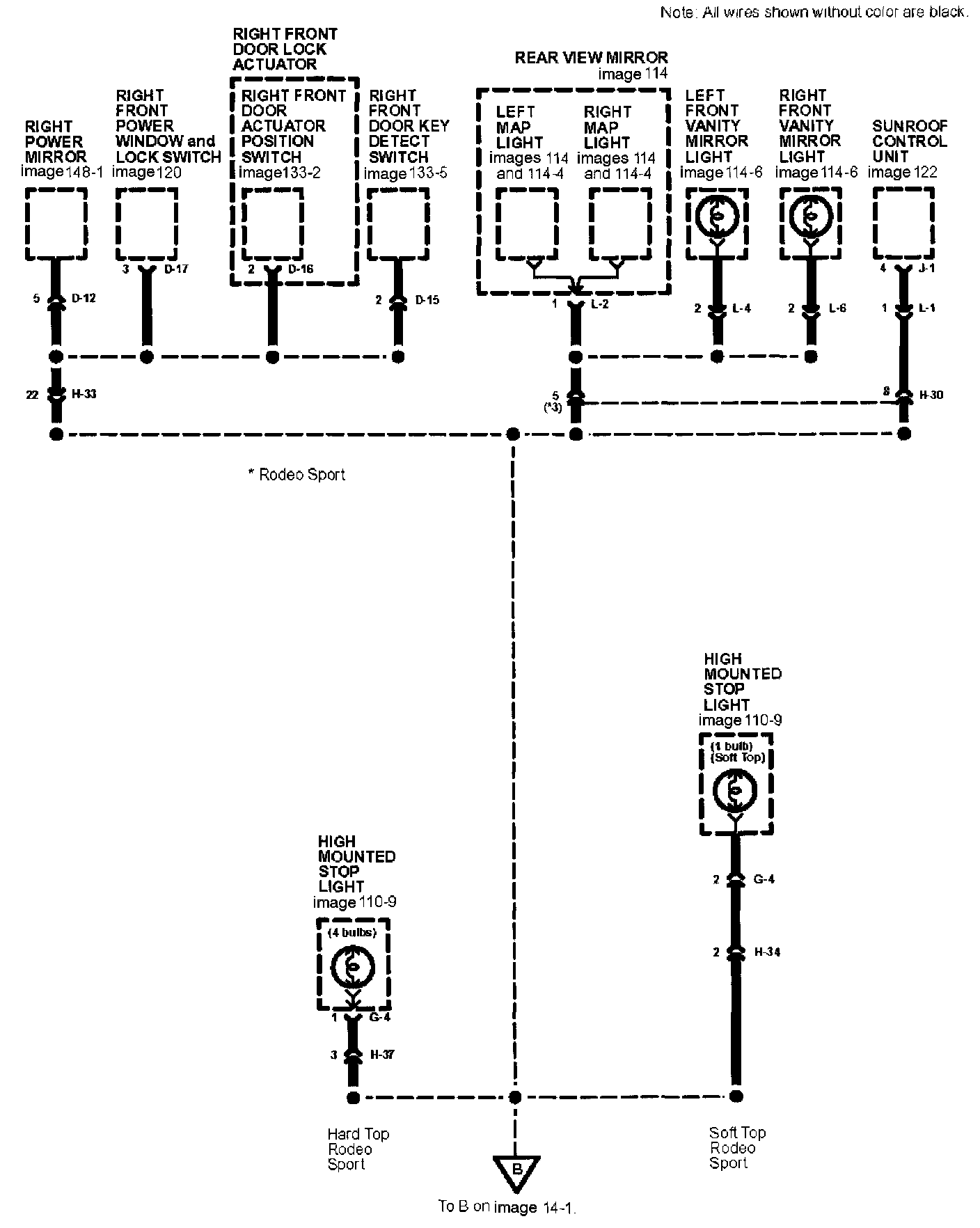

Ground Distribution: B-6 & B-8 Image 14-2:

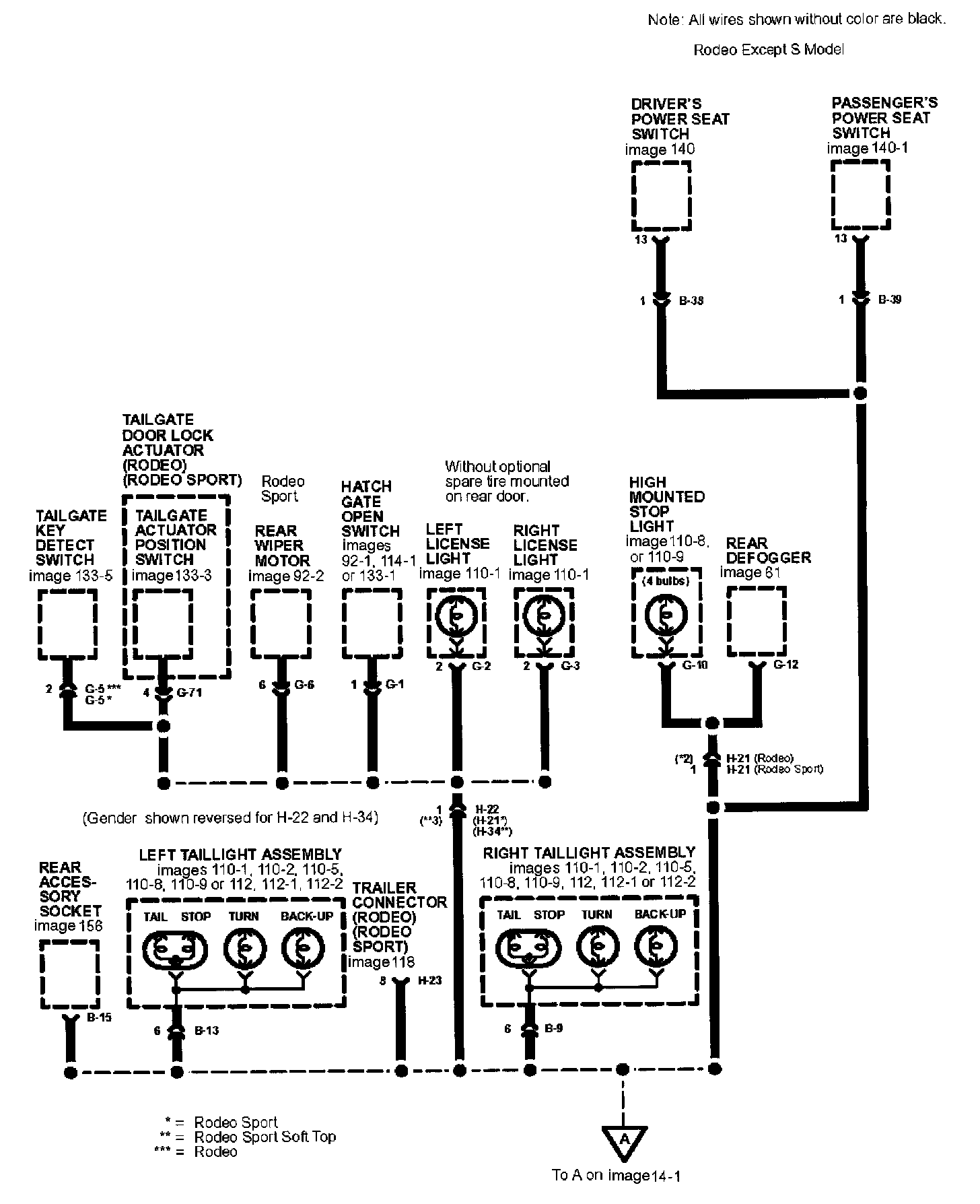

Ground Distribution: B-6 & B-8 Image 14-3:

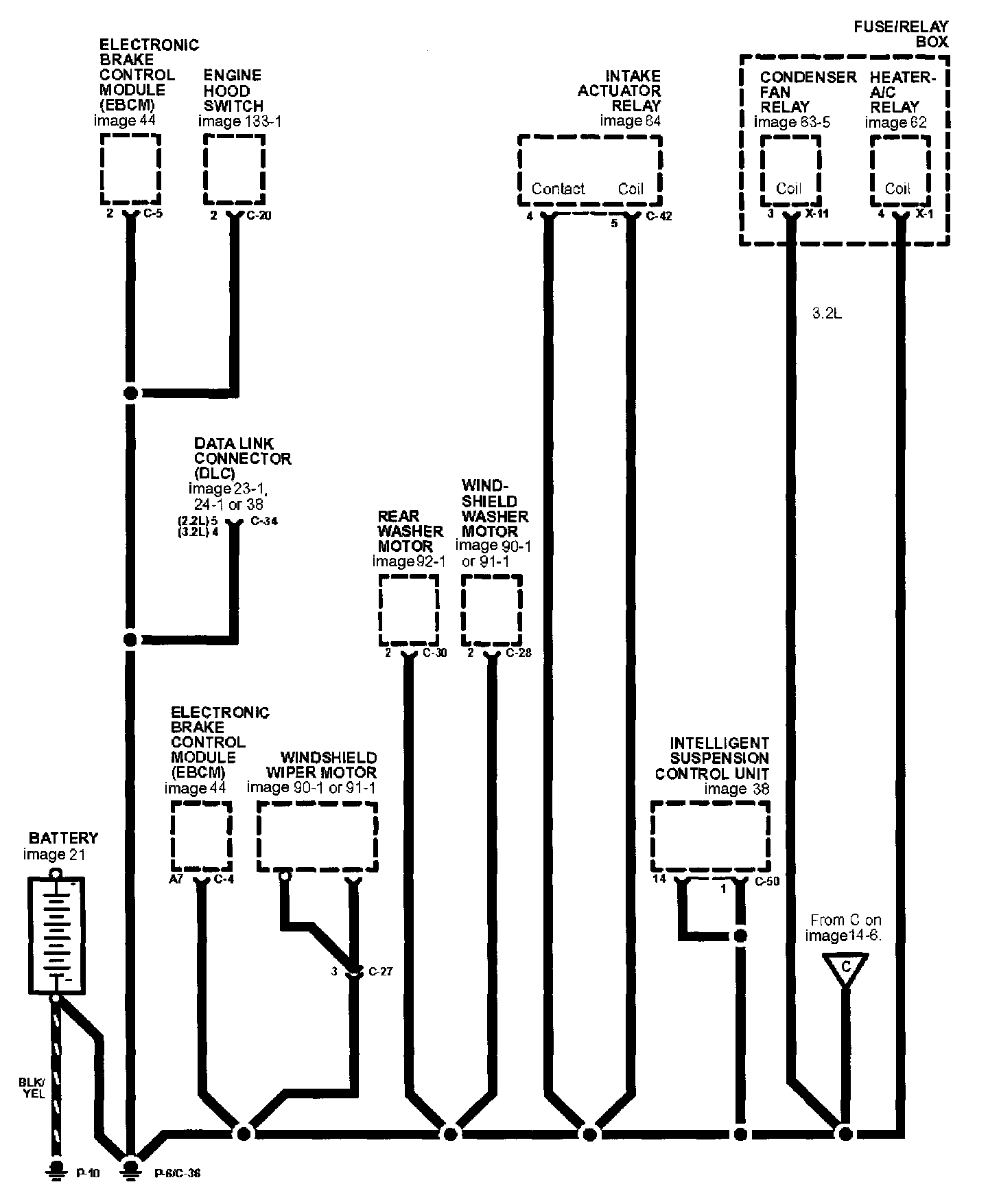

Ground Distribution: P-10, P-6/C-36 & C-16 Image 14-4:

Ground Distribution: P-10, P-6/C-36 & C-16 Image 14-5:

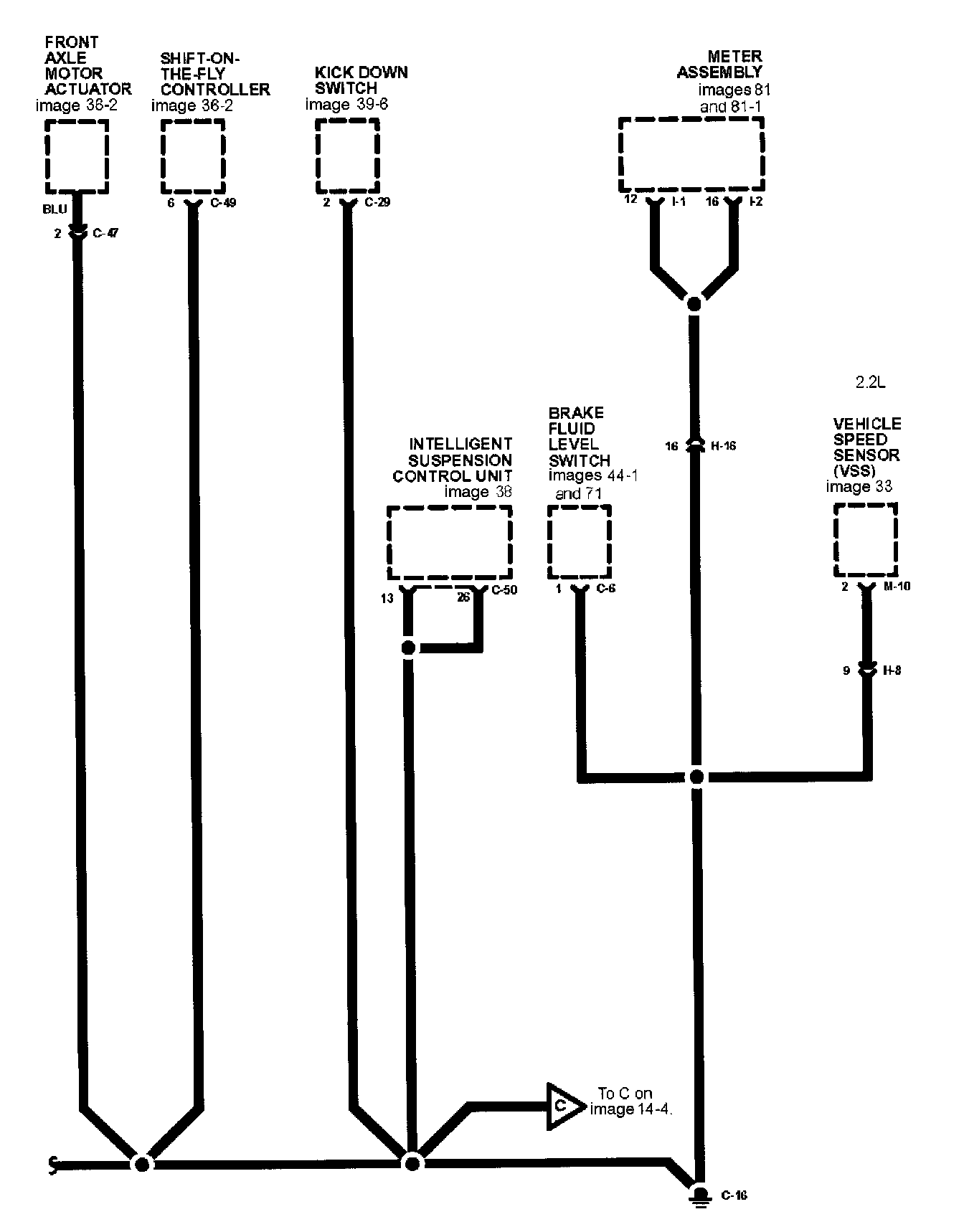

Ground Distribution: P-6/C-36 & C-16 Image 14-6:

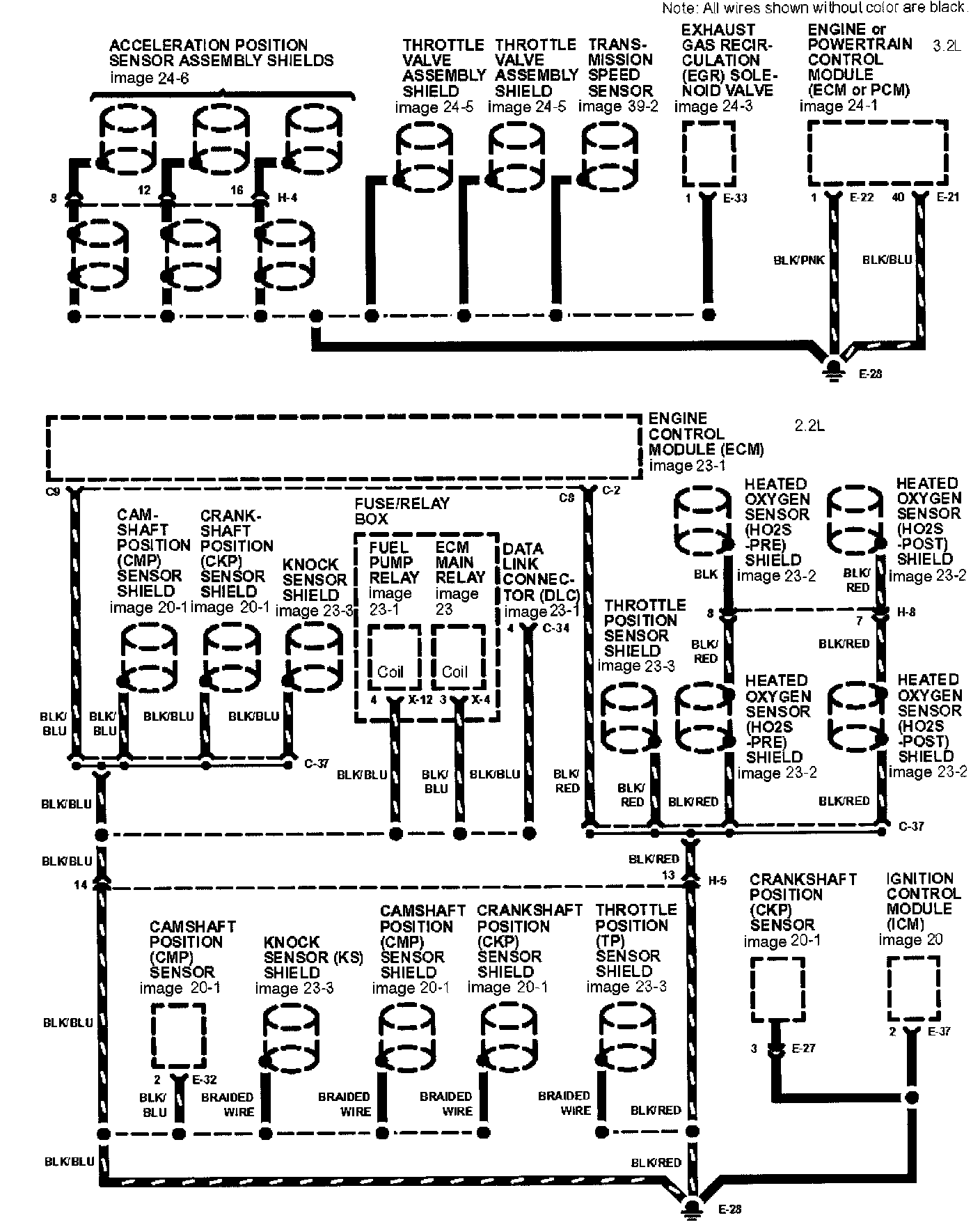

Ground Distribution: E-28 Image 14-7:

Ground Distribution: E-29 & E-30 (3.2L), 1-43 Image 14-8:
