Fuse/Relay Box - Engine Room
Fuse/Relay Box - Engine Room

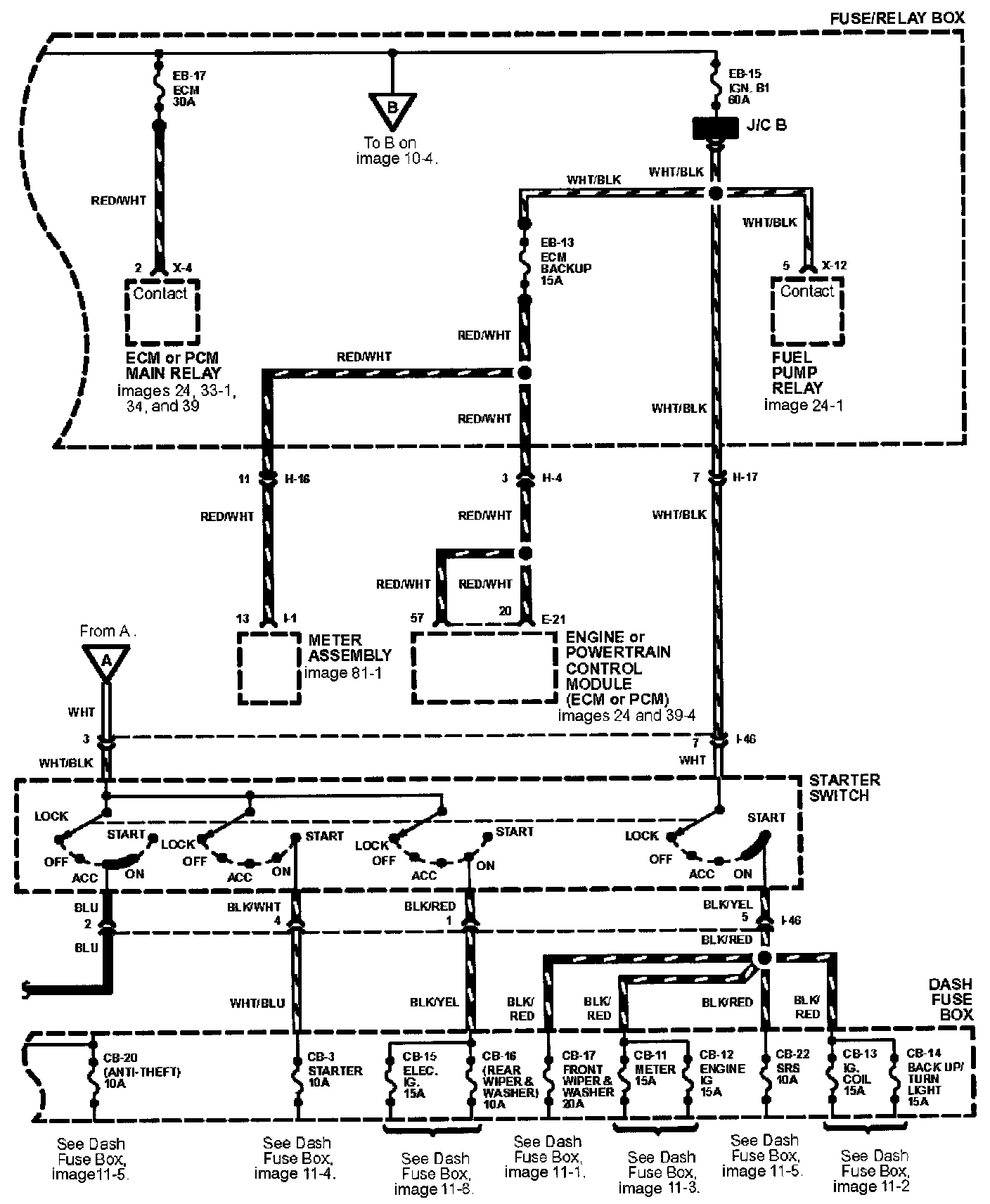

Power Distribution Image 10-2:

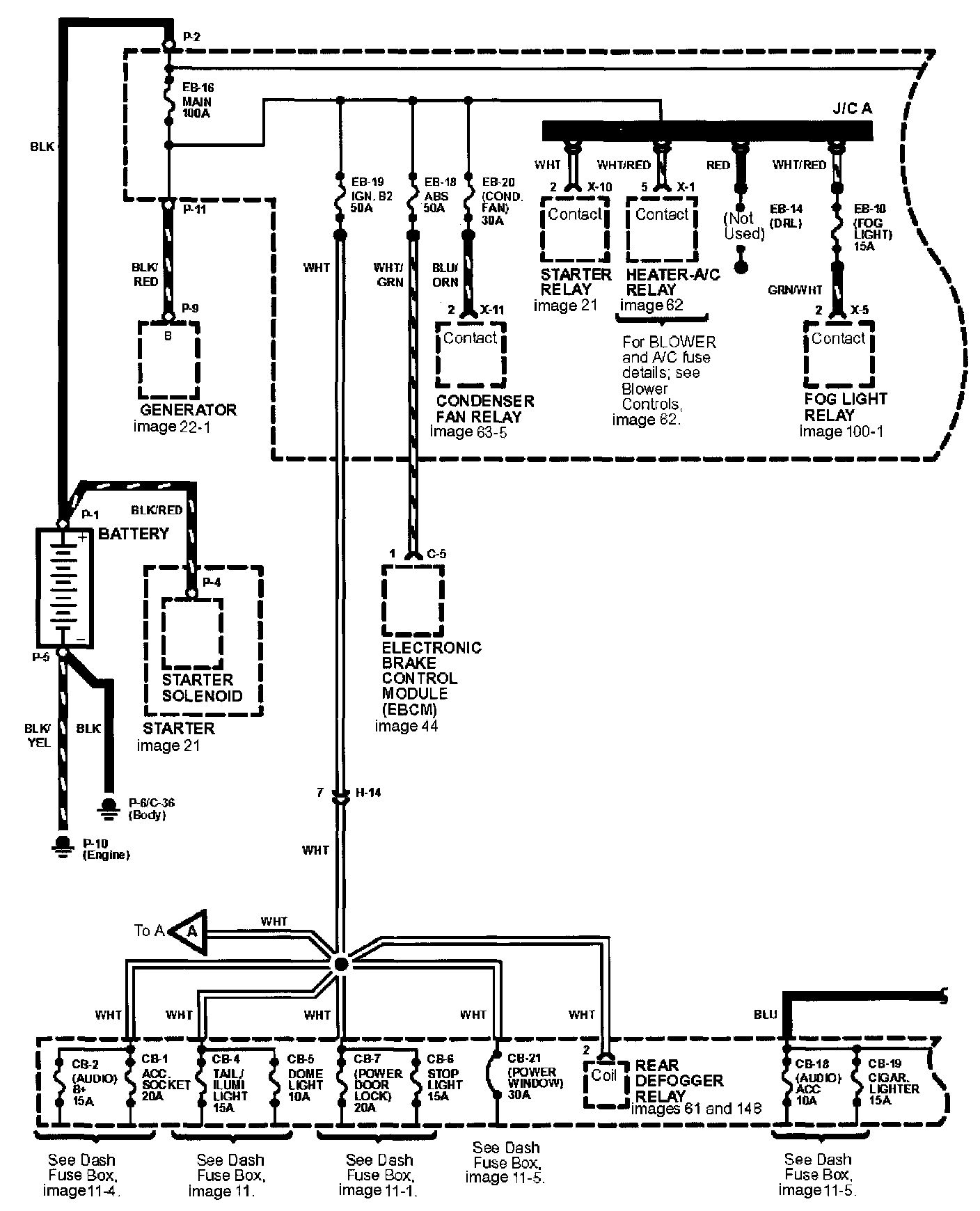

Power Distribution Image 10-3:
Power Distribution Image 10-4:
