Front Accessory Socket

FRONT ACCESSORY SOCKET

REMOVAL




1. Disconnect the battery ground cable.

2. Remove the front console assembly.

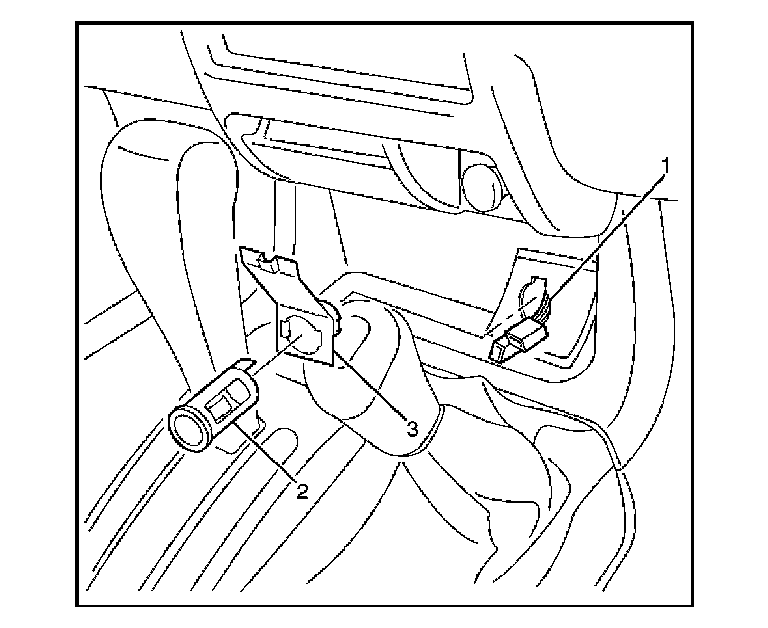

3. Remove the front accessory socket (2).
- Disconnect the connectors (1).
- Pull out the front accessory socket from the socket cover (3).

INSTALLATION
To install, follow the removal steps in the reverse order, noting the following point.
