Torque Specifications
TORQUE SPECIFICATIONS
Ignition Coil, Spark Plug, Crankshaft Angle Sensor and Under Cover

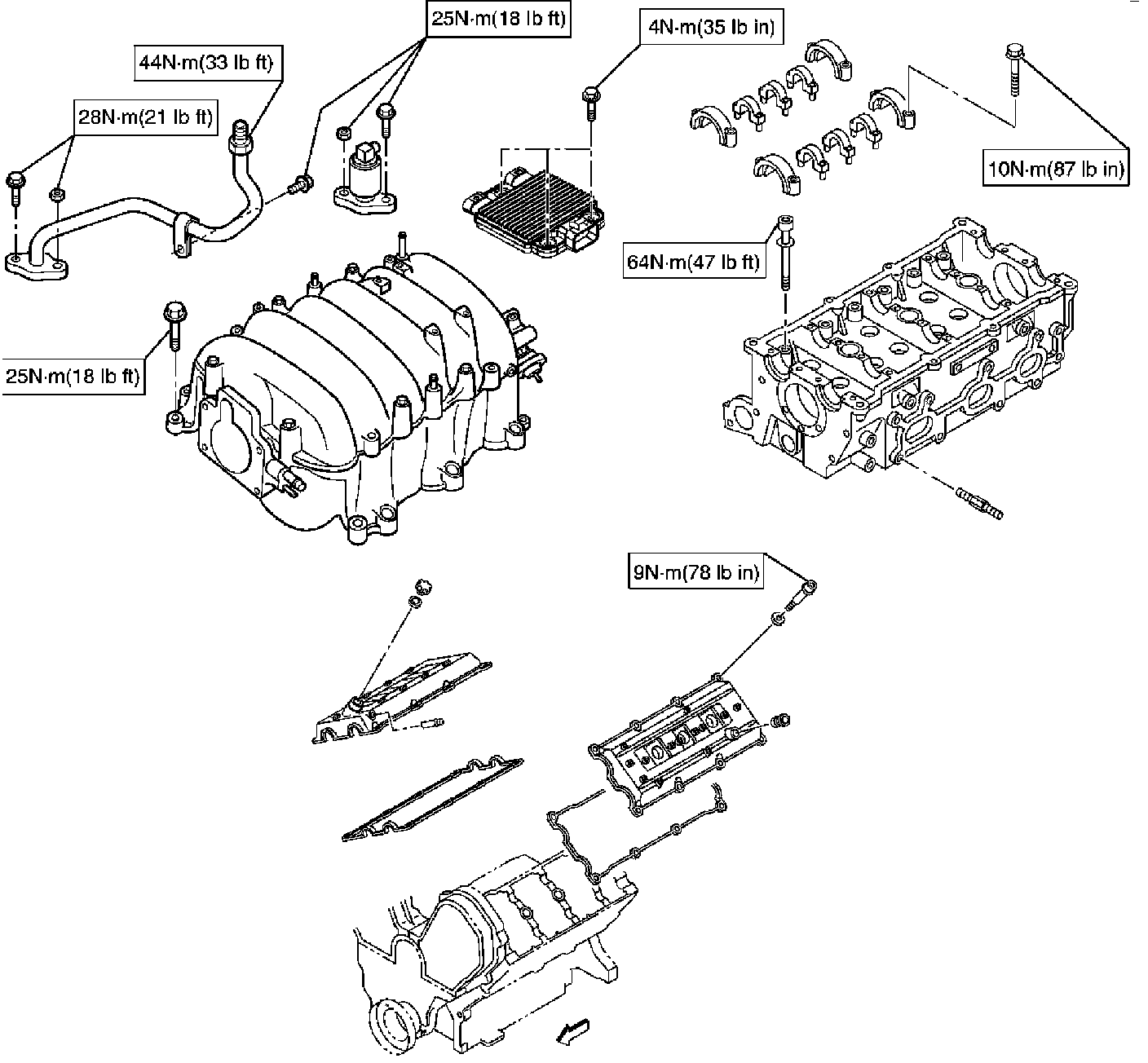

Cylinder Head Cover, Cylinder Head, Camshaft Bearing Cap, Common Chamber, EGR Valve and EGR Pipe
Crankshaft Main Bearing, Flywheel, Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer and Water Pump
Connecting Rod and Water Pump
Engine Mount
TORQUE SEQUENCES
Cylinder Head Installation
Note: Remove cylinder head bolts in reverse order of installation.
Camshaft Bearing Cap Installation
