Home >> Isuzu Truck >> 2001 >> Rodeo Sport 2WD V6-3.2L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Combination Switch >> Locations

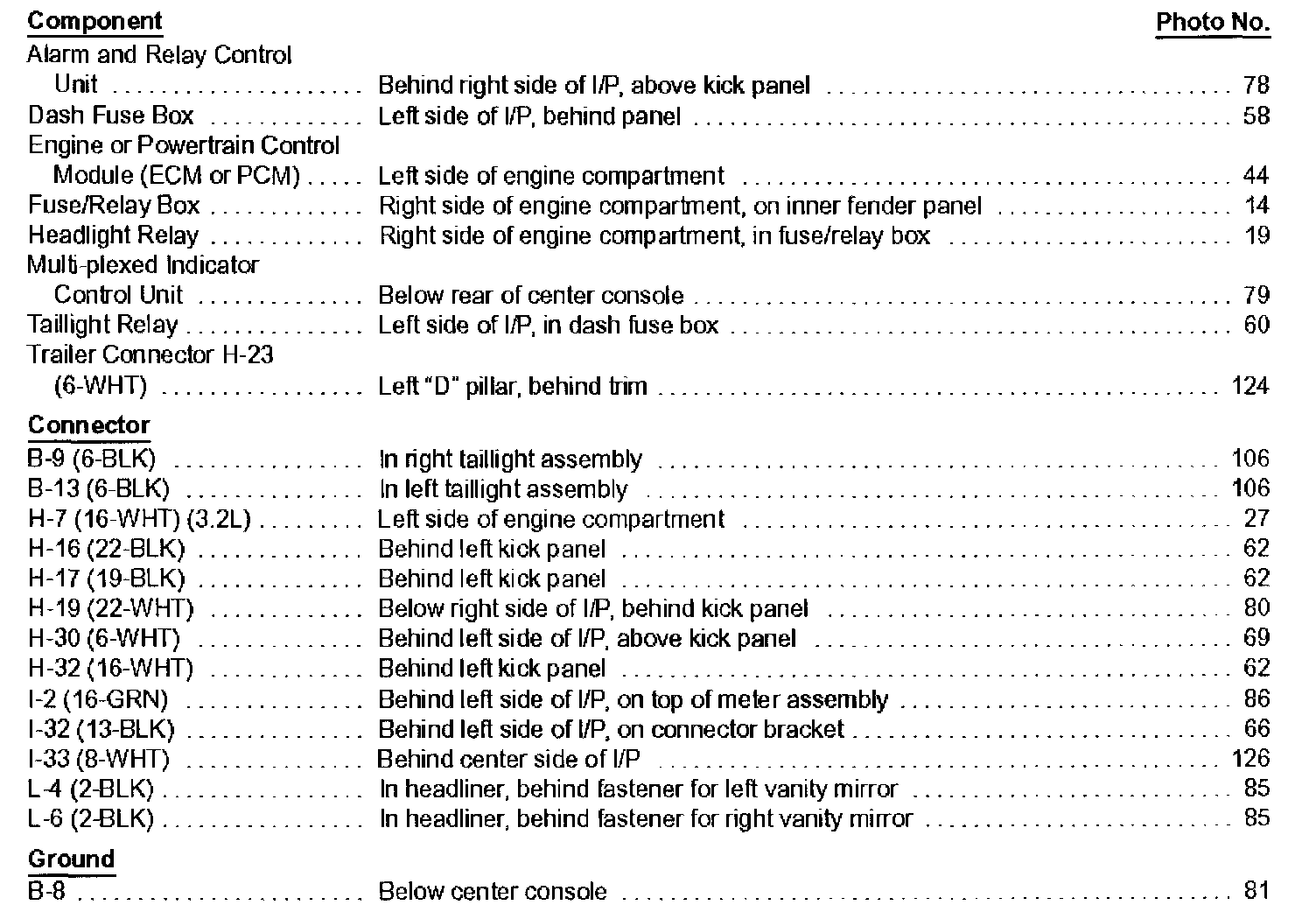

Combination Switch: Locations

Lighting Switch Details Index:






Component location Index photographs can be found at Diagnosis and Repair/Locations/Components.
Locations
