Pinout Values and Diagnostic Parameters

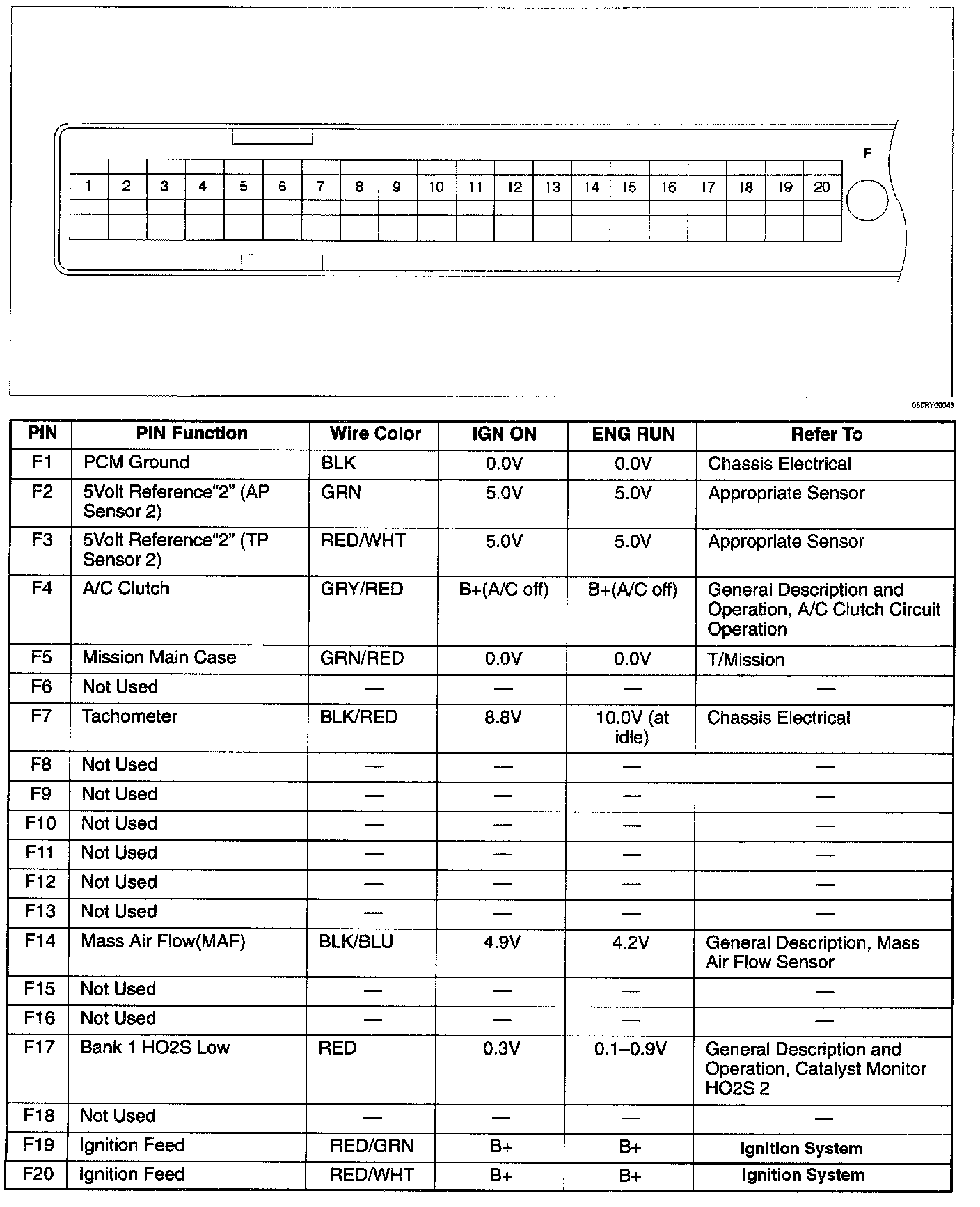

PCM Pinout Table, 80-Way Blue Connector - Row "F1 - 20":

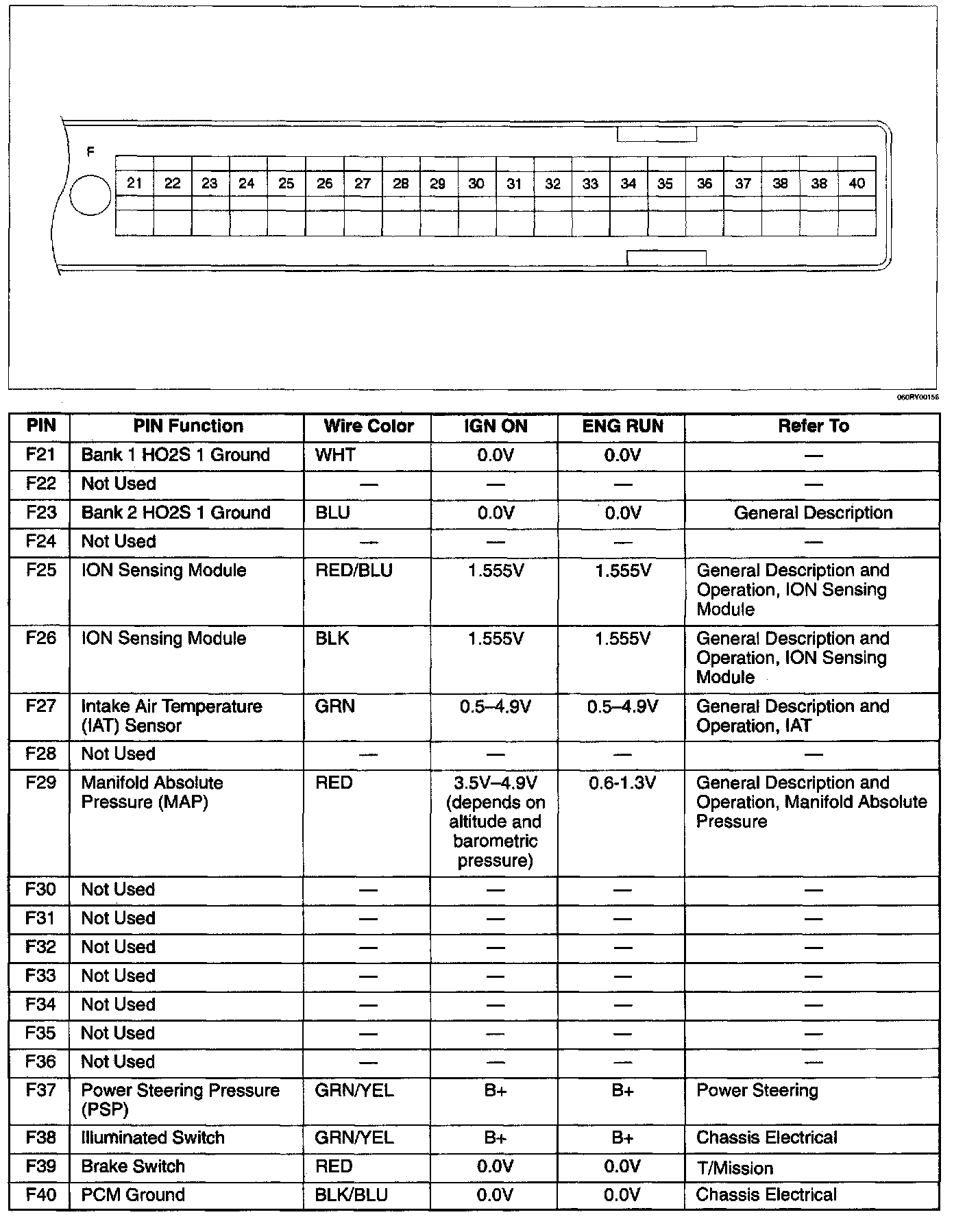

PCM Pinout Table, 80-Way Blue Connector - Row "F20 - 40":

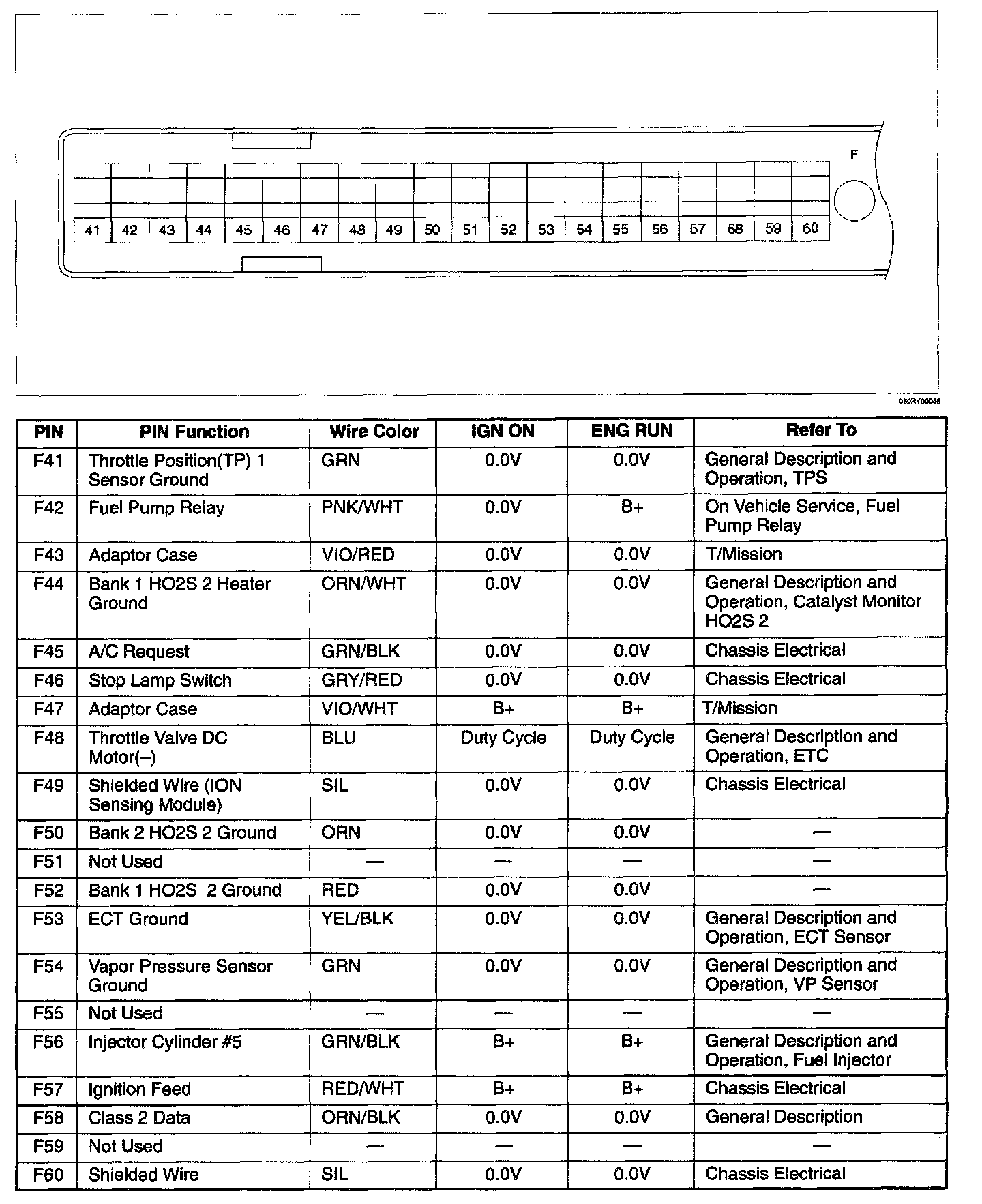

PCM Pinout Table, 80-Way Blue Connector - Row "F41 - 60":

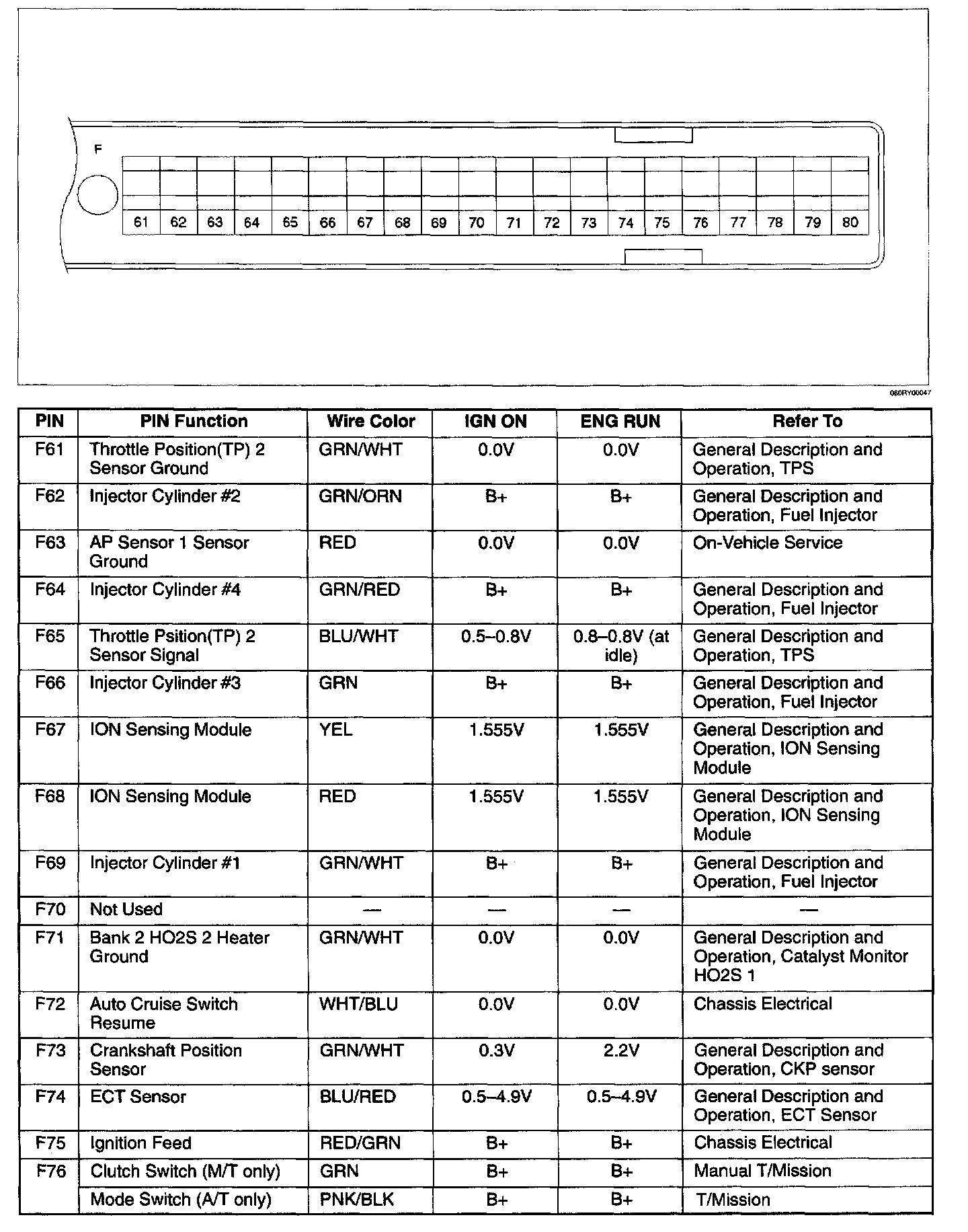

PCM Pinout Table, 80-Way Blue Connector - Row "F61 - 76":

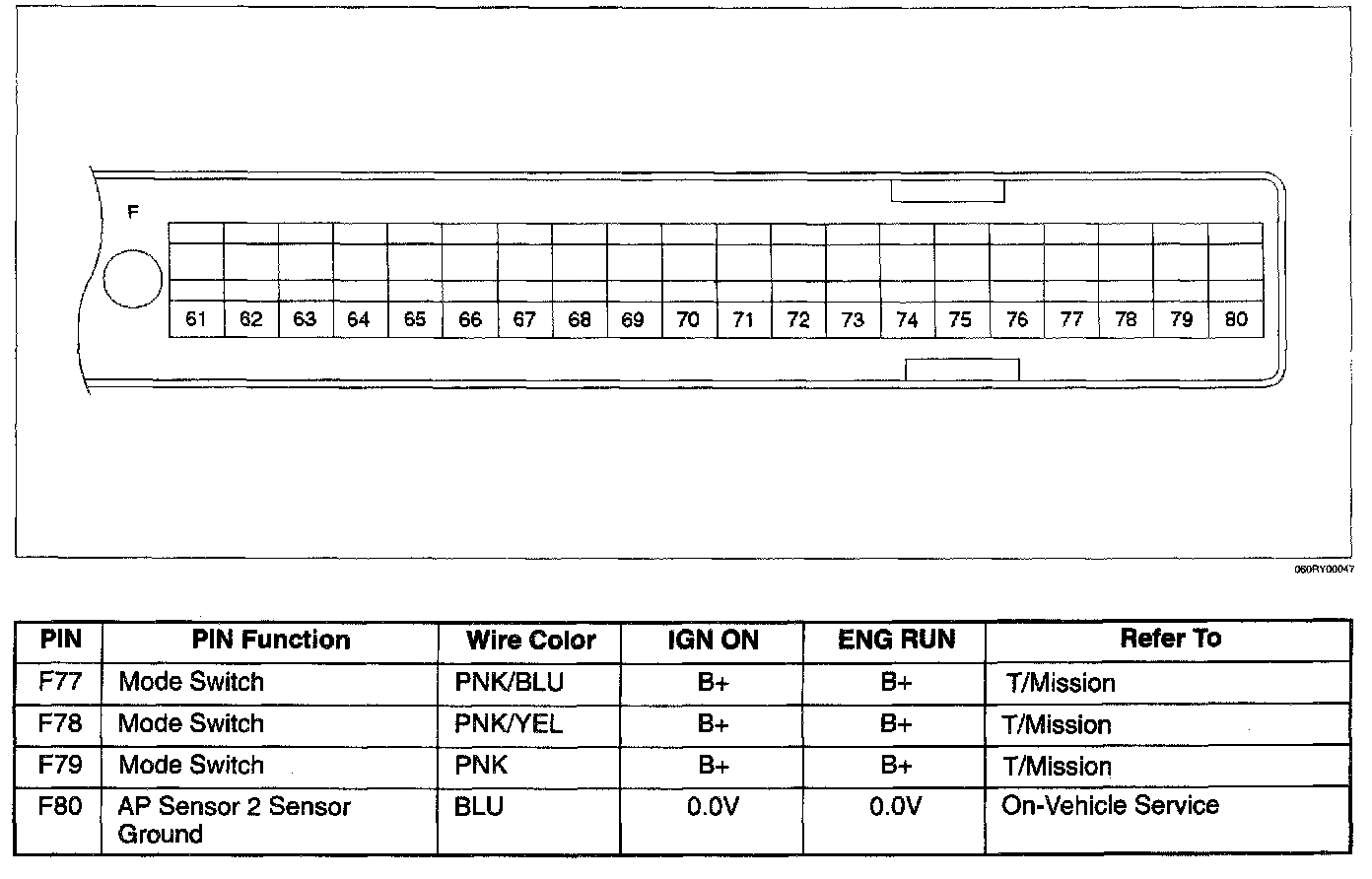

PCM Pinout Table, 80-Way Blue Connector - Row "F77 - 80":

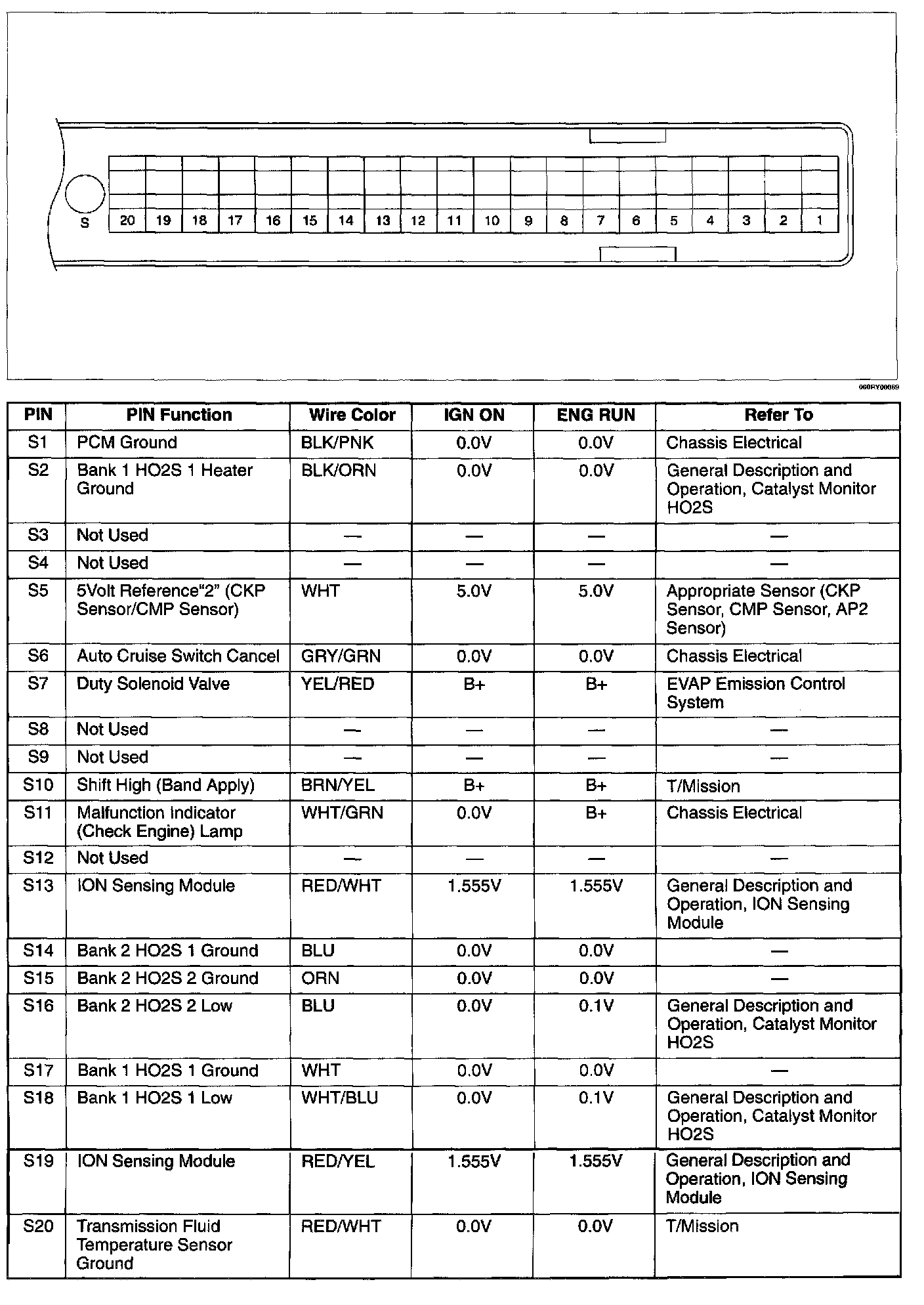

PCM Pinout Table, 80-Way Red Connector - Row "S1 - 20":

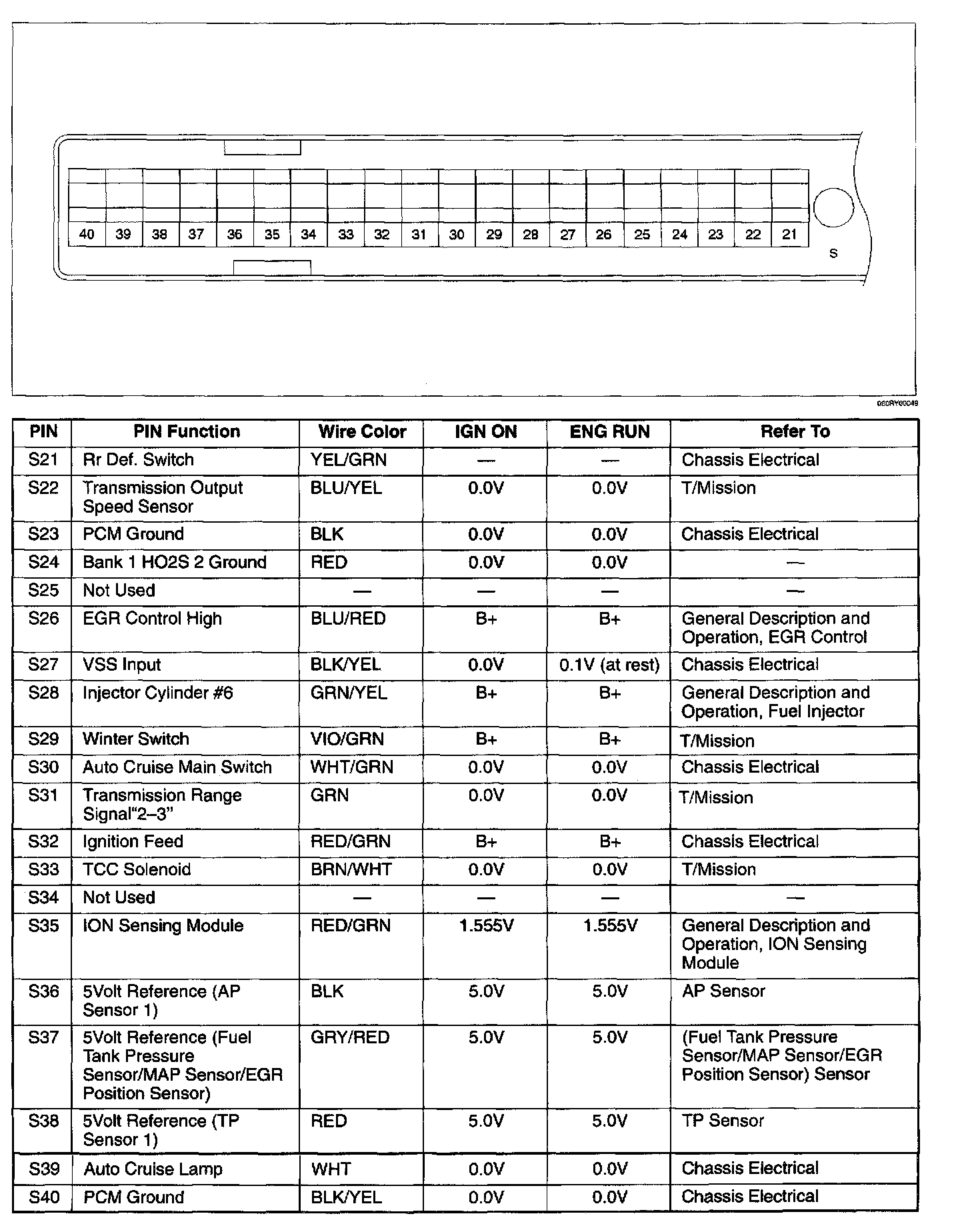

PCM Pinout Table, 80-Way Red Connector - Row "S21 - 40":

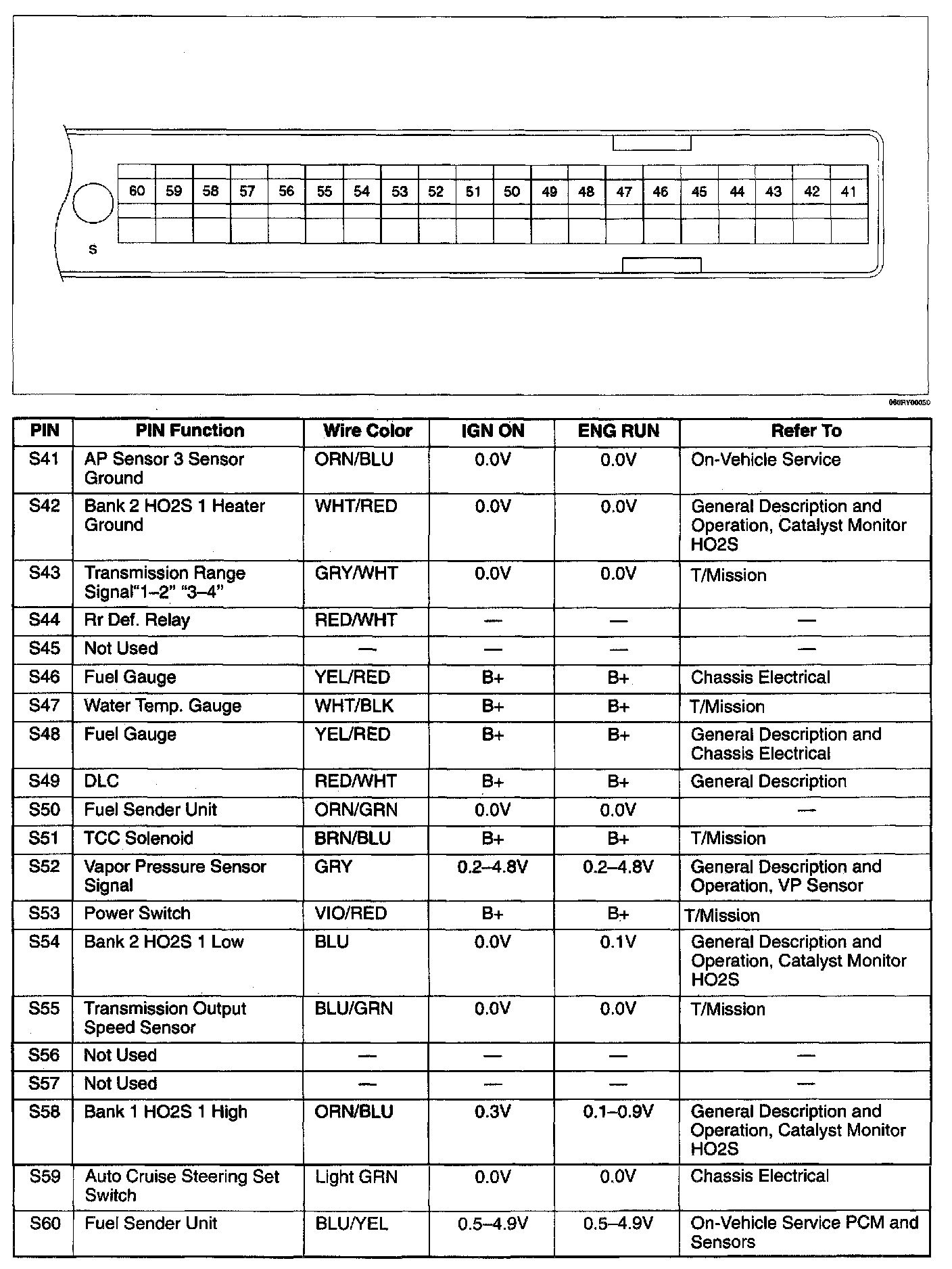

PCM Pinout Table, 80-Way Red Connector - Row "S41 - 58":

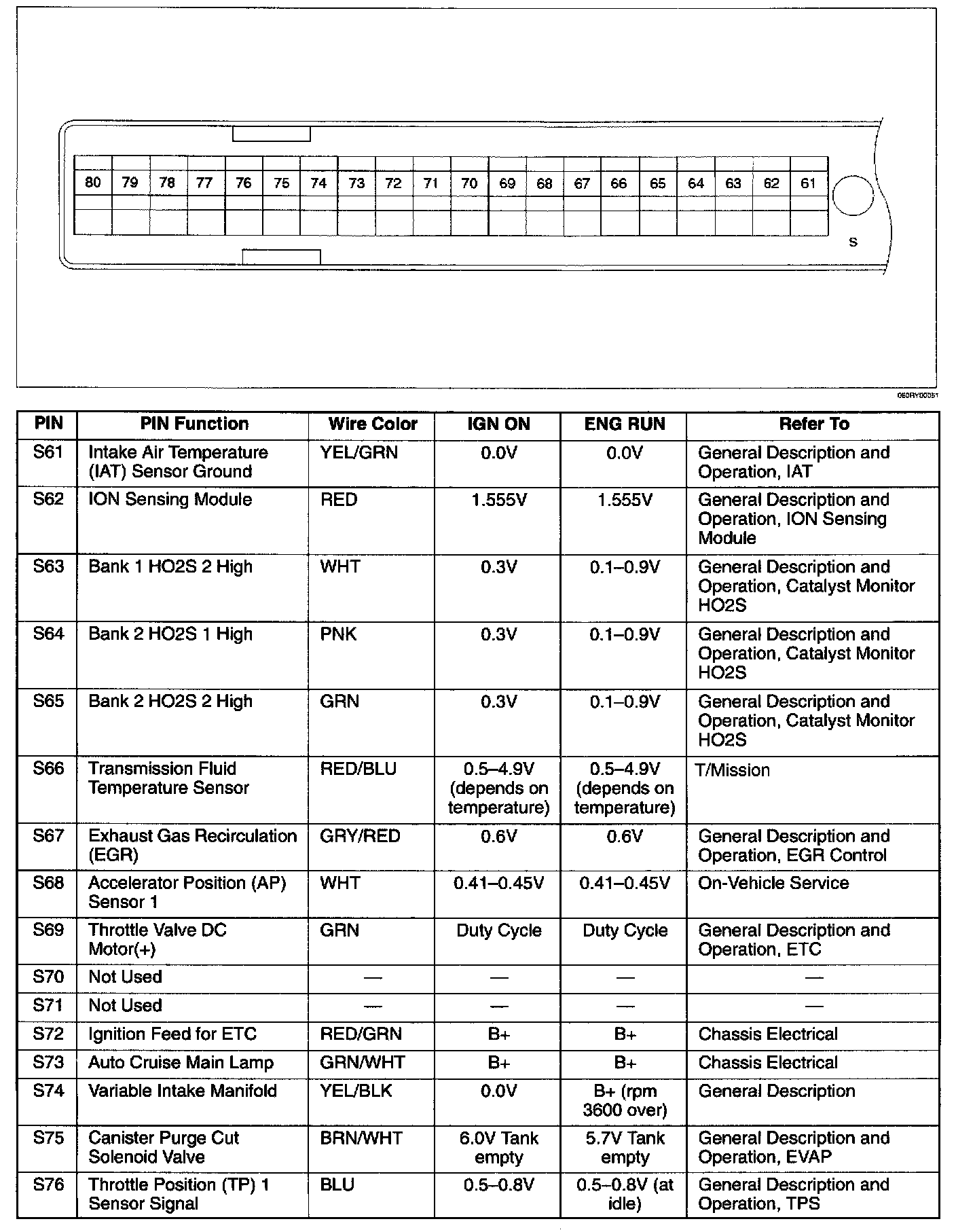

PCM Pinout Table, 80-Way Red Connector - Row "S61 - 76":

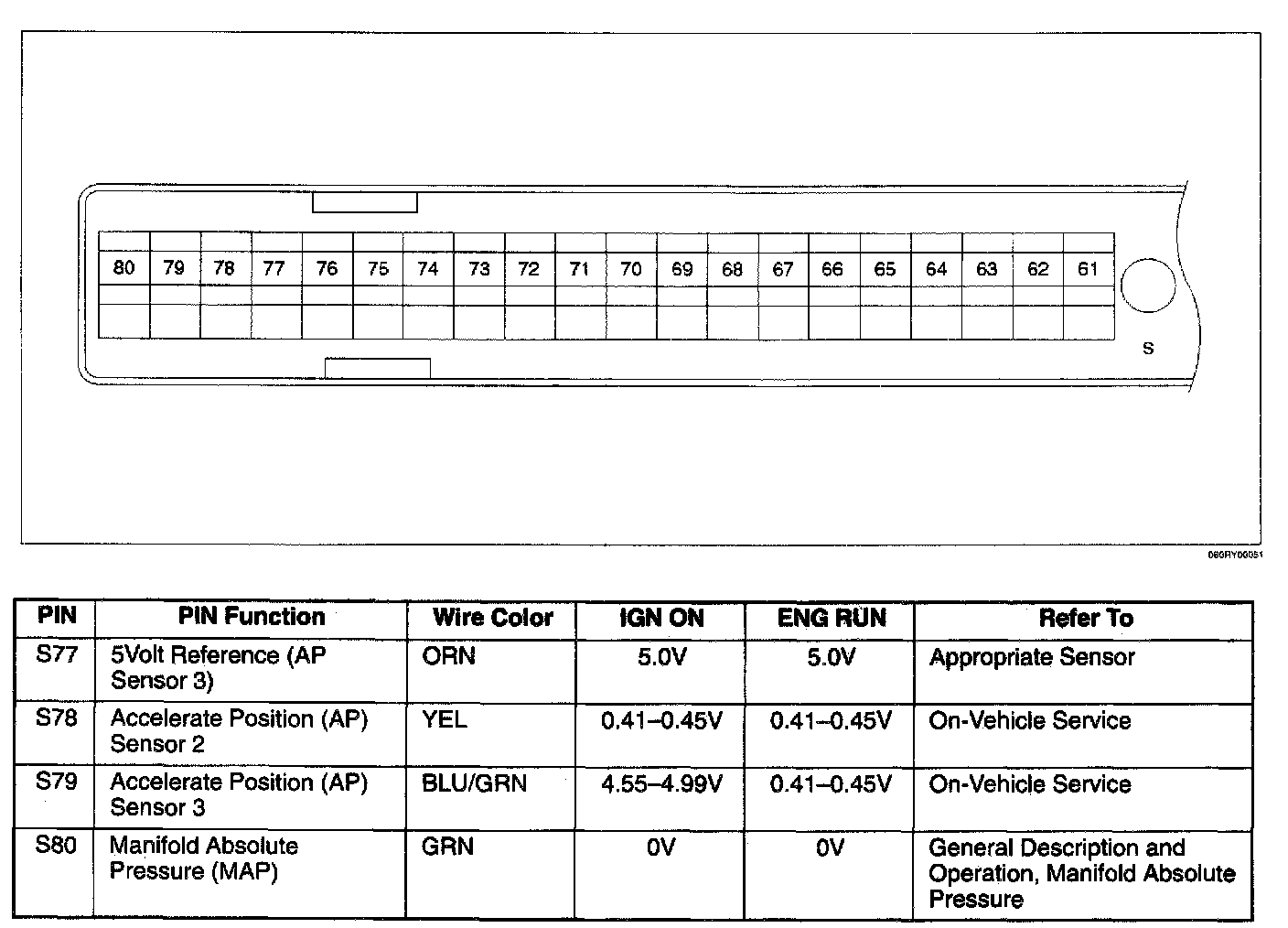

PCM Pinout Table, 80-Way Red Connector - Row "S77 - 80":
