Home >> Isuzu Truck >> 2001 >> Rodeo Sport 2WD V6-3.2L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

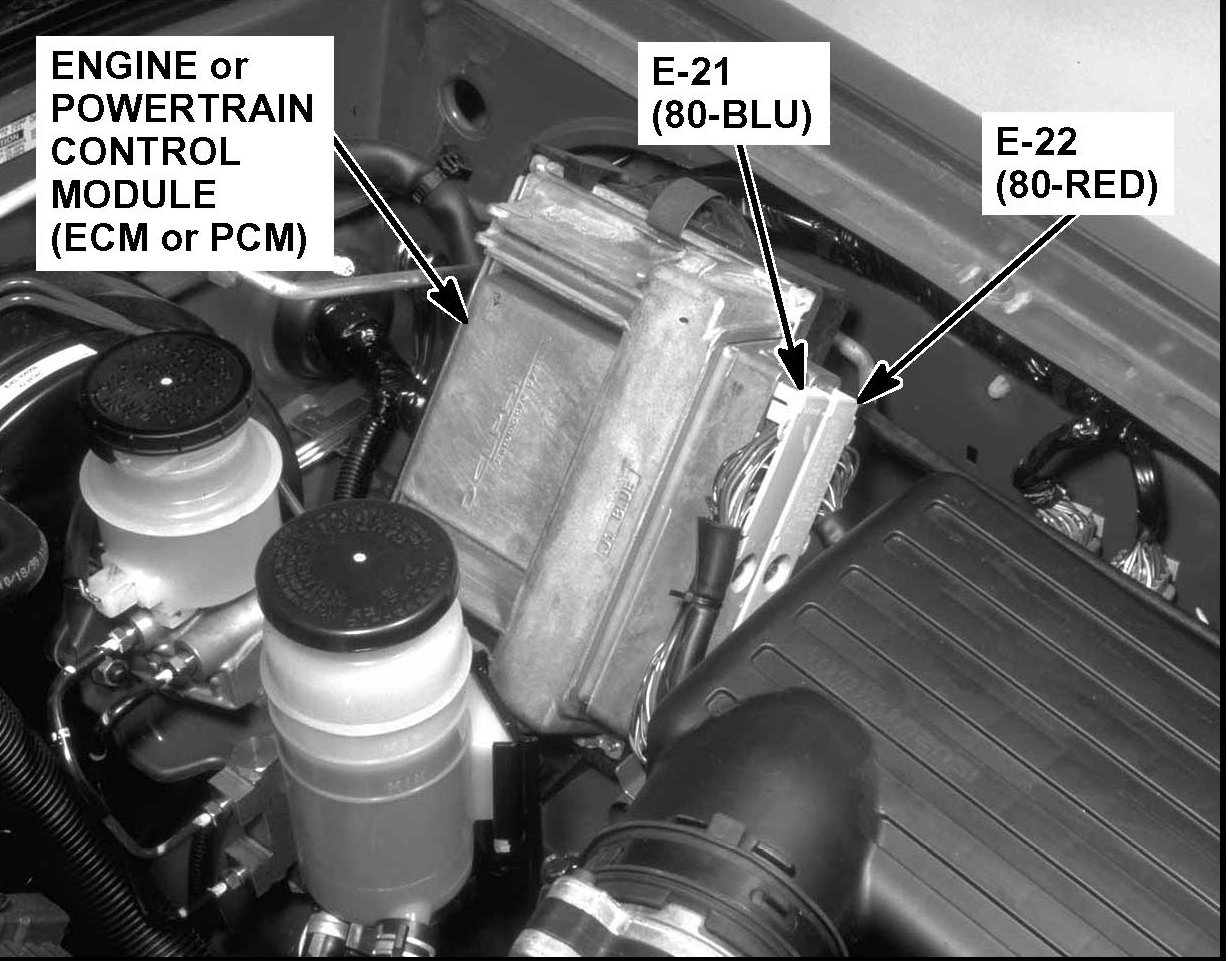

30. Left Side of Engine Compartment:

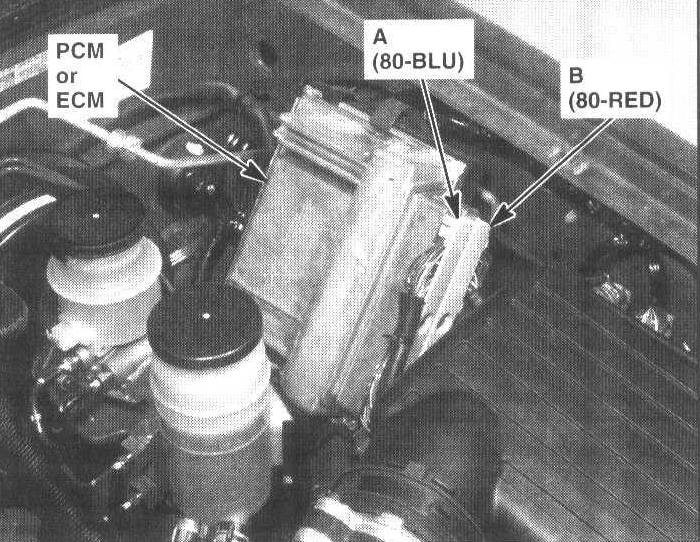

44. Left Side Of Engine Compartment:
