Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views
ECM (M/T) Or PCM (A/T) Connector A:

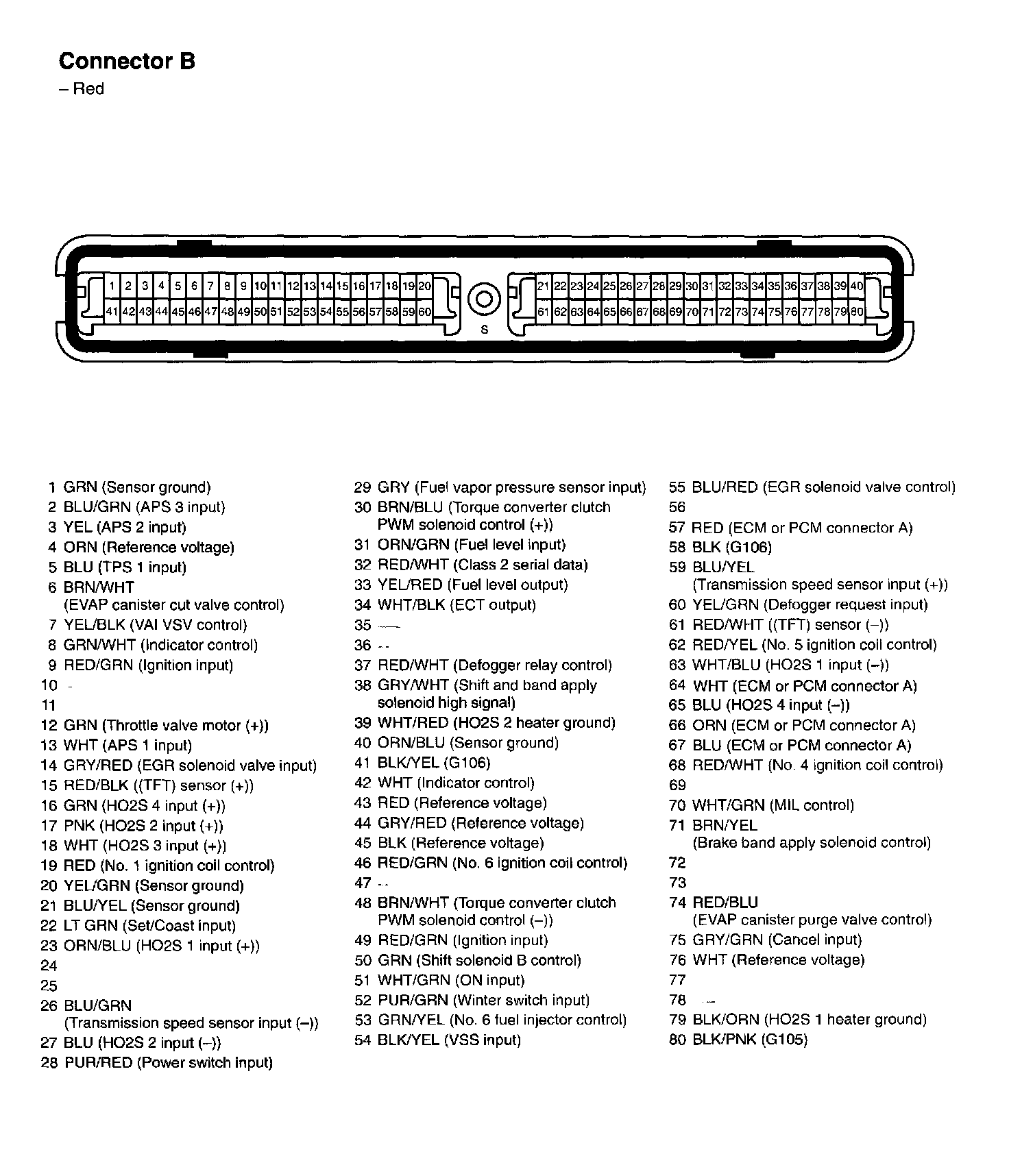

ECM (M/T) Or PCM (A/T) Connector B:
